XZU412L-TKMRS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )J05C,S05C..XZU412,420,422,430..DSL

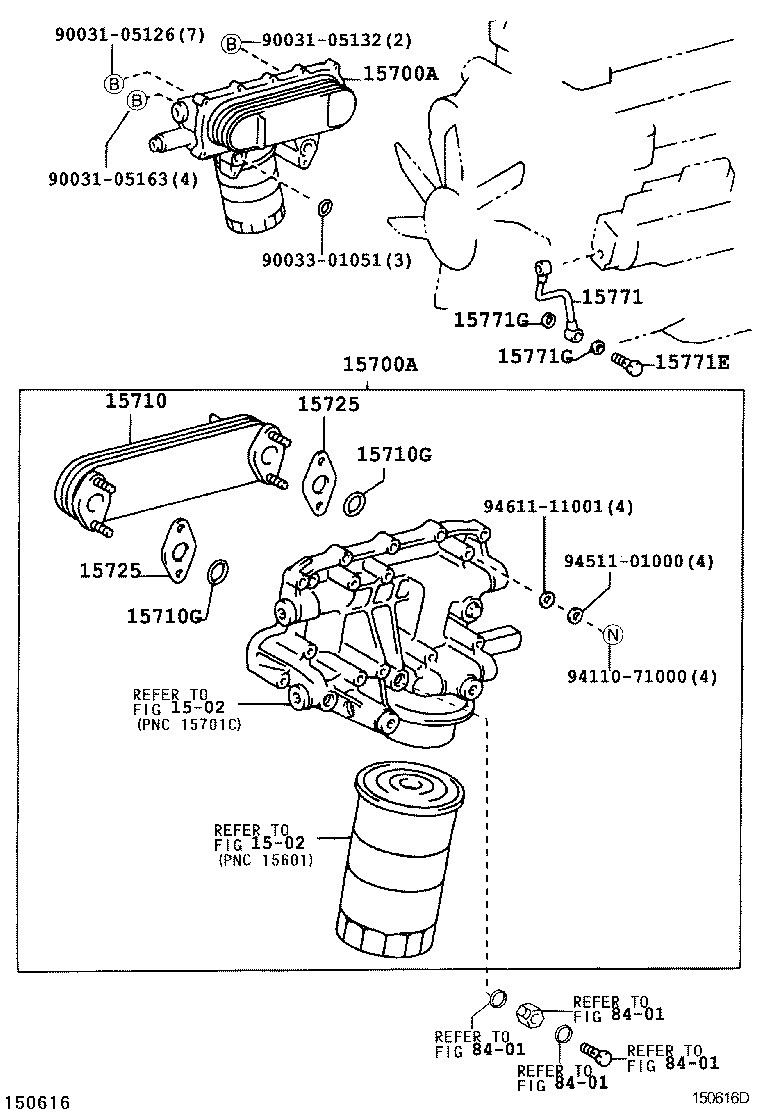

Click highlighted areas on diagram

diagram 1502 1502 15700A 15700A 15710 15710G 15710G 15725 15725 15771 15771E 15771G 15771G 8401 8401 8401 8401 9003105126 9003105132 9003105163 9003301051 9411071000 9451101000 9461111001
Part # Description Qty Price
15700A - COOLER ASSY, OIL W/BRACKET
15700-78060

S05C..XZU412,422..DSL

 1
15700A - COOLER ASSY, OIL W/BRACKET
15700-78060

S05C..XZU412,422..DSL

 1
15710 - COOLER ASSY, OIL
15710-89102

S05C..XZU412,422..DSL

 1
15710G - RING, O, NO.2
90033-01055

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 2
15710G - RING, O, NO.2
90033-01055

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 2
15725 - GASKET, OIL COOLER COVER
15781-89101

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 2
15725 - GASKET, OIL COOLER COVER
15781-89101

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 2
15771 - PIPE, OIL, NO.1
29601-78020

S05C..XZU412,422..5F

 1
15771E - BOLT, UNION(FOR OIL PIPE)
90034-01010

S05C..XZU412,422..5F

 1
15771G - GASKET
90202-14004

S05C..XZU412,422..5F

 2
15771G - GASKET
90202-14004

S05C..XZU412,422..5F

 2
Common parts
90031-05126
90031-05132
90031-05163
90033-01051
94110-71000
94511-01000
94611-11001
Linked diagrams
1502
8401
