XZU412L-TKMRS3 (2002)
Toyota Dyna
(0212- )J05C,S05C..XZU412,420,422,430..DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600B - RING, O, NO.1(FOR OIL FILTER) | ||||
| 90033-01052 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.2 |
4 | ||
| 90033-01053 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.1 |
2 | ||
| 15600B - RING, O, NO.1(FOR OIL FILTER) | ||||
| 90033-01052 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.2 |
4 | ||
| 90033-01053 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.1 |
2 | ||
| 15600B - RING, O, NO.1(FOR OIL FILTER) | ||||
| 90033-01052 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.2 |
4 | ||
| 90033-01053 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.1 |
2 | ||
| 15600B - RING, O, NO.1(FOR OIL FILTER) | ||||
| 90033-01052 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.2 |
4 | ||
| 90033-01053 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.1 |
2 | ||
| 15600B - RING, O, NO.1(FOR OIL FILTER) | ||||
| 90033-01052 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.2 |
4 | ||
| 90033-01053 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.1 |
2 | ||
| 15600B - RING, O, NO.1(FOR OIL FILTER) | ||||
| 90033-01052 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.2 |
4 | ||
| 90033-01053 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.1 |
2 | ||
| 15600C - RING, O, NO.2(FOR OIL FILTER) | ||||
| 96711-24020 |
S05C..XZU412,422..DSL |
3 | ||
| 15600C - RING, O, NO.2(FOR OIL FILTER) | ||||
| 96711-24020 |
S05C..XZU412,422..DSL |
3 | ||
| 15600C - RING, O, NO.2(FOR OIL FILTER) | ||||
| 96711-24020 |
S05C..XZU412,422..DSL |
3 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 15529-89106 |
S05C..XZU412,422..DSL NO.2 |
3 | ||
| 15529-89102 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.1 |
4 | ||
| 15529-89109 |
S05C..XZU412,422..DSL NO.3 |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 15529-89106 |
S05C..XZU412,422..DSL NO.2 |
3 | ||
| 15529-89102 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.1 |
4 | ||
| 15529-89109 |
S05C..XZU412,422..DSL NO.3 |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 15529-89106 |
S05C..XZU412,422..DSL NO.2 |
3 | ||
| 15529-89102 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.1 |
4 | ||
| 15529-89109 |
S05C..XZU412,422..DSL NO.3 |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 15529-89106 |
S05C..XZU412,422..DSL NO.2 |
3 | ||
| 15529-89102 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.1 |
4 | ||
| 15529-89109 |
S05C..XZU412,422..DSL NO.3 |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 15529-89106 |
S05C..XZU412,422..DSL NO.2 |
3 | ||
| 15529-89102 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.1 |
4 | ||
| 15529-89109 |
S05C..XZU412,422..DSL NO.3 |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 15529-89106 |
S05C..XZU412,422..DSL NO.2 |
3 | ||
| 15529-89102 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.1 |
4 | ||
| 15529-89109 |
S05C..XZU412,422..DSL NO.3 |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 15529-89106 |
S05C..XZU412,422..DSL NO.2 |
3 | ||
| 15529-89102 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.1 |
4 | ||
| 15529-89109 |
S05C..XZU412,422..DSL NO.3 |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 15529-89106 |
S05C..XZU412,422..DSL NO.2 |
3 | ||
| 15529-89102 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.1 |
4 | ||
| 15529-89109 |
S05C..XZU412,422..DSL NO.3 |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 15529-89106 |
S05C..XZU412,422..DSL NO.2 |
3 | ||
| 15529-89102 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.1 |
4 | ||
| 15529-89109 |
S05C..XZU412,422..DSL NO.3 |
2 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| 15532-89104 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| 15532-89103 |
S05C..XZU412,422..DSL NO.1 |
2 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| 15532-89104 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| 15532-89103 |
S05C..XZU412,422..DSL NO.1 |
2 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| 15532-89104 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| 15532-89103 |
S05C..XZU412,422..DSL NO.1 |
2 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15613-89105 |
S05C..XZU412,422..DSL |
1 | ||
| 15624 - VALVE, FILTER, NO.1 | ||||
| 15690-78010 |
S05C..XZU412,422..DSL |
3 | ||
| 15624 - VALVE, FILTER, NO.1 | ||||
| 15690-78010 |
S05C..XZU412,422..DSL |
3 | ||
| 15624 - VALVE, FILTER, NO.1 | ||||
| 15690-78010 |
S05C..XZU412,422..DSL |
3 | ||
| 15648 - PLUG, OIL FILTER DRAIN | ||||
| 15529-89104 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 15651 - BOLT(FOR OIL FILTER GUIDE) | ||||
| 15651-89101 |
S05C..XZU412,422..DSL |
1 | ||
| 15701C - COVER SUB-ASSY, OIL COOLER | ||||
| 15720-89102 |
S05C..XZU412,422..DSL |
1 | ||
| 15721 - COVER, OIL COOLER | ||||
| 15701-89103 |
S05C..XZU412,422..DSL |
1 | ||

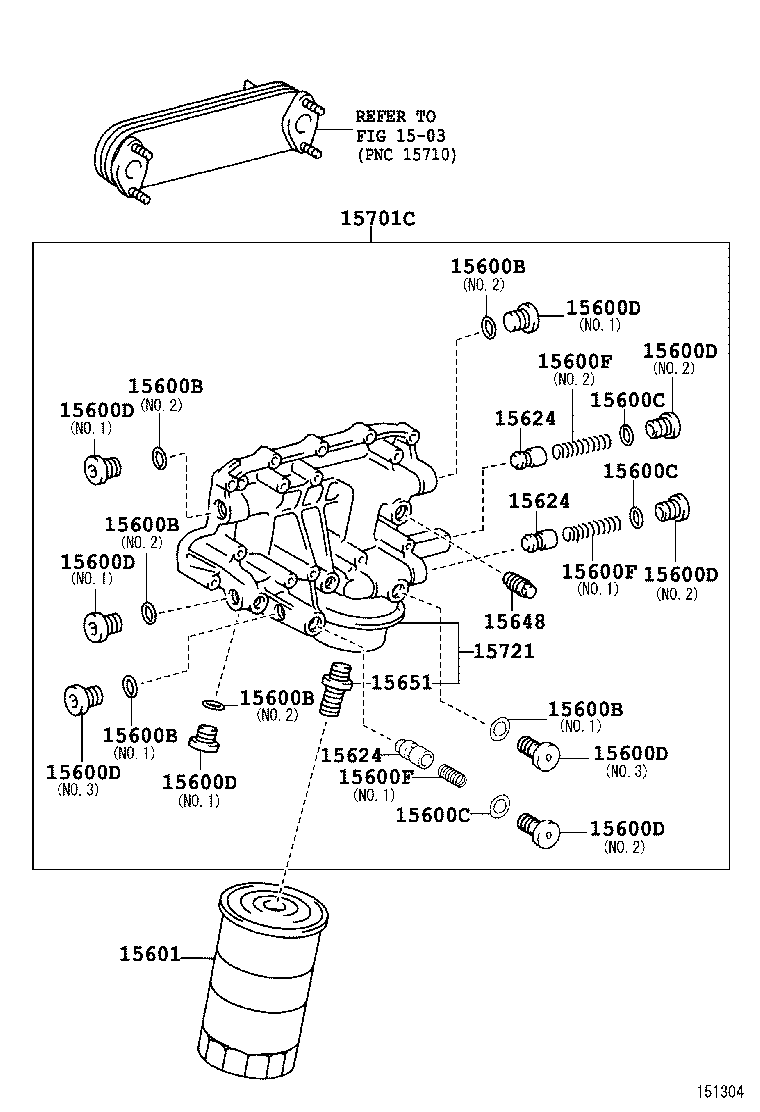

| Linked diagrams | ||||
| 1503 | ||||
