XZU412L-TKMRS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )S05C..XZU412,422..DSL

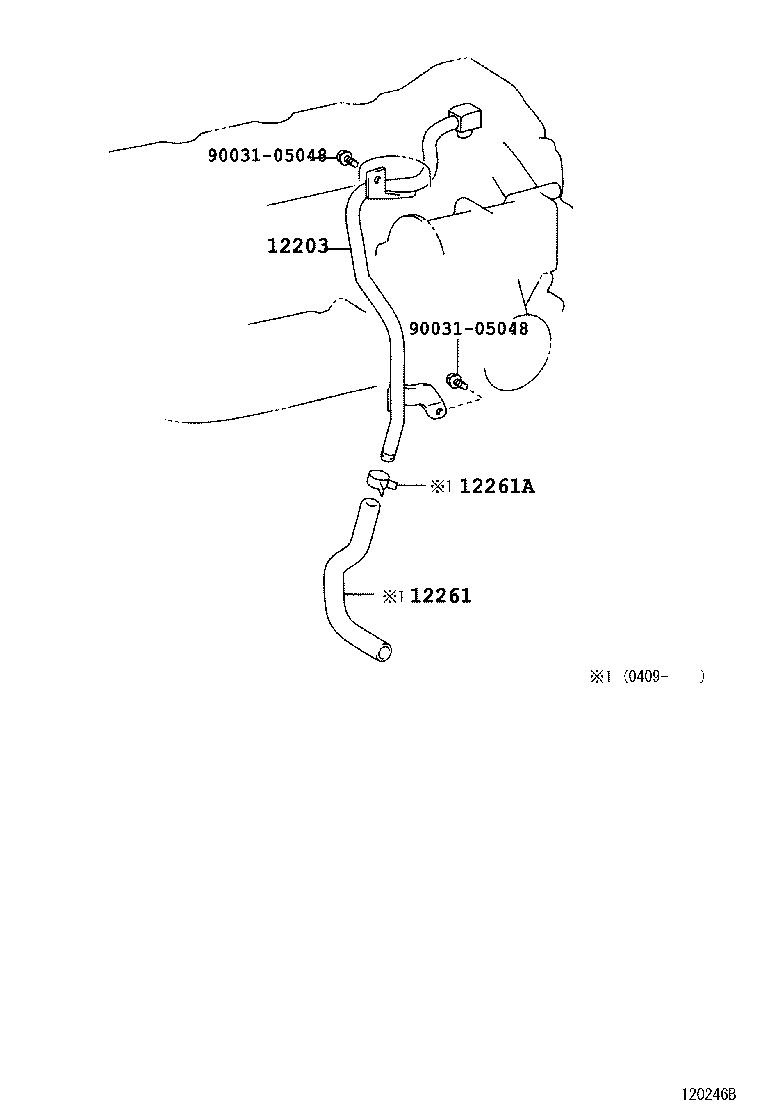

Click highlighted areas on diagram

diagram 12203 12261 12261A 9003105048 9003105048
Part # Description Qty Price
12203 - PIPE SUB-ASSY, VENTILATION
12203-78041

S05C..XZU412,422..DSL

 1
12261 - HOSE, VENTILATION
90034-46037

S05C..XZU412,422..DSL

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90034-67020

S05C..XZU412,422..DSL

 1
Common parts
90031-05048
