XZU412L-TKMRS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

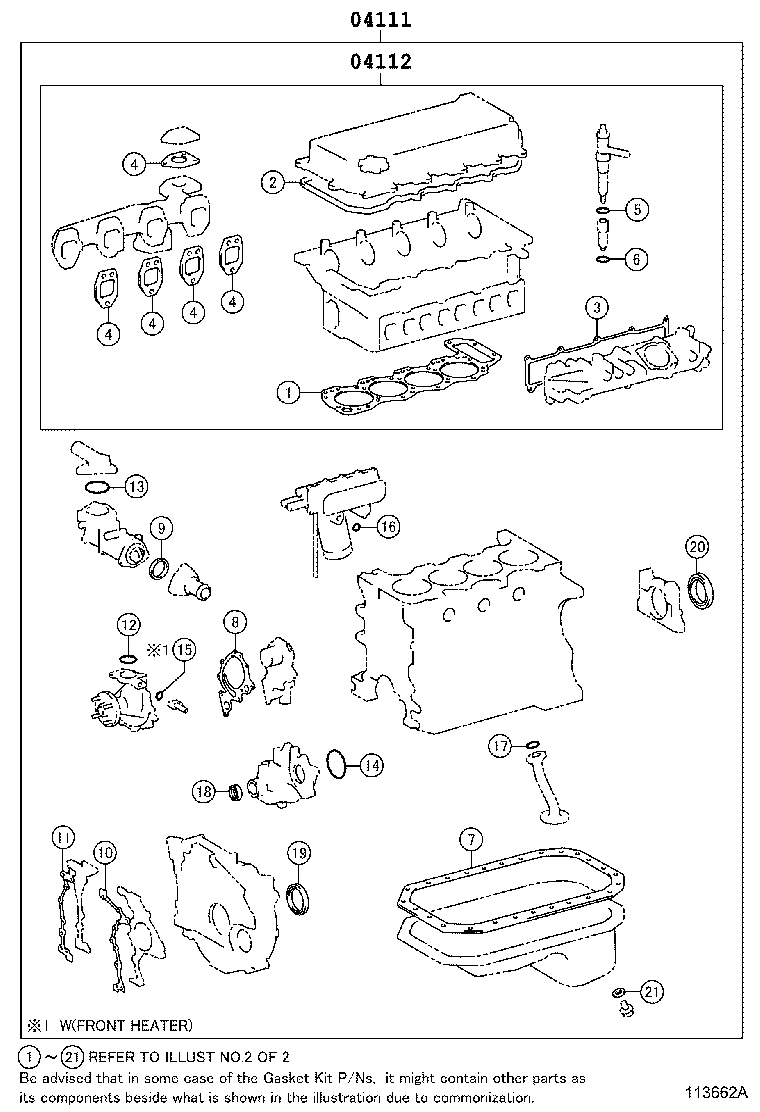

ILLUST NO. 1 OF 2(0212- )S05C..XZU412,422..DSL

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-80050

S05C..XZU412,422..DSL

W(FRONT HEATER & FAN CLUTCH) OR W(FRONT HEATER)

 1
04111-80060

S05C..XZU412,422..GEN..DSL

W(FAN CLUTCH)

 1
04111-78360

S05C..XZU412,422..DSL

 1
04111-80430

S05C..XZU412,422..DSL

 1
04111-80510

S05C..XZU412,422..DSL

W(FRONT HEATER & FAN CLUTCH) OR W(FRONT HEATER)

 1
04111-80550

S05C..XZU412,422..GEN..DSL

W(FAN CLUTCH)

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-80030

S05C..XZU412,422..DSL

W(FRONT HEATER & FAN CLUTCH) OR W(FRONT HEATER) OR W(FAN CLUTCH)

 1
04112-78130

S05C..XZU412,422..DSL

 1

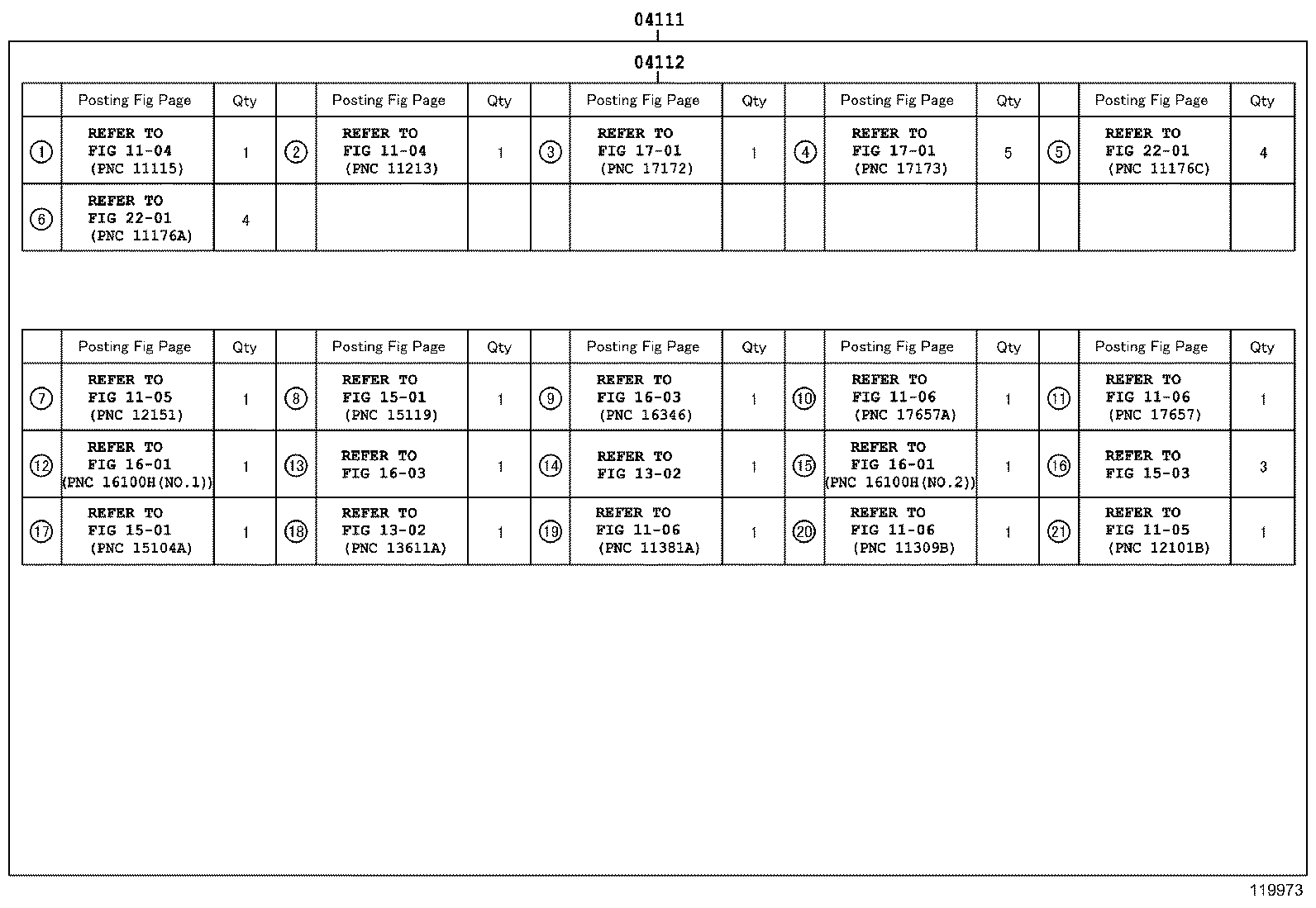

ILLUST NO. 2 OF 2(0212- )S05C..XZU412,422..DSL

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1105 1105 1106 1106 1106 1106 1302 1302 1501 1501 1503 1601 1601 1603 1603 1701 1701 2201 2201
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-80050

S05C..XZU412,422..DSL

W(FRONT HEATER & FAN CLUTCH) OR W(FRONT HEATER)

 1
04111-80060

S05C..XZU412,422..GEN..DSL

W(FAN CLUTCH)

 1
04111-78360

S05C..XZU412,422..DSL

 1
04111-80430

S05C..XZU412,422..DSL

 1
04111-80510

S05C..XZU412,422..DSL

W(FRONT HEATER & FAN CLUTCH) OR W(FRONT HEATER)

 1
04111-80550

S05C..XZU412,422..GEN..DSL

W(FAN CLUTCH)

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-80030

S05C..XZU412,422..DSL

W(FRONT HEATER & FAN CLUTCH) OR W(FRONT HEATER) OR W(FAN CLUTCH)

 1
04112-78130

S05C..XZU412,422..DSL

 1
Linked diagrams
1104
1105
1106
1302
1501
1503
1601
1603
1701
2201
