XZU412L-TKMMW3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0110-0610)55T

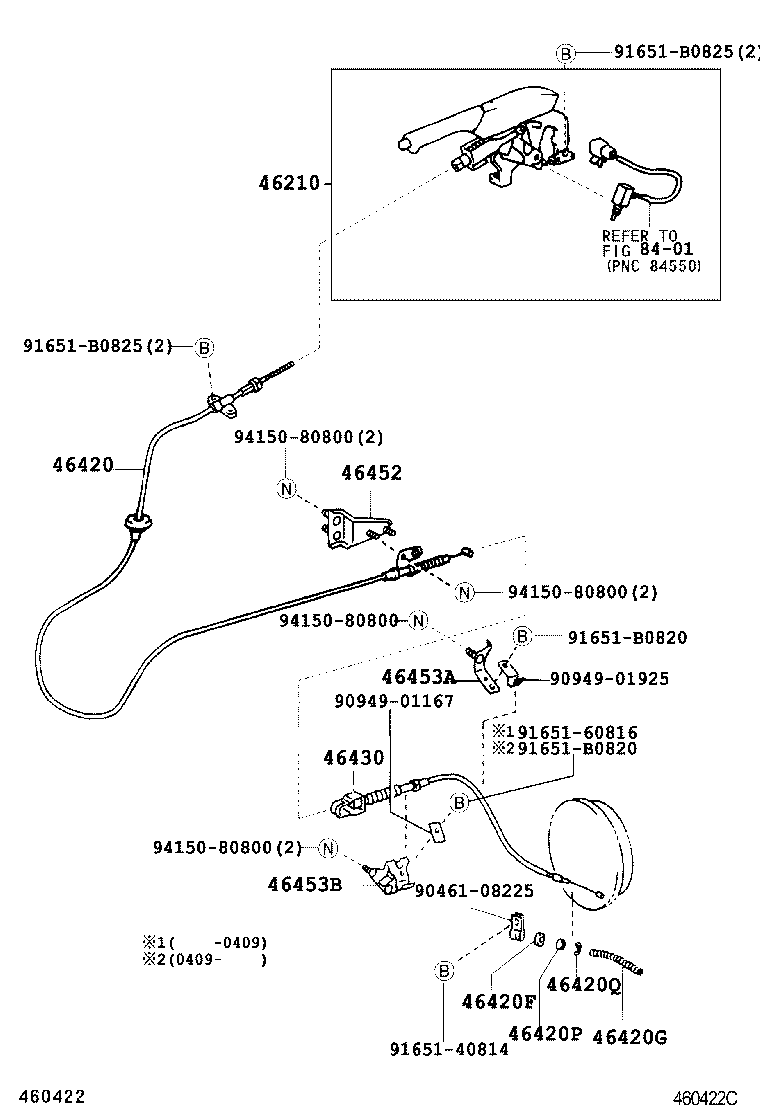

Click highlighted areas on diagram

diagram 46210 46420 46420F 46420G 46420P 46420Q 46430 46452 46453A 46453B 8401 9046108225 9094901167 9094901925 9165140814 9165160816 91651B0820 91651B0820 91651B0825 91651B0825 9415080800 9415080800 9415080800 9415080800
Part # Description Qty Price
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-37330

XZU412,414,422,424..LHD..5F

 1
46420F - SEAL, DUST(FOR PARKING BRAKE CABLE)
90303-10001

XZU404,412,414,424..55T

 1
46420G - SPRING(FOR PARKING CABLE INNER WIRE SET)
90501-14003

XZU404,412,414,424..55T

 1
46420P - SPACER, PARKING BRAKE
90560-08002

XZU404,412,414,424..55T

 1
46420Q - RING, E(FOR PARKING BRAKE CABLE)
96160-00700

XZU404,412,414,424..55T

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-37410

XZU404,412,414,424..55T

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46452-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37100

XZU404,412,422..5F;XZU414,424,434..ARL,GEN

 1
46453B - BRACKET, CABLE SUPPORT, NO.3
46453-37110

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
Common parts
90461-08225
90949-01167
90949-01925
91651-40814
91651-60816
91651-B0820
91651-B0825
94150-80800
Linked diagrams
8401

ILLUST NO. 1 OF 2(0110-0610)WU410,XZU412,414,422,424,434..65T,75T,85T..ARL,EUR,GCC,GEN ; (0304-0801)

Click highlighted areas on diagram

diagram 46210 46420 46430 46452 46453A 46453B 8401 9011906315 9094901167 9094901925 9165160816 91651B0820 91651B0820 91651B0825 91651B0825 9415080800 9415080800 9415080800 9415080800
Part # Description Qty Price
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-37330

XZU412,414,422,424..LHD..5F

 1
46420-37330

XZU412,414,422,424..LHD..5F

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-37410

XZU404,412,414,424..55T

 1
46430-37410

XZU404,412,414,424..55T

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46452-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
46452-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37100

XZU404,412,422..5F;XZU414,424,434..ARL,GEN

 1
46453-37100

XZU404,412,422..5F;XZU414,424,434..ARL,GEN

 1
46453B - BRACKET, CABLE SUPPORT, NO.3
46453-37110

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
46453-37110

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
Common parts
90119-06315
90949-01167
90949-01925
91651-60816
91651-B0820
91651-B0825
94150-80800
Linked diagrams
8401

ILLUST NO. 1 OF 2(0608- )DCR ; (0610- )WU41#,422..LHD ; (0610- )XZU413,423..5F..75T ; (0701

Click highlighted areas on diagram

diagram 46210 46420 46430 46453A 46453A 8401 9011906315 91651B0820 91651B0825 91651B0825 9415010801 9415010801 9415010801 9616001200
Part # Description Qty Price
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-37330

XZU412,414,422,424..LHD..5F

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-37410

XZU404,412,414,424..55T

 1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37100

XZU404,412,422..5F;XZU414,424,434..ARL,GEN

 1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37100

XZU404,412,422..5F;XZU414,424,434..ARL,GEN

 1
Common parts
90119-06315
91651-B0820
91651-B0825
94150-10801
96160-01200
Linked diagrams
8401
