XZU412L-TKMMW3 (2002)
Toyota Dyna

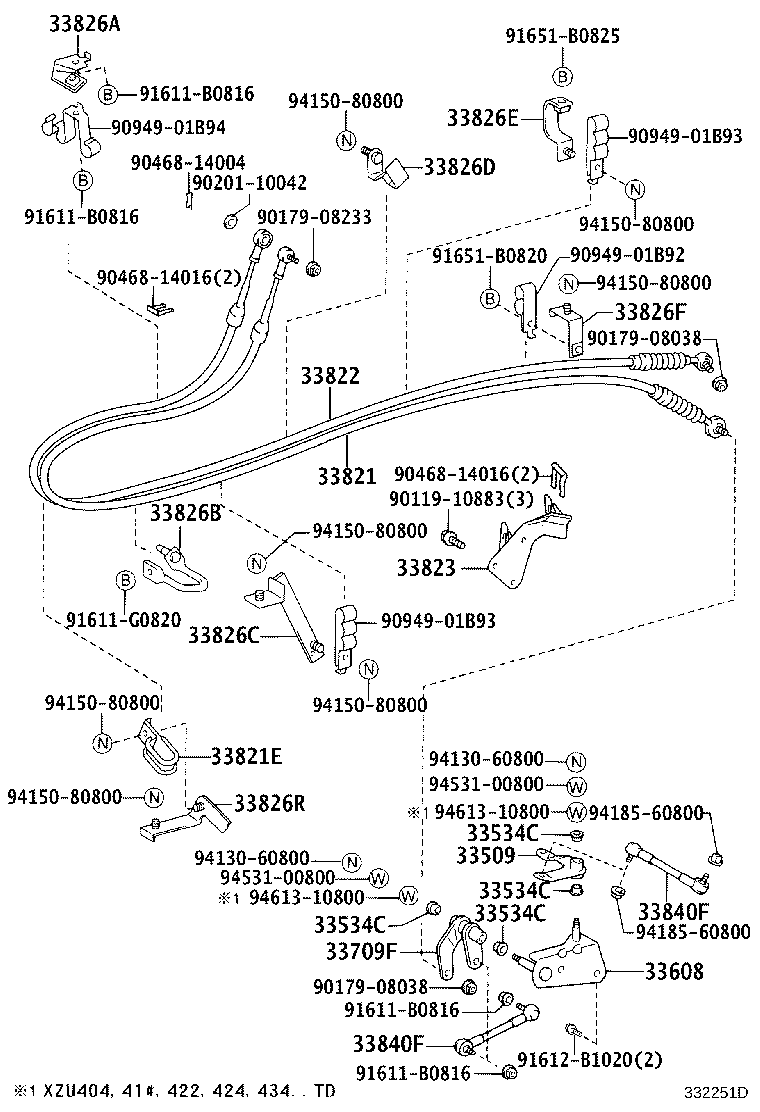

ILLUST NO. 2 OF 2(0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU412,422..LHD..5F ; (0401- )XZU412
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-37040 |
XZU412,422..5F..TD;XZU404,414,424,434..ARL,GEN |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-13007 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
4 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-13007 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
4 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-13007 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
4 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-13007 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
4 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-37020 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
1 | ||
| 33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT) | ||||
| 33709-37060 |
XZU412,422..5F..TD;XZU404,414,424,434..ARL,GEN |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-3V311 |
XZU41#,422,424,434..LHD |
1 | ||
| 33820-3V312 |
XZU41#,422,424,434..LHD |
1 | ||
| 33820-3V313 |
XZU412,414,422,424..LHD..5F |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 87124-37090 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33820-3V322 |
XZU412,414,422,424..LHD..5F |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37550 |
XZU412,422..5F..TD;XZU404,414,424,434..ARL,GEN |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37680 |
WU410,XZU412,414,422,424..LHD..5F |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37790 |
WU410,XZU412,414,422,424..LHD..5F |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-37620 |
WU410,XZU412,414,422,424..LHD..5F |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37670 |
XZU412..55T,65T,85T;XZU412..LHD..5F..75T;WU410,XZU422..LHD..5F;XZU404,414,424,434..ARL,GEN |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33826-37540 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33826-37810 |
XZU412,422..5F..TD;XZU404,414,424,434..ARL,GEN |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37800 |
WU410,XZU412,414,422,424..LHD..5F |
1 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-37050 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
2 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-37050 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
2 | ||
| Common parts | ||||
| 90119-10883 | ||||
| 90179-08038 | ||||
| 90179-08233 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01B92 | ||||
| 90949-01B93 | ||||
| 90949-01B94 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94130-60800 | ||||
| 94150-80800 | ||||
| 94185-60800 | ||||
| 94531-00800 | ||||
| 94613-10800 | ||||
ILLUST NO. 1 OF 2(0110-0701)BU410,420,WU410,XZU412,414,422,424,434..LHD ; (0401-0802)XZU412,422..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-37091 |
WU410,XZU412,414,422,424..LHD..5F |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-37052 |
WU410,XZU412,414,422,424..LHD..5F |
1 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 90386-12056 |
WU410,XZU412,414,422,424..LHD..5F |
4 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33577-37060 |
WU410,XZU412,414,422,424..LHD..5F |
4 | ||
| 33534 - BELLCRANK, SELECTING | ||||
| 33534-37081 |
WU410,XZU412,414,422,424..LHD..5F |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
WU410,XZU412,414,422,424..LHD..5F |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
WU410,XZU412,414,422,424..LHD..5F |
1 | ||
| 33586A - STOPPER, CONTROL LEVER (FOR FLOOR SHIFT) | ||||
| 33586-37010 |
WU410,XZU412,414,422,424..LHD..5F |
1 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
WU410,XZU412,414,422,424..LHD..5F |
2 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
WU410,XZU412,414,422,424..LHD..5F |
2 | ||
| 33602D - COLLAR (FOR SELECT LEVER) | ||||
| 90387-08063 |
WU410,XZU412,414,422,424..LHD..5F |
1 | ||
| 33602E - SPRING, TORSION (FOR SELECT LEVER) | ||||
| 90949-03034 |
WU410,XZU412,414,422,424..LHD..5F |
1 | ||
| 33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT) | ||||
| 33602-37030 |
WU410,XZU412,414,422,424..LHD..5F |
1 | ||
| Common parts | ||||
| 90119-08190 | ||||
| 90179-08054 | ||||
| 90387-08159 | ||||
| 90389-11006 | ||||
| 91111-50840 | ||||
| 91111-50860 | ||||
| 91611-B0614 | ||||
| 94613-10601 | ||||
| 96151-01700 | ||||
| Linked diagrams | ||||
| 5855 | ||||
ILLUST NO. 1 OF 2(0212-0610)WU410..RHD..GEN ; (0412-0610)XZU404,412,414,422,424,434..RHD ; (0412-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08190 | ||||
| Linked diagrams | ||||
| 5855 | ||||
