XZU404R-TKMMWQ3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0110-0610)EUR,GCC,GEN,SA,TAIW ; (0610-0708)BU410,420,XZU415,425,435 ; (0610- )W

Click highlighted areas on diagram

TUBE

diagram 2202 2202 2302 2302 2302 77205 77205 77205 77205 77206C 77242A 77242A 77242A 77242A 77243A 77243B 77243B 77251B 77252A 77278A 77278A 77278A 77278A 77278B 77281 77286D 77286D 77286D 9003401010 9003401010 9003461051 9003461051 9003461051 9003461051 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908830 9011908830 9011908830 9011908830 9020214004 9020214004 9046718008 9046718008 9046718008 9046718008 9046718008 9046718008 9046718008 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9613251300 9613251300 9613251300 9613251300 9613251300 9613251300
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37360

XZU404

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37360

XZU404

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37360

XZU404

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37360

XZU404

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37350

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12026

XZU404

*H,L=260,ID=12

 1
95332-12036

XZU404..ARL

*H,L=360,ID=12

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12026

XZU404

*H,L=260,ID=12

 1
95332-12036

XZU404..ARL

*H,L=360,ID=12

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12026

XZU404

*H,L=260,ID=12

 1
95332-12036

XZU404..ARL

*H,L=360,ID=12

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12026

XZU404

*H,L=260,ID=12

 1
95332-12036

XZU404..ARL

*H,L=360,ID=12

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

*H,L=200,ID=12

 1
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
95332-12024

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

*H,L=240,ID=12

 2
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
95332-12024

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

*H,L=240,ID=12

 2
77251B - TUBE, FUEL MAIN
77252-37650

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
77252A - TUBE, FUEL MAIN, NO.2
77252-37660

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

XZU404

*H,L=280,ID=7.6

 1
95333-08040

XZU404..ARL

*H,L=380,ID=7.6

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

XZU404

*H,L=280,ID=7.6

 1
95333-08040

XZU404..ARL

*H,L=380,ID=7.6

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

XZU404

*H,L=280,ID=7.6

 1
95333-08040

XZU404..ARL

*H,L=380,ID=7.6

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

XZU404

*H,L=280,ID=7.6

 1
95333-08040

XZU404..ARL

*H,L=380,ID=7.6

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

*H,L=200,ID=7.6

 1
Common parts
90034-01010
90034-61051
90119-08676
90119-08830
90202-14004
90467-18008
94130-00802
96132-51300
Linked diagrams
2202
2302

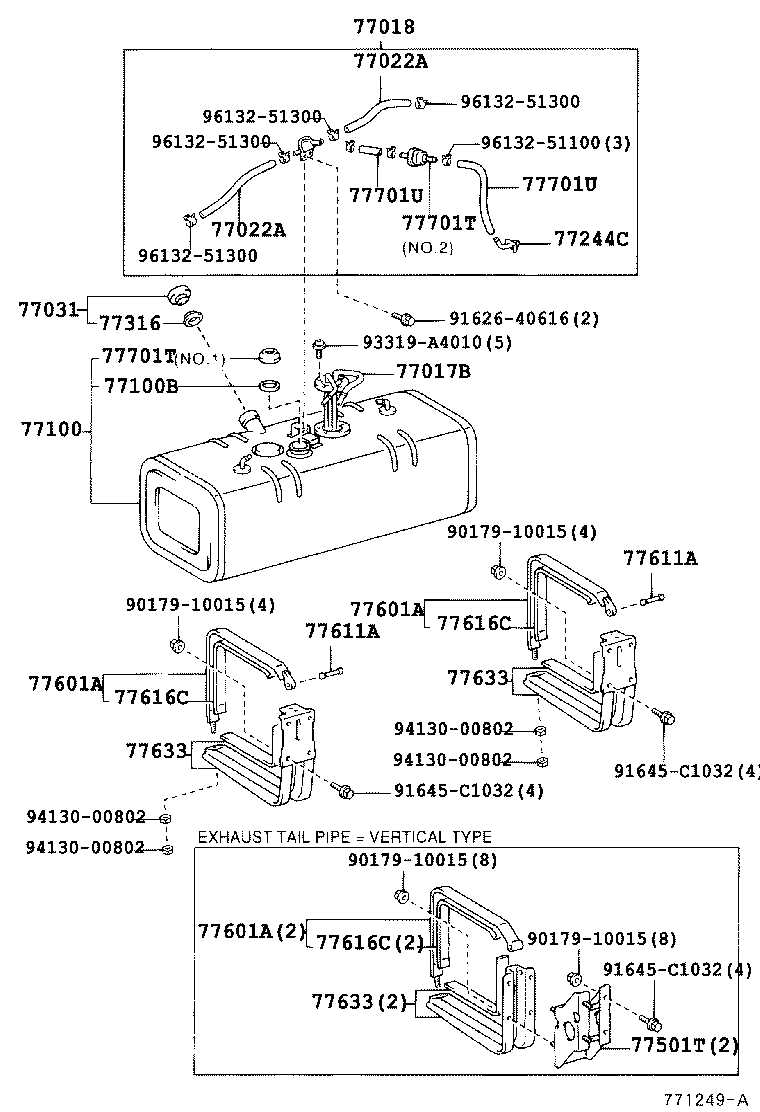

ILLUST NO. 1 OF 2(0212- )XZU404..ARL

Click highlighted areas on diagram

TANK

diagram 77017B 77018 77022A 77022A 77031 77100 77100B 77244C 77316 77501T 77601A 77601A 77601A 77611A 77611A 77616C 77616C 77616C 77633 77633 77633 77701T 77701T 77701U 77701U 9017910015 9017910015 9017910015 9017910015 9162640616 91645C1032 91645C1032 91645C1032 93319A4010 9413000802 9413000802 9413000802 9413000802 9613251100 9613251300 9613251300 9613251300 9613251300
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37010

XZU414..GEN;WU410,XZU404,412,422,424..5F..(ARL,GCC,GEN)

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37170

XZU404,414,424,434..ARL

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

*H,L=280,ID=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

*H,L=280,ID=7.6

 2
77031 - CAP ASSY, FUEL TANK
77310-60100

XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN)

 1
77100 - TANK ASSY, FUEL
77001-37431

XZU404..ARL

 1
77001-37430

XZU404..ARL

 1
77001-37432

XZU404..ARL

 1
77100B - GASKET(FOR FUEL TANK)
90430-37001

XZU404,414,424,434..ARL

 1
77244C - JOINT, FUEL TUBE, NO.2
77244-37010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
77316 - GASKET, FUEL TANK CAP
77316-12050

XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN)

 1
77501T - BRACKET SUB-ASSY, FUEL TANK
77501-37211

XZU404,414,424,434..ARL

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140

XZU404,414,424,434..ARL

EXHAUST TAIL PIPE=VERTICAL TYPE

 2
77601-36150

XZU404,414,424,434..ARL

EXHAUST TAIL PIPE=REAR

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140

XZU404,414,424,434..ARL

EXHAUST TAIL PIPE=VERTICAL TYPE

 2
77601-36150

XZU404,414,424,434..ARL

EXHAUST TAIL PIPE=REAR

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140

XZU404,414,424,434..ARL

EXHAUST TAIL PIPE=VERTICAL TYPE

 2
77601-36150

XZU404,414,424,434..ARL

EXHAUST TAIL PIPE=REAR

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
77633 - STAY, FUEL TANK
77501-37080

XZU404,414,424,434..ARL

EXHAUST TAIL PIPE=REAR

 2
77633-37100

XZU404,414,424,434..ARL

EXHAUST TAIL PIPE=VERTICAL TYPE

 2
77633 - STAY, FUEL TANK
77501-37080

XZU404,414,424,434..ARL

EXHAUST TAIL PIPE=REAR

 2
77633-37100

XZU404,414,424,434..ARL

EXHAUST TAIL PIPE=VERTICAL TYPE

 2
77633 - STAY, FUEL TANK
77501-37080

XZU404,414,424,434..ARL

EXHAUST TAIL PIPE=REAR

 2
77633-37100

XZU404,414,424,434..ARL

EXHAUST TAIL PIPE=VERTICAL TYPE

 2
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10067

XZU404,414,424,434..ARL

NO.2

 1
90917-10041

XZU404,414,424,434..ARL

NO.1

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10067

XZU404,414,424,434..ARL

NO.2

 1
90917-10041

XZU404,414,424,434..ARL

NO.1

 1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040

XZU404,414,424,434..ARL

*H,L=320

 1
95333-06010

XZU404,414,424,434..ARL

*H,L=70

 1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040

XZU404,414,424,434..ARL

*H,L=320

 1
95333-06010

XZU404,414,424,434..ARL

*H,L=70

 1
Common parts
90179-10015
91626-40616
91645-C1032
93319-A4010
94130-00802
96132-51100
96132-51300

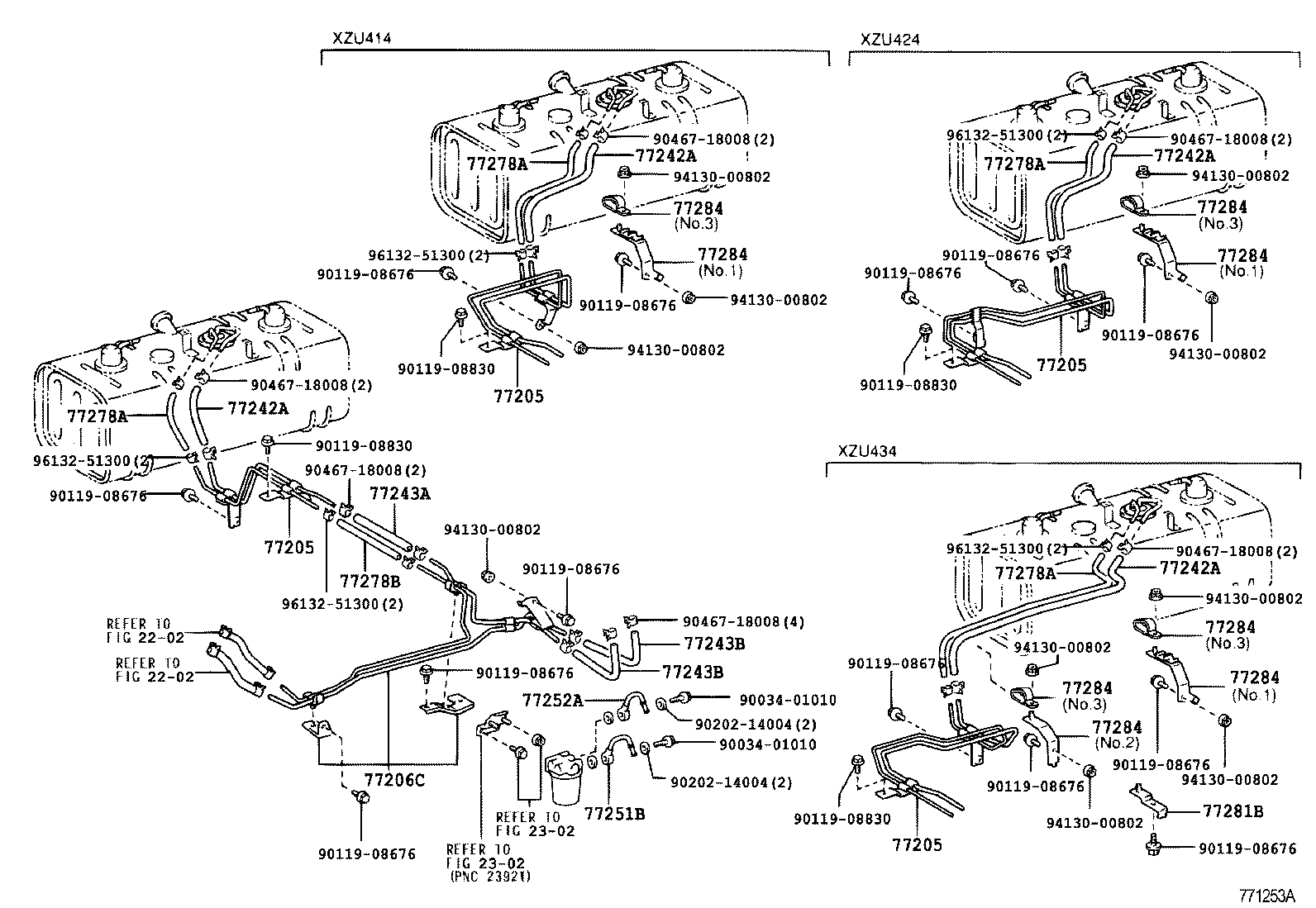

ILLUST NO. 2 OF 2(0212- )ARL

Click highlighted areas on diagram

TUBE

diagram 2202 2202 2302 2302 77205 77205 77205 77205 77206C 77242A 77242A 77242A 77242A 77243A 77243B 77243B 77251B 77252A 77278A 77278A 77278A 77278A 77278B 77281B 77284 77284 77284 77284 77284 77284 77284 77284 9003401010 9003401010 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908830 9011908830 9011908830 9011908830 9020214004 9020214004 9046718008 9046718008 9046718008 9046718008 9046718008 9046718008 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9613251300 9613251300 9613251300 9613251300 9613251300
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37360

XZU404

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37360

XZU404

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37360

XZU404

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37360

XZU404

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37350

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12026

XZU404

*H,L=260,ID=12

 1
95332-12036

XZU404..ARL

*H,L=360,ID=12

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12026

XZU404

*H,L=260,ID=12

 1
95332-12036

XZU404..ARL

*H,L=360,ID=12

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12026

XZU404

*H,L=260,ID=12

 1
95332-12036

XZU404..ARL

*H,L=360,ID=12

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12026

XZU404

*H,L=260,ID=12

 1
95332-12036

XZU404..ARL

*H,L=360,ID=12

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

*H,L=200,ID=12

 1
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
95332-12024

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

*H,L=240,ID=12

 2
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
95332-12024

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

*H,L=240,ID=12

 2
77251B - TUBE, FUEL MAIN
77252-37650

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
77252A - TUBE, FUEL MAIN, NO.2
77252-37660

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

XZU404

*H,L=280,ID=7.6

 1
95333-08040

XZU404..ARL

*H,L=380,ID=7.6

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

XZU404

*H,L=280,ID=7.6

 1
95333-08040

XZU404..ARL

*H,L=380,ID=7.6

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

XZU404

*H,L=280,ID=7.6

 1
95333-08040

XZU404..ARL

*H,L=380,ID=7.6

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

XZU404

*H,L=280,ID=7.6

 1
95333-08040

XZU404..ARL

*H,L=380,ID=7.6

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

*H,L=200,ID=7.6

 1
Common parts
90034-01010
90119-08676
90119-08830
90202-14004
90467-18008
94130-00802
96132-51300
Linked diagrams
2202
2302
