XZU404R-TKMMW3 (2001)
Toyota Dyna

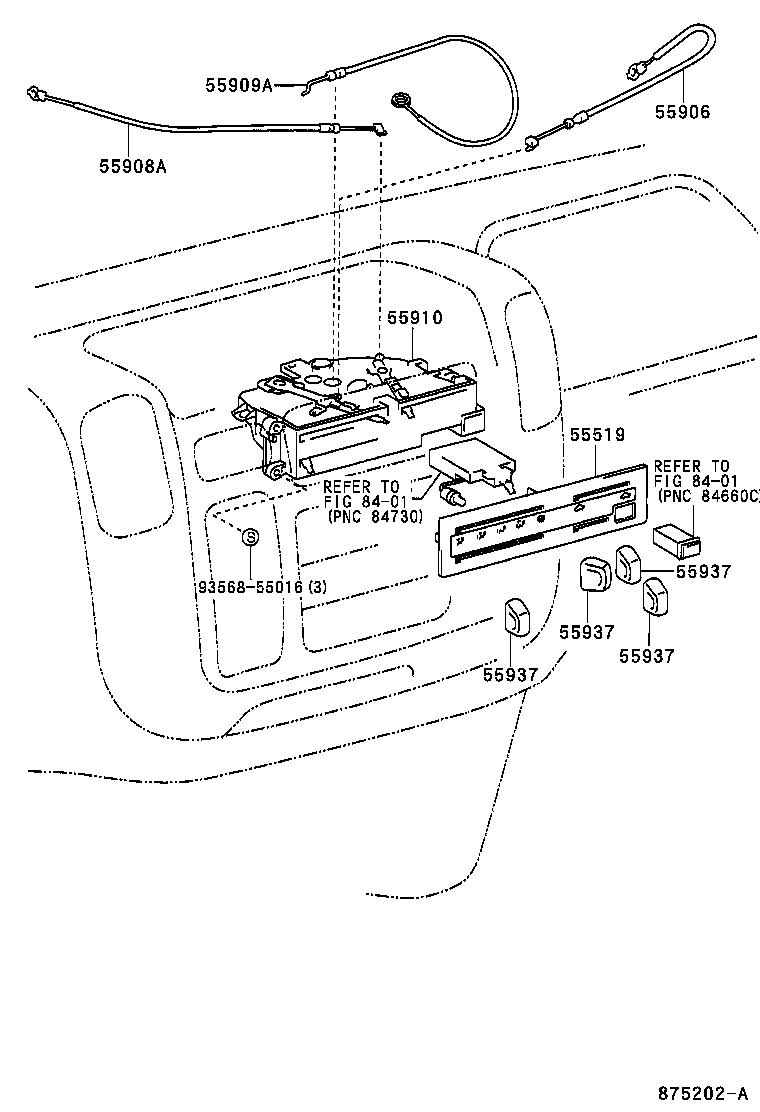

ILLUST NO. 1 OF 2(0110- )RHD
CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-37080 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) W/O(AIR CONDITIONER) |
1 | ||
| 55519-37070 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) W(AIR CONDITIONER) |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55906-37060 |
BU410,420,WU410,420,XZU404,412,414,415,420,422,424,425,43#..DCR,DSL,TD |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-37040 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-37050 |
WU410,420,XZU404,412,414,420,422,424,430,434..RHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-37061 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) W(HEATER) |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-89115 |
BU410,420,WU410,420,XZU404,412,414,415,420,422,424,425,43#..DCR,DSL,TD |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-89115 |
BU410,420,WU410,420,XZU404,412,414,415,420,422,424,425,43#..DCR,DSL,TD |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-89115 |
BU410,420,WU410,420,XZU404,412,414,415,420,422,424,425,43#..DCR,DSL,TD |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-89115 |
BU410,420,WU410,420,XZU404,412,414,415,420,422,424,425,43#..DCR,DSL,TD |
4 | ||
| Common parts | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

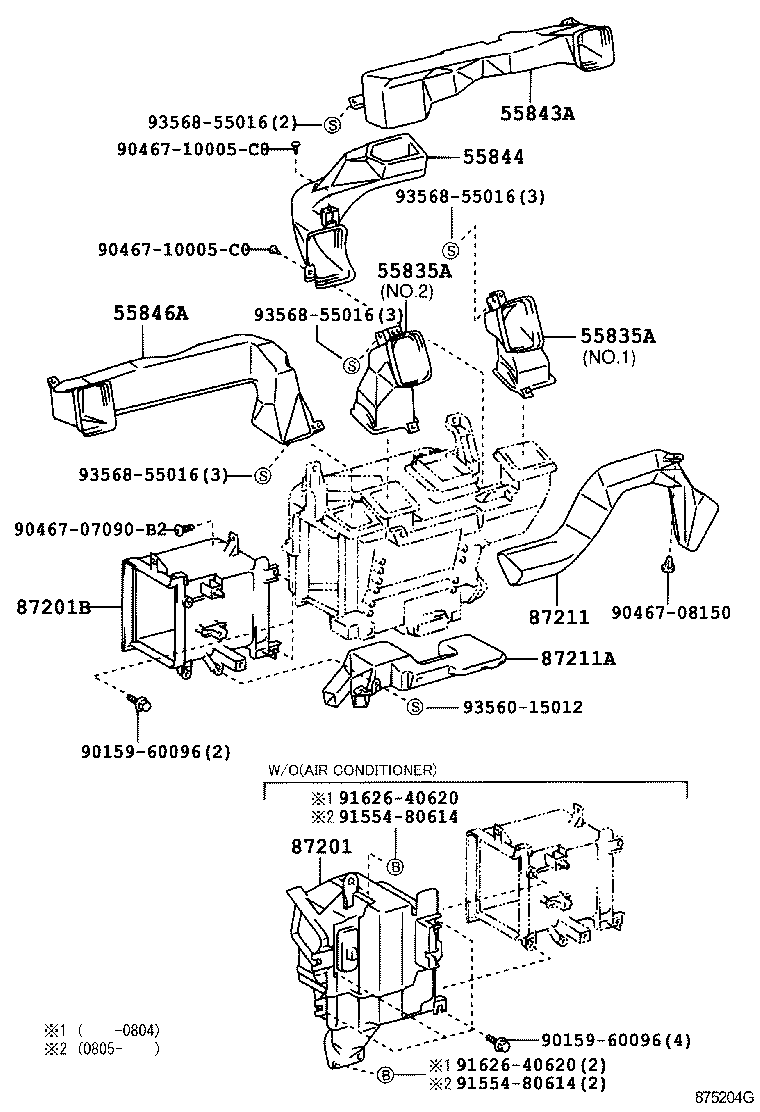

ILLUST NO. 2 OF 2(0110- )RHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-37020 |
WU410,420,XZU404,41#,42#,43#..RHD NO.2 |
1 | ||
| 55835-37010 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) NO.1 |
1 | ||
| 55835-37090 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) NO.2 |
1 | ||
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-37020 |
WU410,420,XZU404,41#,42#,43#..RHD NO.2 |
1 | ||
| 55835-37010 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) NO.1 |
1 | ||
| 55835-37090 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) NO.2 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-37110 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-37030 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 55844-37031 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-37080 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-37120 |
WU410,420,XZU404,412,414,420,422,424,430,434..RHD |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-37030 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87212-37010 |
WU410,420,XZU404,412,414,420,422,424,430,434..RHD |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87213-37020 |
WU410,420,XZU404,412,414,420,422,424,430,434..RHD |
1 | ||
| Common parts | ||||
| 90159-60096 | ||||
| 90467-07090B2 | ||||
| 90467-08150 | ||||
| 90467-10005C0 | ||||
| 91554-80614 | ||||
| 91626-40620 | ||||
| 93560-15012 | ||||
| 93568-55016 | ||||
