XZU404R-TKMMW3 (2001)

Toyota Dyna

Production Oct 2001 - Oct 2006

Engine S05C

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0110- )XZU423..GEN ; (0110- )BU410,420,WU41#,42#,XZU404,412,413,414,420,422,

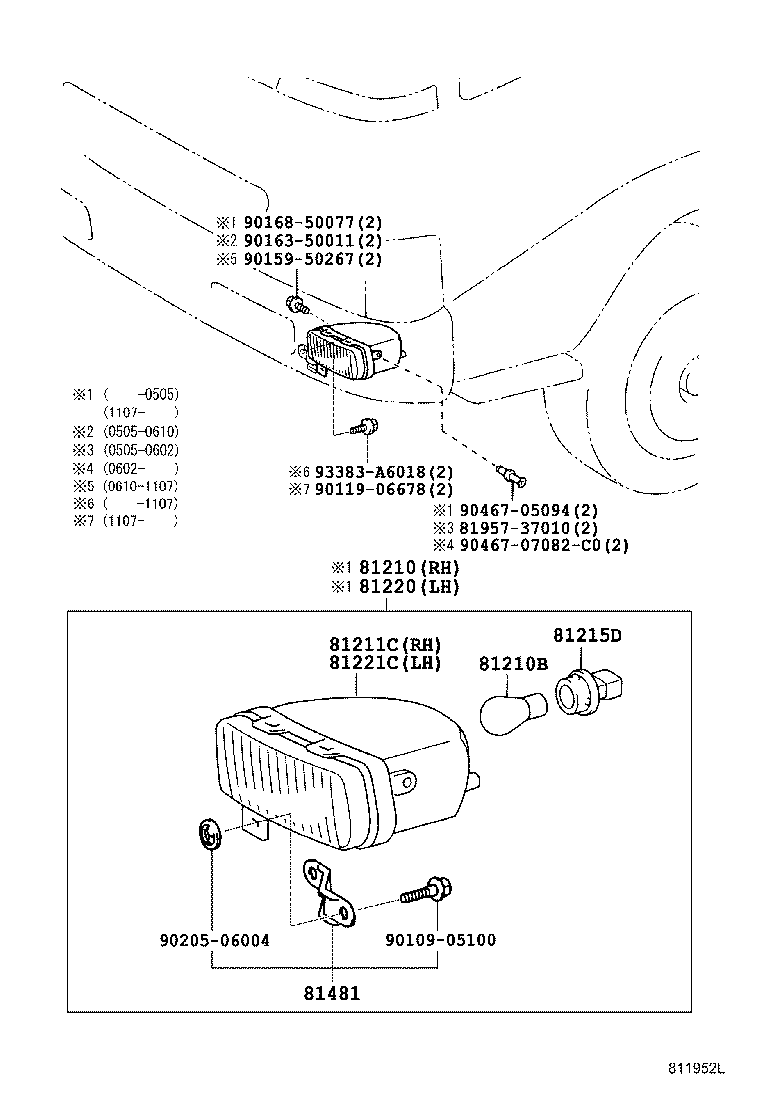

Click highlighted areas on diagram

24V 25W

diagram

Part #	Description	Period	Qty	Price
81210 - LAMP ASSY, FOG
81210-37060	WU410,XZU404,41#,422,424..GCC,GEN LENS:CLEAR	10/2001 - 05/2005	1
81210B - BULB, FOG LAMP
99134-11250	WU410,XZU404,412,414,422,424..5F..(GCC,GEN) 24V 25W	10/2001 - 10/2006	2
81211C - LAMP UNIT, FOG LAMP, RH
81211-37040	WU410,XZU404,41#,422,424..GCC,GEN LENS:CLEAR	10/2001 - 05/2005	1
81211-37041	WU410,XZU404,412,414,422,424..5F..(GCC,GEN) LENS:CLEAR	05/2005 - 10/2006	1
81215D - FOG LAMP SOCKET PLUG ASSY
90075-99092	WU410,XZU404,412,414,422,424..5F..(GCC,GEN)	10/2001 - 10/2006	2
81220 - LAMP ASSY, FOG, LH
81220-37030	WU410,XZU404,41#,422,424..GCC,GEN LENS:CLEAR	10/2001 - 05/2005	1
81221C - LAMP UNIT, FOG LAMP, LH
81221-37010	WU410,XZU404,41#,422,424..GCC,GEN LENS:CLEAR	10/2001 - 05/2005	1
81221-37011	WU410,XZU404,412,414,422,424..5F..(GCC,GEN) LENS:CLEAR	05/2005 - 10/2006	1
81481 - BRACKET, FOG LAMP
81481-37020	WU410,XZU404,412,414,422,424..5F..(GCC,GEN)	10/2001 - 10/2006	2
Common parts
81957-37010
90109-05100
90119-06678
90159-50267
90163-50011
90168-50077
90205-06004
90467-05094
90467-07082C0
93383-A6018
