XZU404R-TKMMW3 (2001)
Toyota Dyna

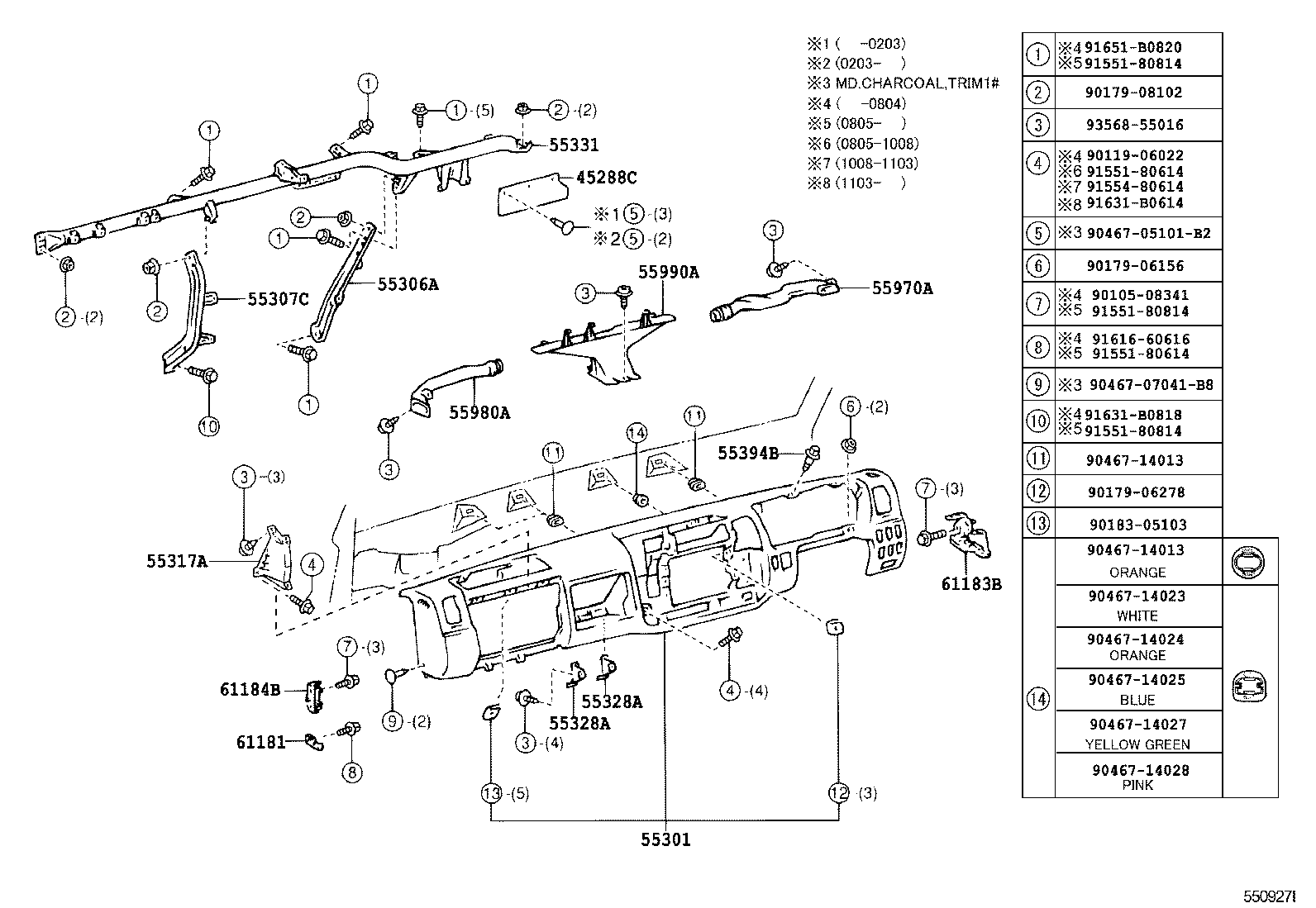

ILLUST NO. 1 OF 2(0110- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45288C - PLATE, STEERING COLUMN COVER | ||||
| 45288-37010 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-37041B0 |
WU410,420,XZU404,41#,42#,43#..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 55301-37042B0 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-37031 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-37070 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-37010 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-37020 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
2 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-37020 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-37055 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 55330-37056 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-37010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 55970A - DUCT ASSY, SIDE DEFROSTER, RH | ||||
| 55971-37050 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 55980A - DUCT ASSY, SIDE DEFROSTER, LH | ||||
| 55972-37050 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 55990A - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-37052 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 61181 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61181-37040 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 61183B - BRACKET, INSTRUMENT PANEL SIDE, NO.2 RH | ||||
| 55707-37010 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 61184B - BRACKET, INSTRUMENT PANEL SIDE, NO.2 LH | ||||
| 61184-37010 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90105-08341 | ||||
| 90119-06022 | ||||
| 90179-06156 | ||||
| 90179-06278 | ||||
| 90179-08102 | ||||
| 90183-05103 | ||||
| 90467-05101B2 | ||||
| 90467-07041B8 | ||||
| 90467-14013 | ||||
| 90467-14023 | ||||
| 90467-14024 | ||||
| 90467-14025 | ||||
| 90467-14027 | ||||
| 90467-14028 | ||||
| 91551-80614 | ||||
| 91551-80814 | ||||
| 91554-80614 | ||||
| 91616-60616 | ||||
| 91631-B0614 | ||||
| 91631-B0818 | ||||
| 91651-B0820 | ||||
| 93568-55016 | ||||

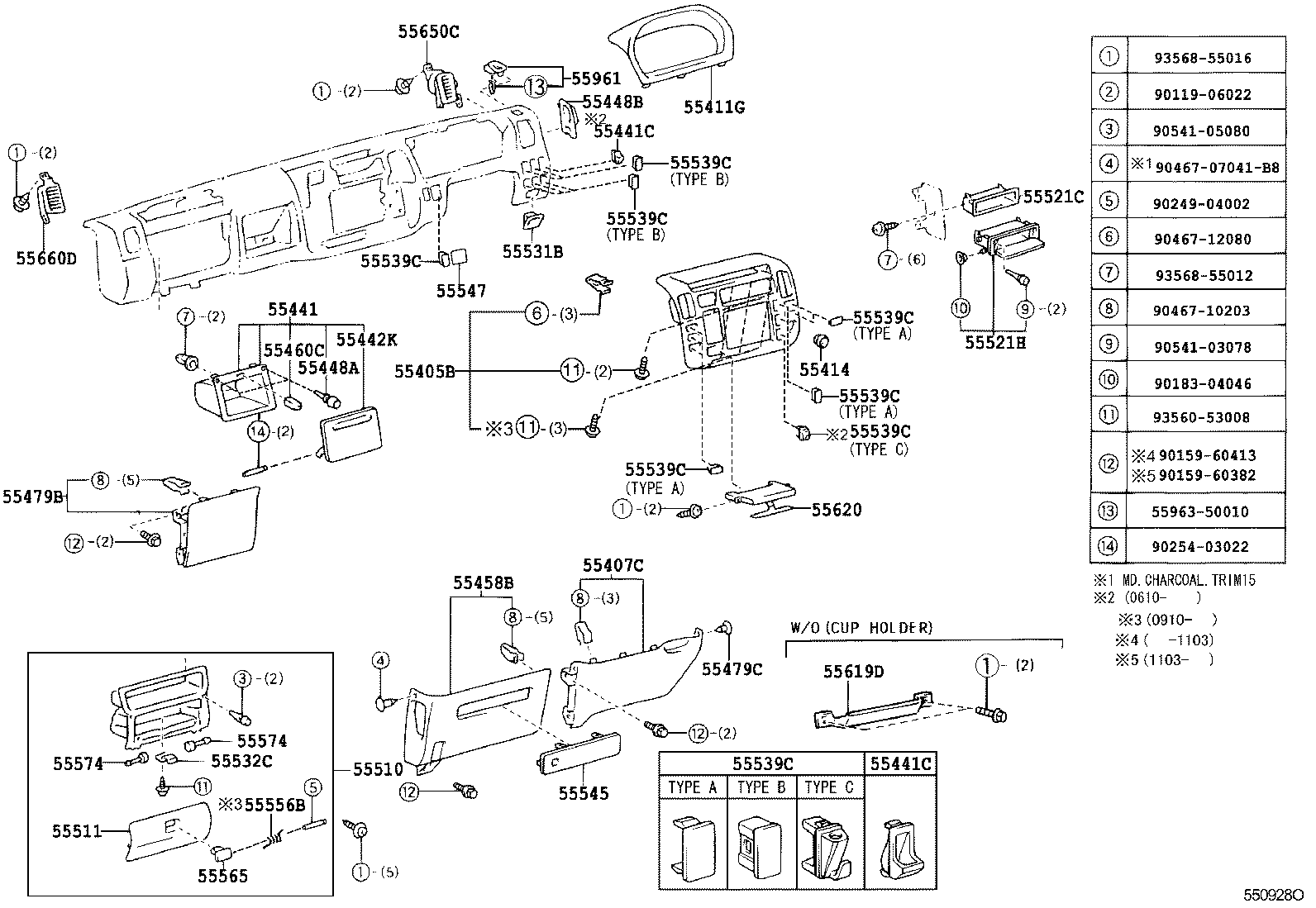

ILLUST NO. 2 OF 2(0110- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-37140 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 55405-37150 |
XZU404,414,424..RHD..GEN WOOD GRAIN |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55320-37010B0 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-37030B0 |
XZU404,414,424..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 55411-25020B0 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-37020 |
BU410,420,WU410,420,XZU404,412,414,415,420,422,424,425,43#..DCR,DSL,TD |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-37010B0 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 55442K - DOOR, INSTRUMENT PANEL BOX | ||||
| 55442-37010B0 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-22070 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
2 | ||
| 55448B - COVER, OIL RESERVOIR TANK, RH | ||||
| 55448-37020B0 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-37010B0 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 55460C - LOCK ASSY, INSTRUMENT PANEL BOX | ||||
| 55460-37010 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55340-37010B0 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07041B8 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-37010B0 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 55511 - DOOR, GLOVE COMPARTMENT | ||||
| 55511-37020B0 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-89102 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 55521H - COVER ASSY, STEREO OPENING | ||||
| 55520-35040 |
XZU404,414,424..RHD..GEN |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55531-37010B0 |
XZU404,414,424,434..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 55532C - STOPPER, GLOVE DOOR | ||||
| 55532-37030 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
WU410,XZU412,422..GCC;XZU404,414,424..RHD..GEN TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-32010C0 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
WU410,XZU412,422..GCC;XZU404,414,424..RHD..GEN TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-32010C0 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
WU410,XZU412,422..GCC;XZU404,414,424..RHD..GEN TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-32010C0 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
WU410,XZU412,422..GCC;XZU404,414,424..RHD..GEN TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-32010C0 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
WU410,XZU412,422..GCC;XZU404,414,424..RHD..GEN TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-32010C0 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
WU410,XZU412,422..GCC;XZU404,414,424..RHD..GEN TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-32010C0 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
WU410,XZU412,422..GCC;XZU404,414,424..RHD..GEN TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-32010C0 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
WU410,XZU412,422..GCC;XZU404,414,424..RHD..GEN TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-32010C0 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-37010B0 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-37010B0 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-37030B0 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-38010 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN |
2 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-38010 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN |
2 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-37021 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 55650C - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37030B0 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 55660D - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55660-37010B0 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-37030B0 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 55963-50010 | ||||
| 90119-06022 | ||||
| 90159-60382 | ||||
| 90159-60413 | ||||
| 90183-04046 | ||||
| 90249-04002 | ||||
| 90254-03022 | ||||
| 90467-07041B8 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90541-03078 | ||||
| 90541-05080 | ||||
| 93560-53008 | ||||
| 93568-55012 | ||||
| 93568-55016 | ||||
