XZU404R-TKMMW3 (2001)
Toyota Dyna
ILLUST NO. 2 OF 3(0110-0610)RHD ; (0610-0801)SA ; (0801- )WU410,XZU420,430..75T,85T..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44011 - PISTON SUB-ASSY, POWER | ||||
| 44011-37180 |
XZU404,412,414,424..RHD..55T |
1 | ||
| 44015 - SHAFT SUB-ASSY, SECTOR | ||||
| 44015-37110 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20006 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) NO.2 |
1 | ||
| 90029-20047 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) NO.1 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20006 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) NO.2 |
1 | ||
| 90029-20047 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) NO.1 |
1 | ||
| 44101L - SEAL, DUST(FOR POWER PISTON SUB-ASSY) | ||||
| 90029-20708 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-37160 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20061 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-21023 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-01515 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
2 | ||
| 44108C - COVER SUB-ASSY, SECTOR | ||||
| 44108-37160 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20006 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 44108F - SEAL, DUST(FOR SECTOR COVER) | ||||
| 90029-21023 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-37010 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 44167 - COVER, SECTOR SHAFT DUST | ||||
| 44167-37010 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 44168 - COVER, WORM SHAFT DUST | ||||
| 44168-25010 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 90029-02302 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90029-01001 | ||||
| 90029-34002 | ||||
| 94115-51200 | ||||
| 94531-01200 | ||||
| 96711-35042 | ||||

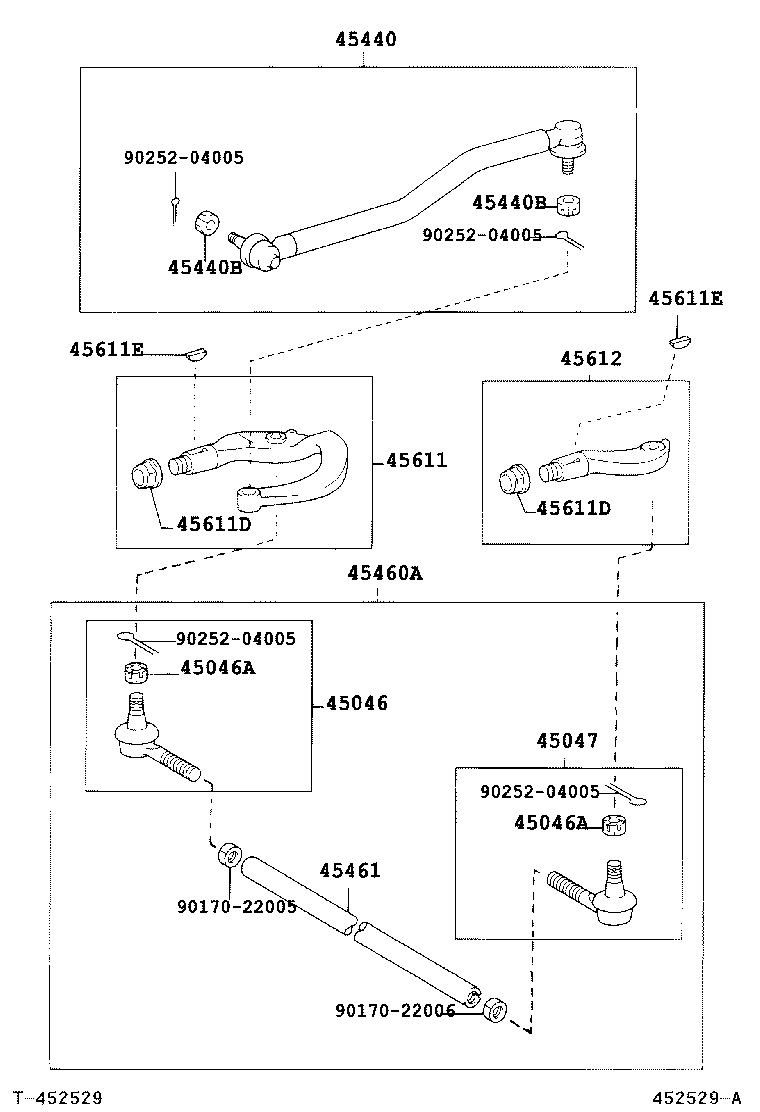

ILLUST NO. 3 OF 3(0110- )RHD..55T..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39426 |
XZU404,412,414,424..55T |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
XZU404,412,414,424..55T |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
XZU404,412,414,424..55T |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39266 |
XZU404,412,414,424..55T |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-39236 |
XZU404,412,414,424..RHD..55T |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
XZU404,412,414,424..55T |
2 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
XZU404,412,414,424..55T |
2 | ||
| 45460A - ROD ASSY, TIE | ||||
| 45460-39546 |
XZU404,412,414,424..55T..GEN |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-37080 |
XZU404,412,414,424..55T..GEN |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-39135 |
XZU404,412,414,424..RHD..55T |
1 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90178-26002 |
XZU404,412,414,424..55T |
2 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90178-26002 |
XZU404,412,414,424..55T |
2 | ||
| 45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM) | ||||
| 90280-07004 |
XZU404,412,414,424..55T |
2 | ||
| 45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM) | ||||
| 90280-07004 |
XZU404,412,414,424..55T |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-39255 |
XZU404,412,414,424..RHD..55T |
1 | ||
| Common parts | ||||
| 90170-22005 | ||||
| 90170-22006 | ||||
| 90252-04005 | ||||
ILLUST NO. 1 OF 3(0110-0610)RHD ; (0610-0801)SA ; (0801- )WU410,XZU420,430..75T,85T..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-37180 |
XZU404,412,414,424..RHD..55T |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45302-37010 |
WU410,420,XZU404,412,414,420,422,424,430,434..RHD |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37160 |
XZU404,412,414,424..RHD..55T |
1 | ||
| Common parts | ||||
| 90031-16061 | ||||
| 90105-14002 | ||||
| 90170-30001 | ||||
| 90204-30040 | ||||
| 90901-01004 | ||||
| 94130-01401 | ||||
| 94130-01601 | ||||
| 94531-01400 | ||||
| 94531-01600 | ||||
ILLUST NO. 1 OF 3(0110-0610)LHD ; (0610- )DCR,TD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-37180 |
XZU404,412,414,424..RHD..55T |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45302-37010 |
WU410,420,XZU404,412,414,420,422,424,430,434..RHD |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37160 |
XZU404,412,414,424..RHD..55T |
1 | ||
| Common parts | ||||
| 90031-16061 | ||||
| 90105-14002 | ||||
| 90170-30001 | ||||
| 90204-30040 | ||||
| 90901-01004 | ||||
| 94130-01401 | ||||
| 94130-01601 | ||||
| 94531-01400 | ||||
| 94531-01600 | ||||
