XZU404R-TKMMW3 (2001)

Toyota Dyna

Production Oct 2001 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110- )S05C..XZU404,414,424,434

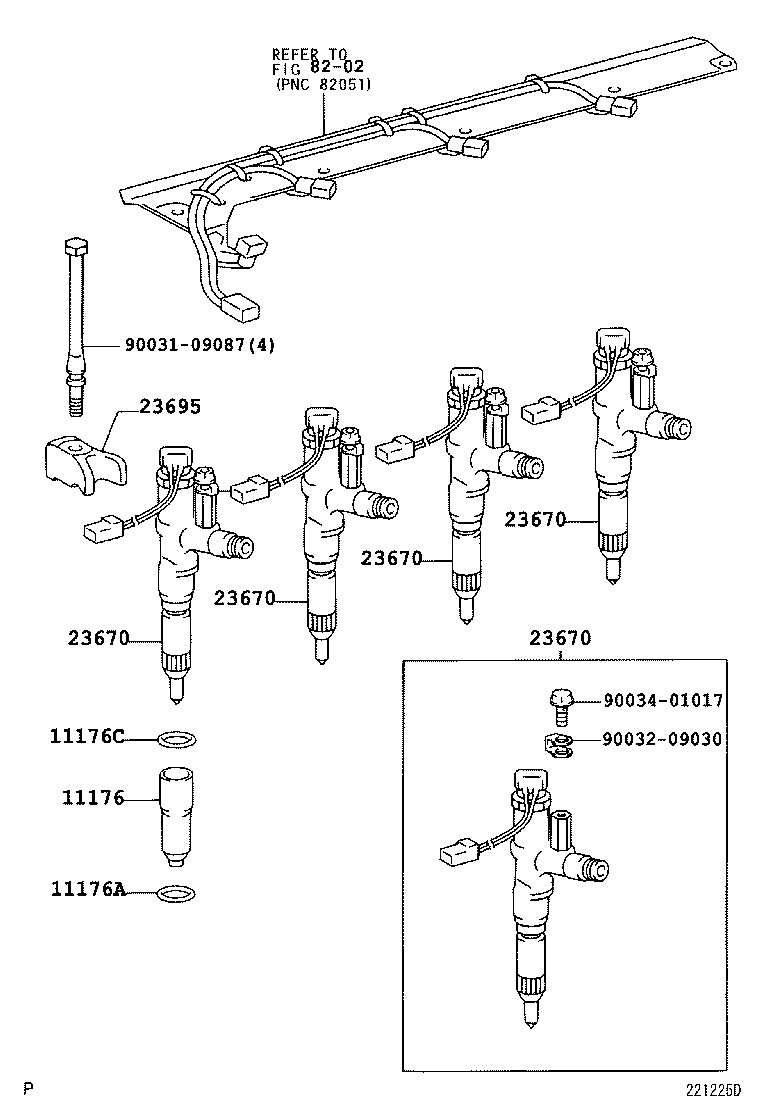

Click highlighted areas on diagram

diagram 11176 11176A 11176C 23670 23670 23670 23670 23670 23695 8202 9003109087 9003209030 9003401017
Part # Description Qty Price
11176 - SEAT, INJECTION NOZZLE
11176-89101

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 4
11176A - GASKET(FOR INJECTION NOZZLE SEAT)
90034-30039

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 4
11176C - GASKET, NO.2(FOR INJECTION NOZZLE SEAT)
90034-30039

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 4
23670 - INJECTOR ASSY
23670-78011

S05C..XZU404,414,424,434..ARL,GEN

 4
23670-78010

S05C..XZU404,414,424,434

 4
23670 - INJECTOR ASSY
23670-78011

S05C..XZU404,414,424,434..ARL,GEN

 4
23670-78010

S05C..XZU404,414,424,434

 4
23670 - INJECTOR ASSY
23670-78011

S05C..XZU404,414,424,434..ARL,GEN

 4
23670-78010

S05C..XZU404,414,424,434

 4
23670 - INJECTOR ASSY
23670-78011

S05C..XZU404,414,424,434..ARL,GEN

 4
23670-78010

S05C..XZU404,414,424,434

 4
23670 - INJECTOR ASSY
23670-78011

S05C..XZU404,414,424,434..ARL,GEN

 4
23670-78010

S05C..XZU404,414,424,434

 4
23695 - CLAMP, NOZZLE HOLDER, NO.1
23695-78010

S05C..XZU404,414,424,434

 4
23695-78050

S05C..XZU404,414,424,434..ARL,GEN

 4
23695-78040

S05C..XZU404,414,424,434

 4
Common parts
90031-09087
90032-09030
90034-01017
Linked diagrams
8202
