XZU404R-TKMMW3 (2001)
Toyota Dyna
Production
Oct 2001
-
Oct 2006
Engine
S05C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0110- )S05C..TD

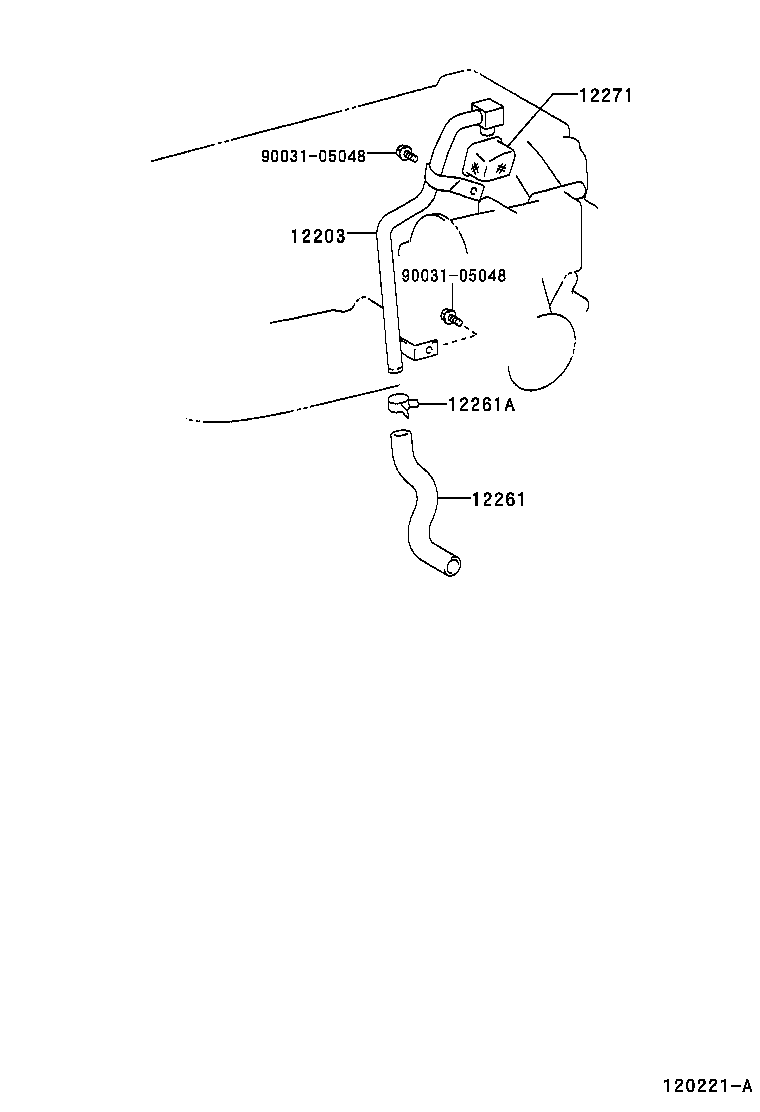

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12203 - PIPE SUB-ASSY, VENTILATION | ||||
| 12203-78030 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 90034-46036 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90034-67018 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 12271 - SCREEN, OIL SEPARATOR | ||||
| 12271-78021 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| Common parts | ||||
| 90031-05048 | ||||
