XZU347L-TKMSBR3 (2006)

Toyota Dyna

Production Oct 2006 - Jan 2009
Engine N04C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )WU30#,34#..LHD

Click highlighted areas on diagram

diagram 1905 27690K 3602 44610 44621V 44704 44730B 44730P 44763B 44768 44771 44771D 44772 44773L 44774 44778 44778E 44781 44781C 44912G 44912G 4711 4737137040 4737137040 8401 9011908103 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908830 9017908038 9017910065 9046108385 9046108642 9046615003 9048022022 91642K1020 9164580825 9164580825 9165160816 9413000802 9413000802 9413000802 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78140

N04C..XZU307,327,337,347

 1
44610 - BOOSTER ASSY, BRAKE
44610-37171

XZU307,327,337,347

 1
44621V - SEAL, BOOSTER BODY
44621-36050

XZU337,347..80T

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37190

WU30#,34#,XZU307,327,337,347..GCC,GEN,SA,TAIW

 1
44704-37191

XZU307,327,337,347

 1
44730B - CLAMP, VACUUM HOSE
44597-37021

XZU307,327,337,347

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

XZU307,327,337,347

 1
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44764-37640

XZU307,337,347

 1
44768 - TUBE, BOOSTER VACUUM
44768-37120

XZU307,327,337,347

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-37540

XZU307,327,337,347

 1
44771D - HOSE, VACUUM TUBE CONNECTOR
44771-37230

XZU307,327,337,347

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-37020

XZU307,327,337,347

 1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37060

XZU307,327,337,347

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-37320

XZU307,327,337,347

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37060

XZU307,327,337,347

 1
44781C - BRACKET, HOSE CLAMP, NO.2
44781-37020

XZU307,337,347

 1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37C20

XZU337,347..80T

 1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37C20

XZU337,347..80T

 1
Common parts
47371-37040
90119-08103
90119-08676
90119-08830
90179-08038
90179-10065
90461-08385
90461-08642
90466-15003
90480-22022
91642-K1020
91645-80825
91651-60816
94130-00802
96133-41500
Linked diagrams
1905
3602
4711
8401

ILLUST NO. 1 OF 2(0610- )XZU307,327,337,347

Click highlighted areas on diagram

diagram 3312 44610 44621V 44730 44730B 44763B 44763B 44768 44771D 44772 44776 44778D 44781 44799 4702 4737137040 4737137040 4737137040 9011908103 9011908676 9017908038 9046108642 9046108642 9046615003 9046615003 9046615003 9046615003 9046716022 9046716022 9048022022 9165160816 9165160816 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-37171

XZU307,327,337,347

 1
44621V - SEAL, BOOSTER BODY
44621-36050

XZU337,347..80T

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-35010

XZU307,327,337,347

 1
44730B - CLAMP, VACUUM HOSE
44597-37021

XZU307,327,337,347

 1
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44764-37640

XZU307,337,347

 1
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44764-37640

XZU307,337,347

 1
44768 - TUBE, BOOSTER VACUUM
44768-37120

XZU307,327,337,347

 1
44771D - HOSE, VACUUM TUBE CONNECTOR
44771-37230

XZU307,327,337,347

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-37020

XZU307,327,337,347

 1
44776 - HOSE, BRAKE BOOSTER
44776-37230

XZU307,327,337,347

 1
44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE
44778-37170

XZU307,327,337,347

 1
44778-37171

XZU307,327,337,347

 1
44799 - WAY, BRAKE VACUUM HOSE
44799-37010

XZU307,327,337,347

 1
Common parts
47371-37040
90119-08103
90119-08676
90179-08038
90461-08642
90466-15003
90467-16022
90480-22022
91651-60816
96133-41500
Linked diagrams
3312
4702

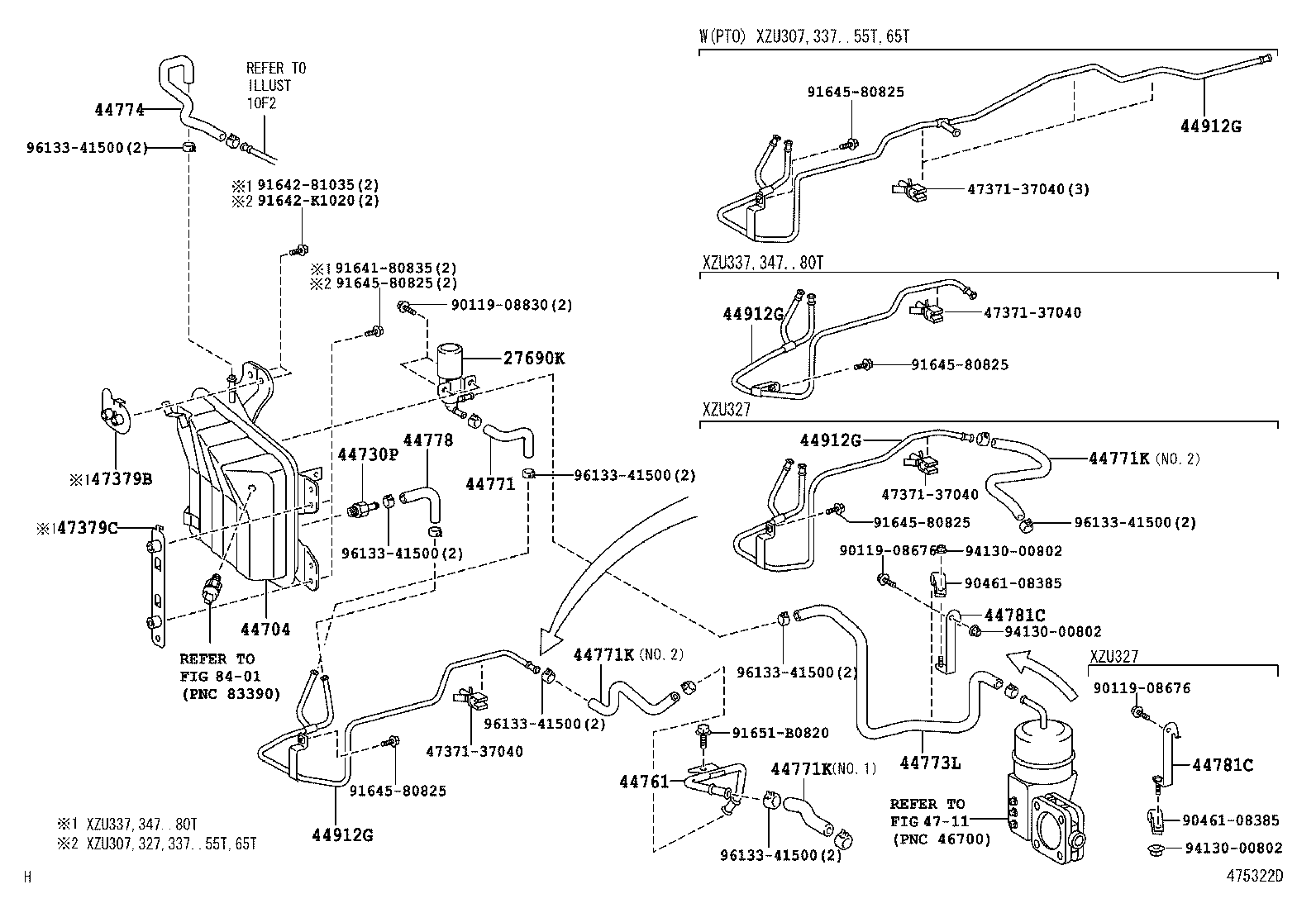

ILLUST NO. 2 OF 2(0610- )XZU307,327,337,347

Click highlighted areas on diagram

diagram 27690K 44704 44730P 44761 44771 44771K 44771K 44771K 44773L 44774 44778 44781C 44781C 44912G 44912G 44912G 44912G 4711 4737137040 4737137040 4737137040 4737137040 47379B 47379C 9011908676 9011908676 9011908830 9046108385 9046108385 9164180835 9164281035 91642K1020 9164580825 9164580825 9164580825 9164580825 9164580825 91651B0820 9413000802 9413000802 9413000802 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78140

N04C..XZU307,327,337,347

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37190

WU30#,34#,XZU307,327,337,347..GCC,GEN,SA,TAIW

 1
44704-37191

XZU307,327,337,347

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

XZU307,327,337,347

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-37540

XZU307,327,337,347

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-37540

XZU307,327,337,347

 1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37A50

XZU307,337,347

NO.2

 1
95446-09120

XZU307,327,337,347

NO.1

 1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37A50

XZU307,337,347

NO.2

 1
95446-09120

XZU307,327,337,347

NO.1

 1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37A50

XZU307,337,347

NO.2

 1
95446-09120

XZU307,327,337,347

NO.1

 1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37060

XZU307,327,337,347

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-37320

XZU307,327,337,347

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37060

XZU307,327,337,347

 1
44781C - BRACKET, HOSE CLAMP, NO.2
44781-37020

XZU307,337,347

 1
44781C - BRACKET, HOSE CLAMP, NO.2
44781-37020

XZU307,337,347

 1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37C20

XZU337,347..80T

 1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37C20

XZU337,347..80T

 1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37C20

XZU337,347..80T

 1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37C20

XZU337,347..80T

 1
47379B - SPACER, BRAKE TUBE, NO.1
47379-37090

XZU337,347..80T

 1
47379C - SPACER, BRAKE TUBE, NO.2
47379-37110

XZU337,347..80T

 1
Common parts
47371-37040
90119-08676
90119-08830
90461-08385
91641-80835
91642-81035
91642-K1020
91645-80825
91651-B0820
94130-00802
96133-41500
Linked diagrams
4711
