XZU347L-TKMSBR3 (2006)
Toyota Dyna

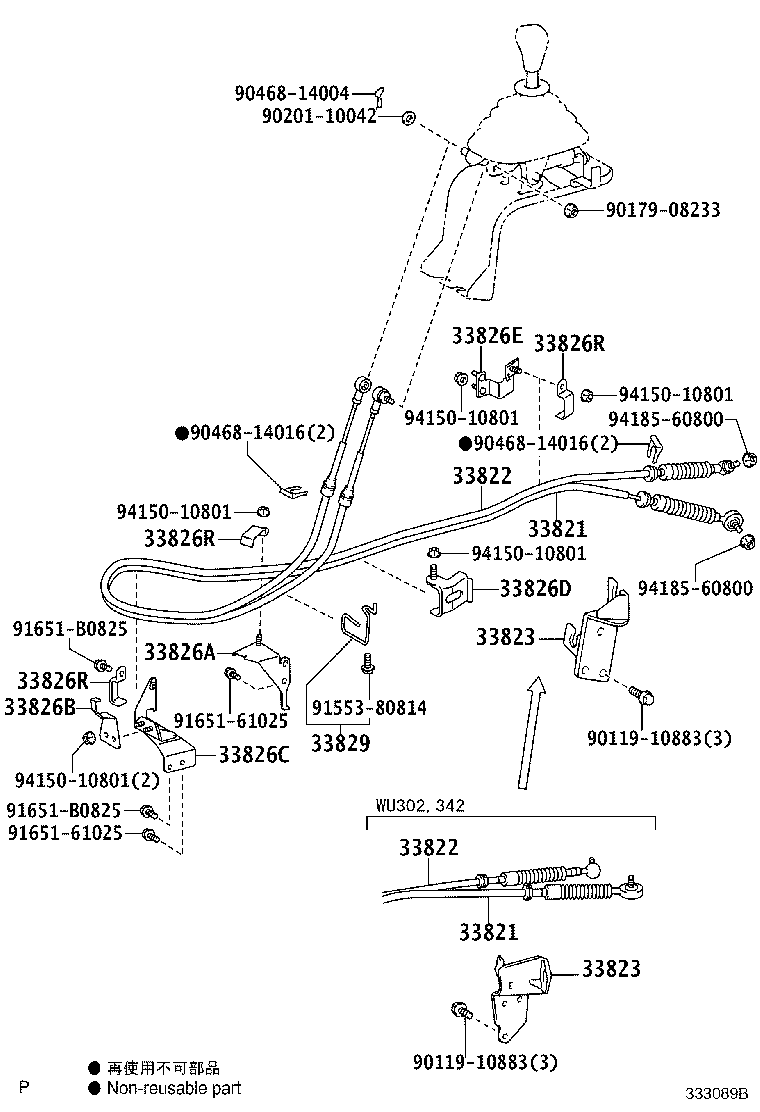

ILLUST NO. 2 OF 2(0610- )WU30#,34#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-37K40 |
XZU337,347..80T |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-37K40 |
XZU337,347..80T |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33830-37440 |
XZU337,347..80T |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33830-37440 |
XZU337,347..80T |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37A30 |
XZU337,347..80T |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37A30 |
XZU337,347..80T |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33827-37180 |
WU30#,34#,XZU307,327,337,347..LHD |
1 | ||
| 33827-37181 |
XZU307,327,337,347 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37690 |
WU30#,34#,XZU307,327,337,347..LHD |
1 | ||
| 33826-37691 |
XZU307,327,337,347 |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-37282 |
XZU307,337,347 NO.1 |
1 | ||
| 33826-37282 |
WU30#,34#,XZU327..LHD |
1 | ||
| 33826-37283 |
XZU307,337,347 NO.1 |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33828-37060 |
XZU307,327,337,347 |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
XZU307,327,337,347 |
2 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
XZU307,327,337,347 |
2 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
XZU307,327,337,347 |
2 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-37250 |
XZU307,327,337,347 |
1 | ||
| Common parts | ||||
| 90119-10883 | ||||
| 90179-08233 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91553-80814 | ||||
| 91651-61025 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
| 94185-60800 | ||||

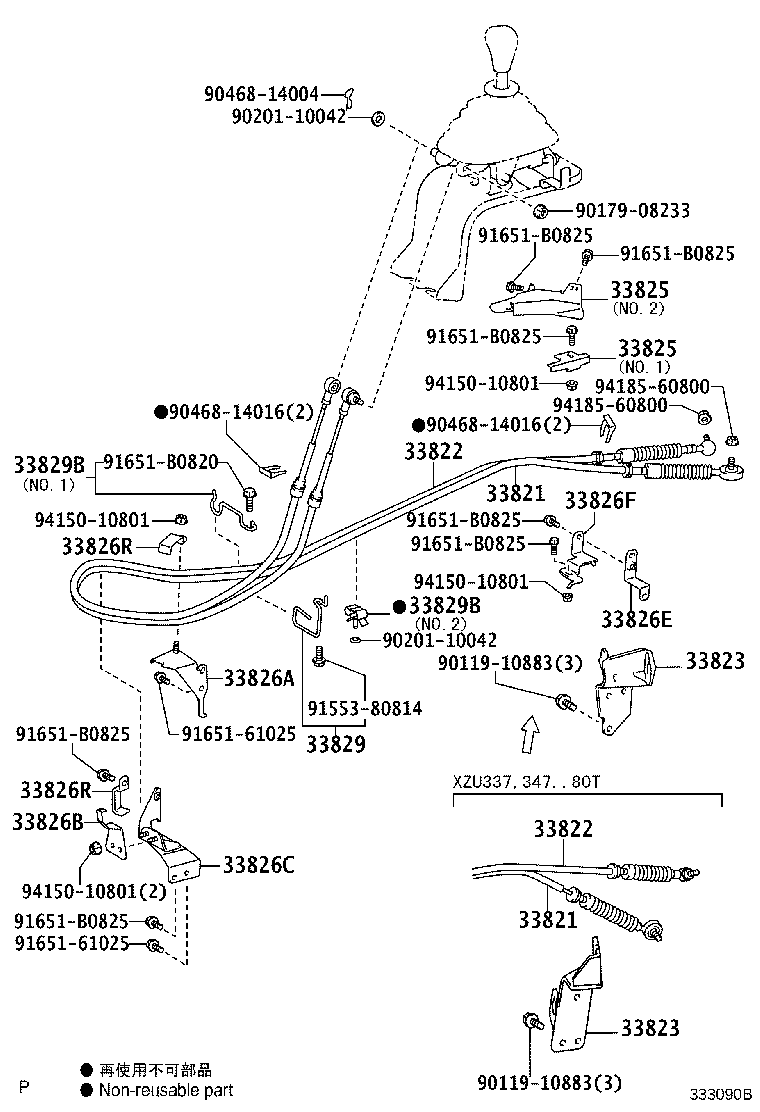

ILLUST NO. 2 OF 2(0610- )XZU307,337,347
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-37K40 |
XZU337,347..80T |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-37K40 |
XZU337,347..80T |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33830-37440 |
XZU337,347..80T |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33830-37440 |
XZU337,347..80T |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37A30 |
XZU337,347..80T |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37A30 |
XZU337,347..80T |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-37060 |
XZU307,337,347 NO.2 |
1 | ||
| 33825-37031 |
XZU307,327,337,347 NO.1 |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-37060 |
XZU307,337,347 NO.2 |
1 | ||
| 33825-37031 |
XZU307,327,337,347 NO.1 |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33827-37180 |
WU30#,34#,XZU307,327,337,347..LHD |
1 | ||
| 33827-37181 |
XZU307,327,337,347 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37690 |
WU30#,34#,XZU307,327,337,347..LHD |
1 | ||
| 33826-37691 |
XZU307,327,337,347 |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-37282 |
XZU307,337,347 NO.1 |
1 | ||
| 33826-37282 |
WU30#,34#,XZU327..LHD |
1 | ||
| 33826-37283 |
XZU307,337,347 NO.1 |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33828-37060 |
XZU307,327,337,347 |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33827-37150 |
XZU307,337,347 |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
XZU307,327,337,347 |
2 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
XZU307,327,337,347 |
2 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-37250 |
XZU307,327,337,347 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XZU307,327,337,347 NO.2 |
1 | ||
| 33829-37270 |
XZU307,327,337,347 NO.1 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XZU307,327,337,347 NO.2 |
1 | ||
| 33829-37270 |
XZU307,327,337,347 NO.1 |
1 | ||
| Common parts | ||||
| 90119-10883 | ||||
| 90179-08233 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91553-80814 | ||||
| 91651-61025 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
| 94185-60800 | ||||

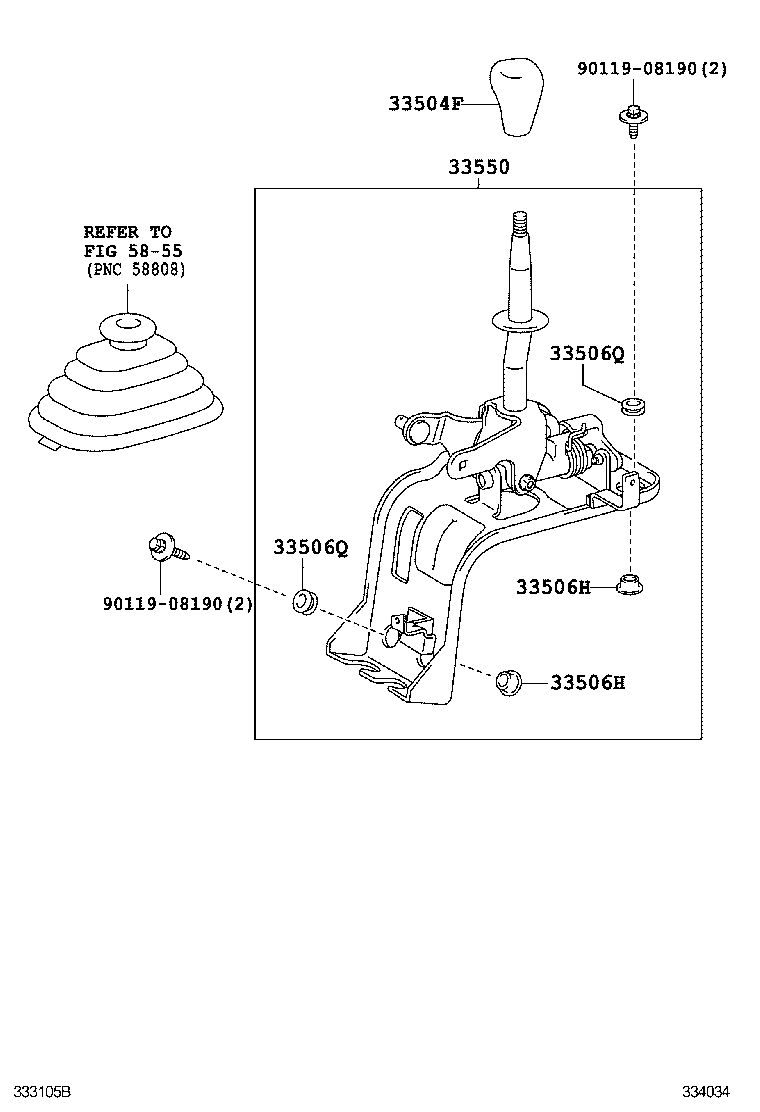

ILLUST NO. 1 OF 2(0610- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-36051B1 |
XZU307,327,337,347 DK.CHARCOAL,TRIM1# |
1 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 90386-12056 |
XZU307,327,337,347 |
4 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 90386-12056 |
XZU307,327,337,347 |
4 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33577-37060 |
XZU307,327,337,347 |
4 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33577-37060 |
XZU307,327,337,347 |
4 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-37102 |
XZU307,327,337,347 |
1 | ||
| Common parts | ||||
| 90119-08190 | ||||
| Linked diagrams | ||||
| 5855 | ||||
