XZU345R-TKMMWQ3 (2003)

Toyota Dyna

Production Dec 2003 - Oct 2006
Engine N04C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

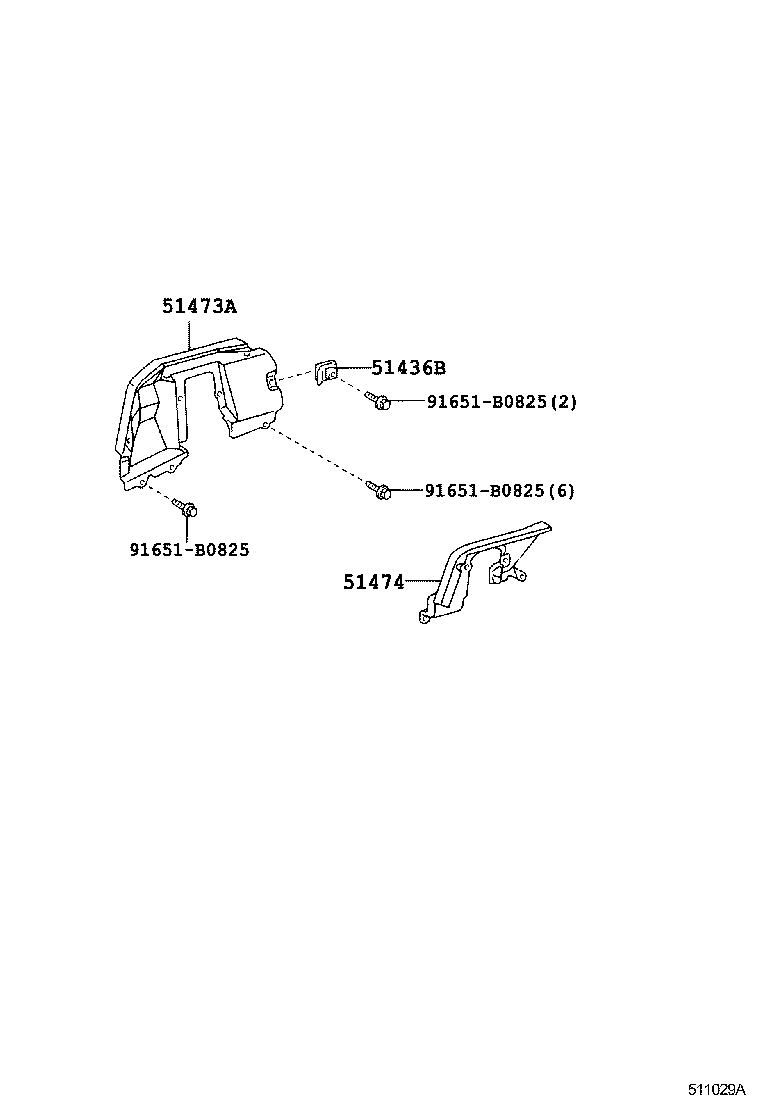

ILLUST NO. 1 OF 2(0312- )WU30#,34#,XZU305,345..ARL,GEN,SA

Click highlighted areas on diagram

diagram 51436B 51473A 51474 91651B0825 91651B0825 91651B0825
Part # Description Qty Price
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37180

XZU305,345

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37120

XZU305,345

 1
Common parts
91651-B0825
