XZU345R-TKMMWQ3 (2003)
Toyota Dyna
Production
Dec 2003
-
Oct 2006
Engine
N04C
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0209-0610)BU30#,34#,WU300,340,XZU300,320,330,340 ; (0610-0612)BU303,343,WU300,340.

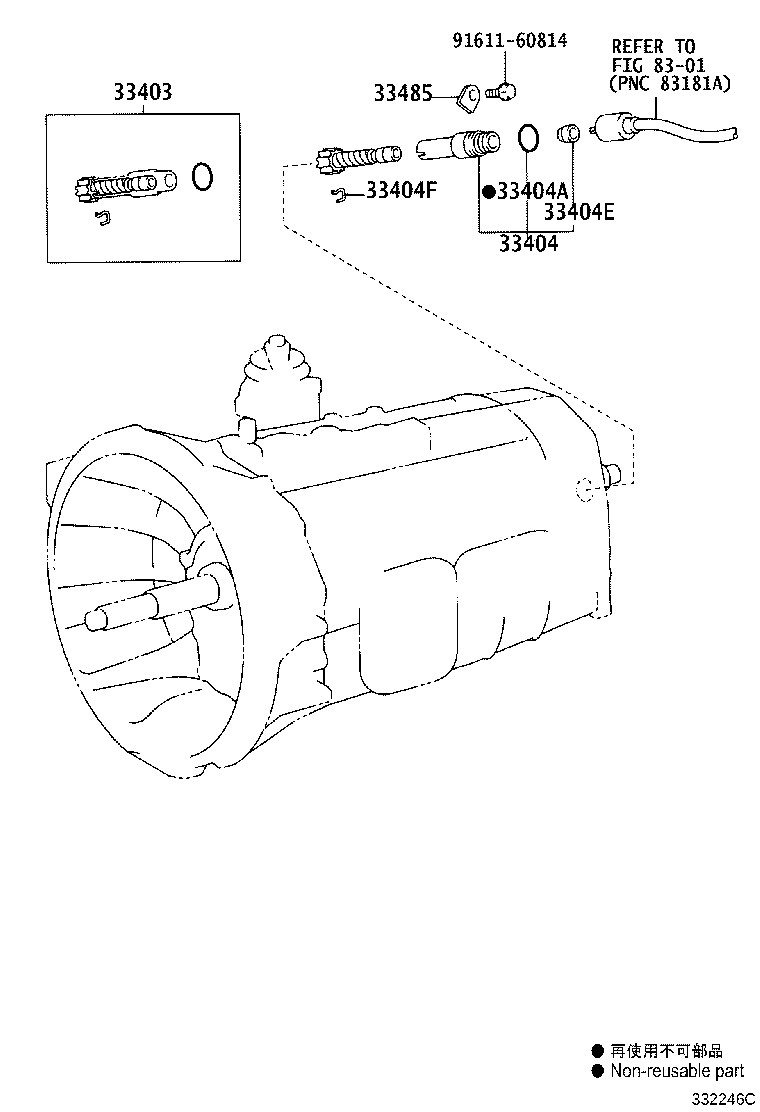

Click highlighted areas on diagram
M150,M153,H350
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-36020 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
1 | ||
| 33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
1 | ||
| 33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-30020 |
BU303,343,WU300,340,XZU305,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
(0312-0610)XZU305,345
Click highlighted areas on diagram
M550
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-36020 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
1 | ||
| 33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
1 | ||
| 33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-30020 |
BU303,343,WU300,340,XZU305,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| Linked diagrams | ||||
| 8301 | ||||
