XZU345R-TKMMWQ3 (2003)

Toyota Dyna

Production Dec 2003 - Oct 2006
Engine N04C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0610)N04C

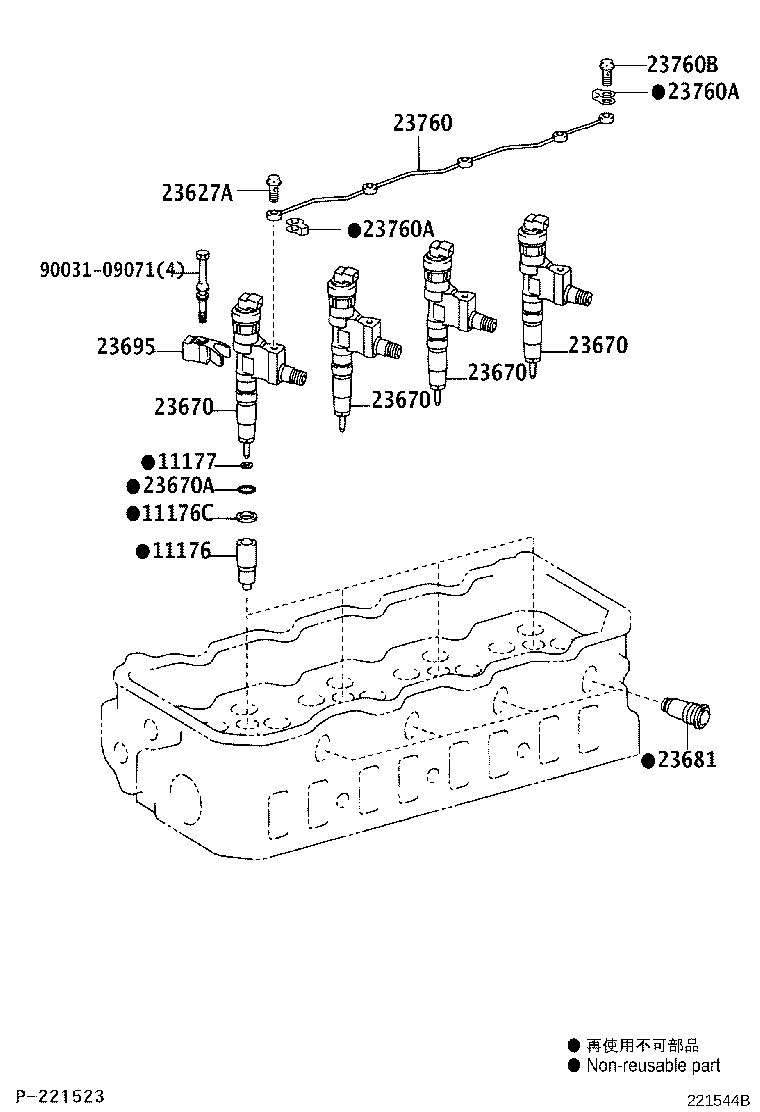

Click highlighted areas on diagram

diagram 11176 11176C 11177 23627A 23670 23670 23670 23670 23670A 23681 23695 23760 23760A 23760A 23760B 9003109071
Part # Description Qty Price
11176 - SEAT, INJECTION NOZZLE
11176-78010

N04C..XZU305,345

 4
11176C - GASKET, NO.2(FOR INJECTION NOZZLE SEAT)
90034-30044

N04C..XZU305,345

 4
11177 - GASKET, INJECTION NOZZLE SEAT
23682-78030

N04C..XZU305,345

 4
23627A - SCREW, FOLLOW(FOR NOZZLE)
90034-01017

N04C..XZU305,345

 4
23670 - INJECTOR ASSY
23670-78030

N04C..XZU305,345

 4
23670 - INJECTOR ASSY
23670-78030

N04C..XZU305,345

 4
23670 - INJECTOR ASSY
23670-78030

N04C..XZU305,345

 4
23670 - INJECTOR ASSY
23670-78030

N04C..XZU305,345

 4
23670A - RING, O(FOR INJECTOR ASSY)
90301-19005

N04C..XZU305,345

 4
23681 - SEAL, NOZZLE HOLDER
23681-78010

N04C..XZU305,345

 4
23695 - CLAMP, NOZZLE HOLDER, NO.1
23695-78020

N04C..XZU305,345

 4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23708-78010

N04C..XZU305,345

 1
23760A - GASKET
90032-09030

N04C..XZU305,345

 5
23760A - GASKET
90032-09030

N04C..XZU305,345

 5
23760B - BOLT, UNION(FOR NOZZLE LEAKAGE PIPE)
90034-01009

N04C..XZU305,345

 1
Common parts
90031-09071
