XZU345R-TKMMWQ3 (2003)

Toyota Dyna

Production Dec 2003 - Oct 2006
Engine N04C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0610)N04C

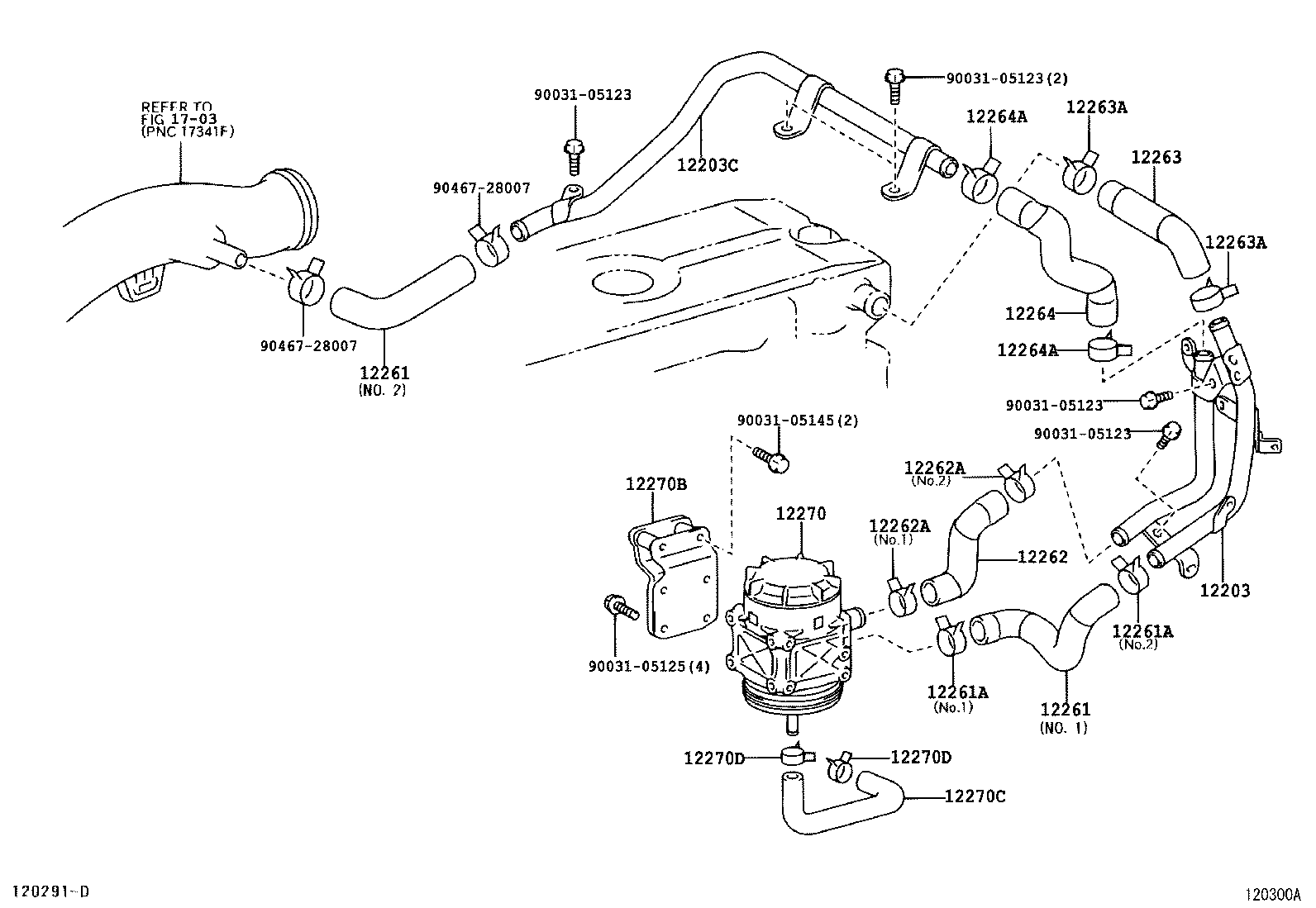

Click highlighted areas on diagram

diagram 12203 12203C 12261 12261 12261A 12261A 12262 12262A 12262A 12263 12263A 12263A 12264 12264A 12264A 12270 12270B 12270C 12270D 12270D 1703 9003105123 9003105123 9003105123 9003105123 9003105125 9003105145 9046728007 9046728007
Part # Description Qty Price
12203 - PIPE SUB-ASSY, VENTILATION
12203-78050

N04C..XZU305,345

 1
12203C - PIPE SUB-ASSY, VENTILATION, NO.2
12203-78060

N04C..XZU305,345

 1
12203-78062

N04C..XZU305,345

 1
12203-78061

N04C..XZU305,345

 1
12261 - HOSE, VENTILATION
12261-78011

N04C..XZU305,345

NO.2

 1
12261-78020

N04C..XZU305,345

NO.1

 1
12261-78180

N04C..XZU305,345

NO.1

 1
12261-78010

N04C..XZU305,345

NO.2

 1
12261 - HOSE, VENTILATION
12261-78011

N04C..XZU305,345

NO.2

 1
12261-78020

N04C..XZU305,345

NO.1

 1
12261-78180

N04C..XZU305,345

NO.1

 1
12261-78010

N04C..XZU305,345

NO.2

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90034-67029

N04C..XZU305,345

NO.1

 1
90034-67018

N04C..XZU305,345

NO.2

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90034-67029

N04C..XZU305,345

NO.1

 1
90034-67018

N04C..XZU305,345

NO.2

 1
12262 - HOSE, VENTILATION, NO.2
12261-78030

N04C..XZU305,345

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90034-67018

N04C..XZU305,345

NO.2

 1
90034-67029

N04C..XZU305,345

NO.1

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90034-67018

N04C..XZU305,345

NO.2

 1
90034-67029

N04C..XZU305,345

NO.1

 1
12263 - HOSE, VENTILATION, NO.3
12261-78040

N04C..XZU305,345

 1
12263A - CLIP(FOR VENTILATION HOSE)
90034-67018

N04C..XZU305,345

 2
12263A - CLIP(FOR VENTILATION HOSE)
90034-67018

N04C..XZU305,345

 2
12264 - HOSE, VENTILATION, NO.4
12261-78050

N04C..XZU305,345

 1
12264A - CLIP(FOR VENTILATION HOSE)
90034-67018

N04C..XZU305,345

 2
12264A - CLIP(FOR VENTILATION HOSE)
90034-67018

N04C..XZU305,345

 2
12270 - SEPARATOR ASSY, OIL
12270-78011

N04C..XZU305,345

 1
12270B - BRACKET(FOR OIL SEPARATOR)
15609-78010

N04C..XZU305,345

 1
12270C - HOSE, OIL(FOR OIL SEPARATOR)
29603-78020

N04C..XZU305,345

 1
12270D - CLIP(FOR OIL SEPARATOR HOSE)
90034-67028

N04C..XZU305,345

 2
12270D - CLIP(FOR OIL SEPARATOR HOSE)
90034-67028

N04C..XZU305,345

 2
Common parts
90031-05123
90031-05125
90031-05145
90467-28007
Linked diagrams
1703
