XZU345R-TKMMWQ3 (2003)

Toyota Dyna

Production Dec 2003 - Oct 2006
Engine N04C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

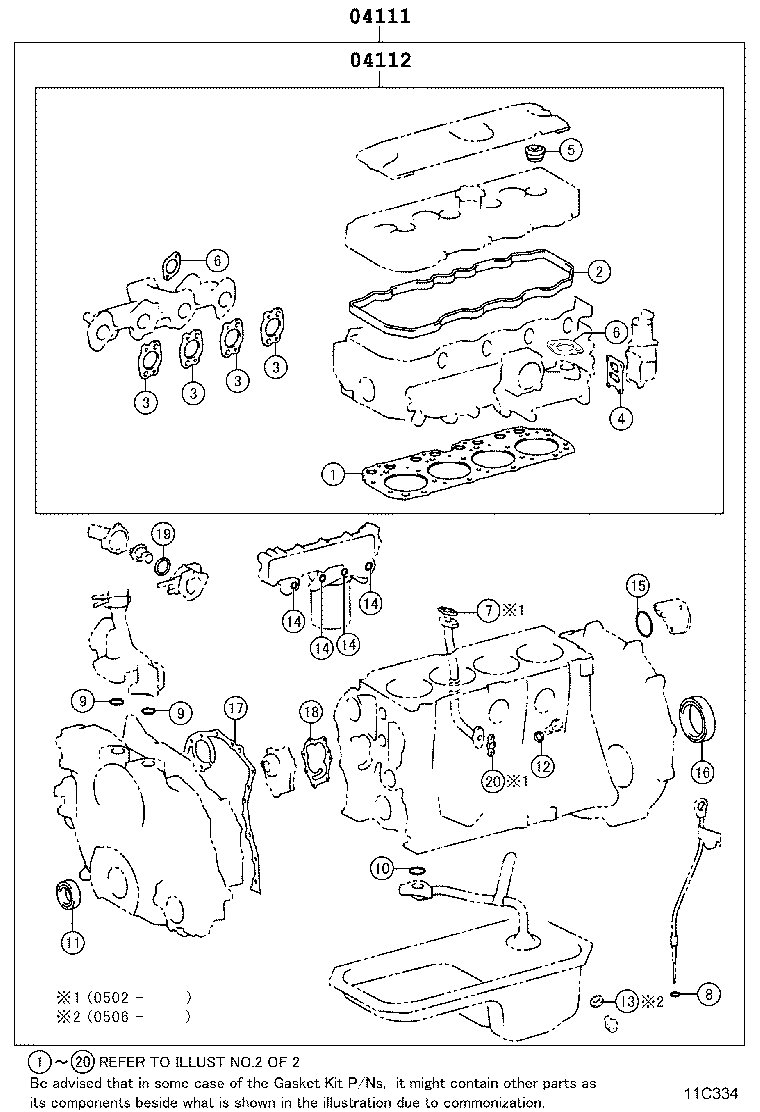

ILLUST NO. 1 OF 2(0312-0610)N04C

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-78251

N04C..XZU305,345

 1
04111-80090

N04C..XZU305,345

 1
04111-78250

N04C..XZU305,345

 1
04111-80420

N04C..XZU305,345

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-78080

N04C..XZU305,345

 1
04112-78081

N04C..XZU305,345

 1

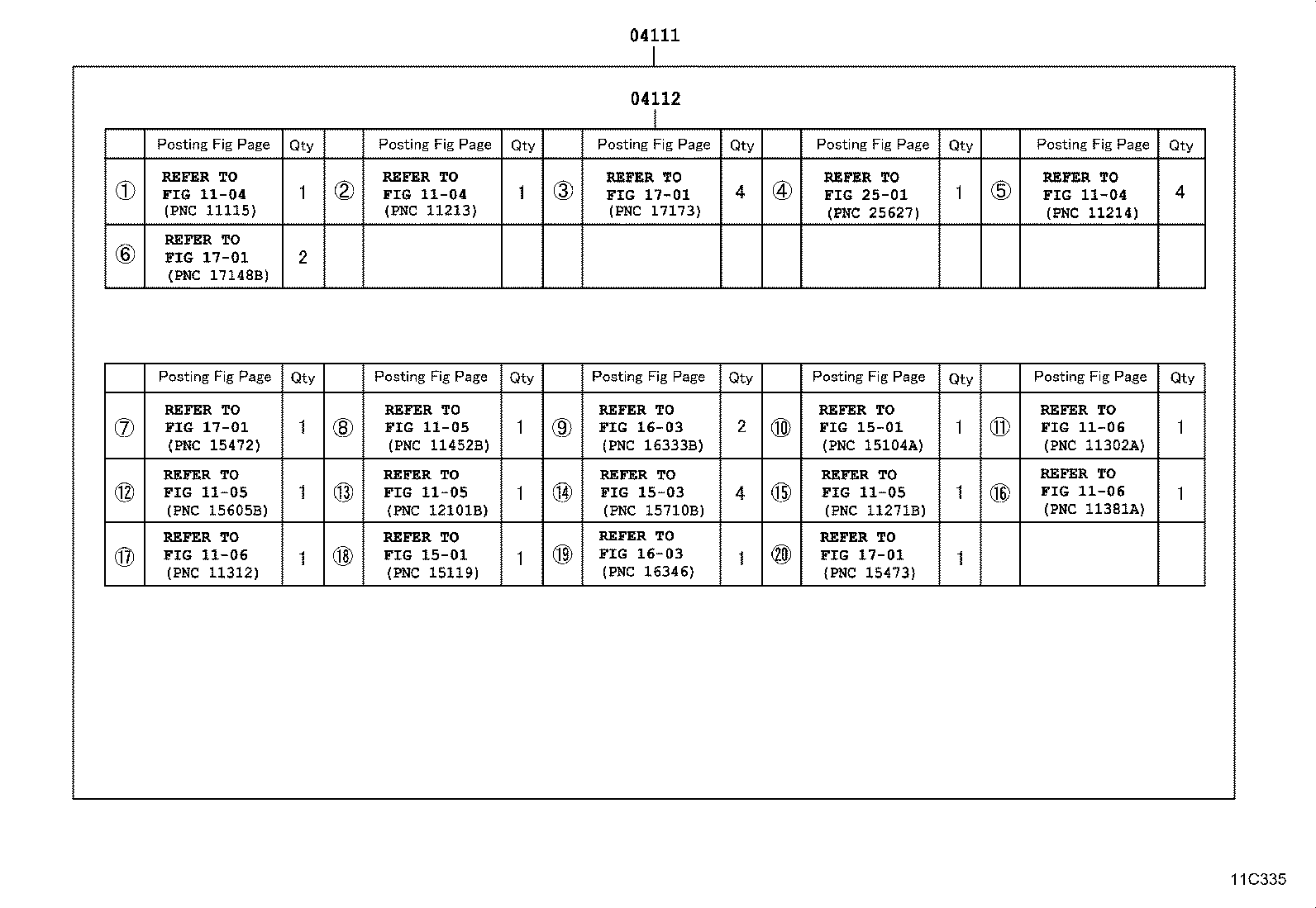

ILLUST NO. 2 OF 2(0312-0610)N04C

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1105 1105 1105 1105 1106 1106 1106 1501 1501 1503 1603 1603 1701 1701 1701 1701 2501
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-78251

N04C..XZU305,345

 1
04111-80090

N04C..XZU305,345

 1
04111-78250

N04C..XZU305,345

 1
04111-80420

N04C..XZU305,345

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-78080

N04C..XZU305,345

 1
04112-78081

N04C..XZU305,345

 1
Linked diagrams
1104
1105
1106
1501
1503
1603
1701
2501
