XZU342R-TKMRSD3 (2002)

Toyota Dyna

Production Sep 2002 - Dec 2006
Engine S05C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

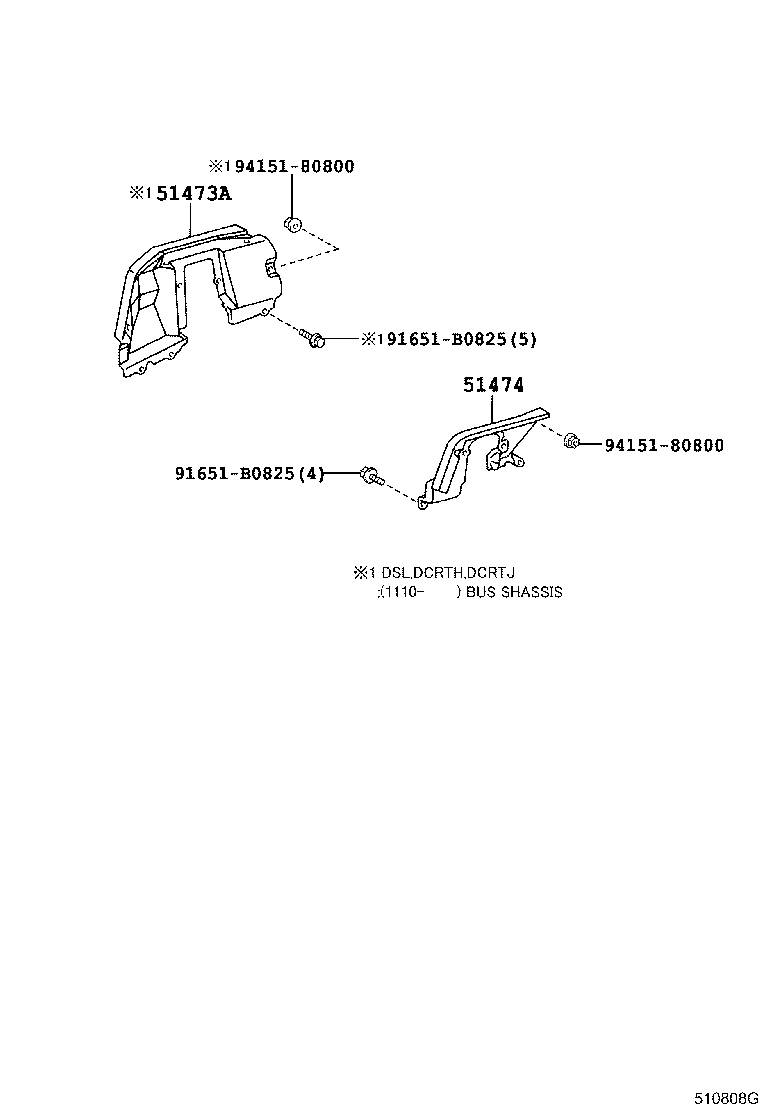

ILLUST NO. 1 OF 2(0209- )IDN

Click highlighted areas on diagram

diagram 51473A 51474 91651B0825 91651B0825 9415180800 9415180800
Part # Description Qty Price
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-0W010

BU303,343,WU300,340,XZU342..IDN

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-0W010

BU303,343,WU300,340,XZU342..IDN

 1
Common parts
91651-B0825
94151-80800

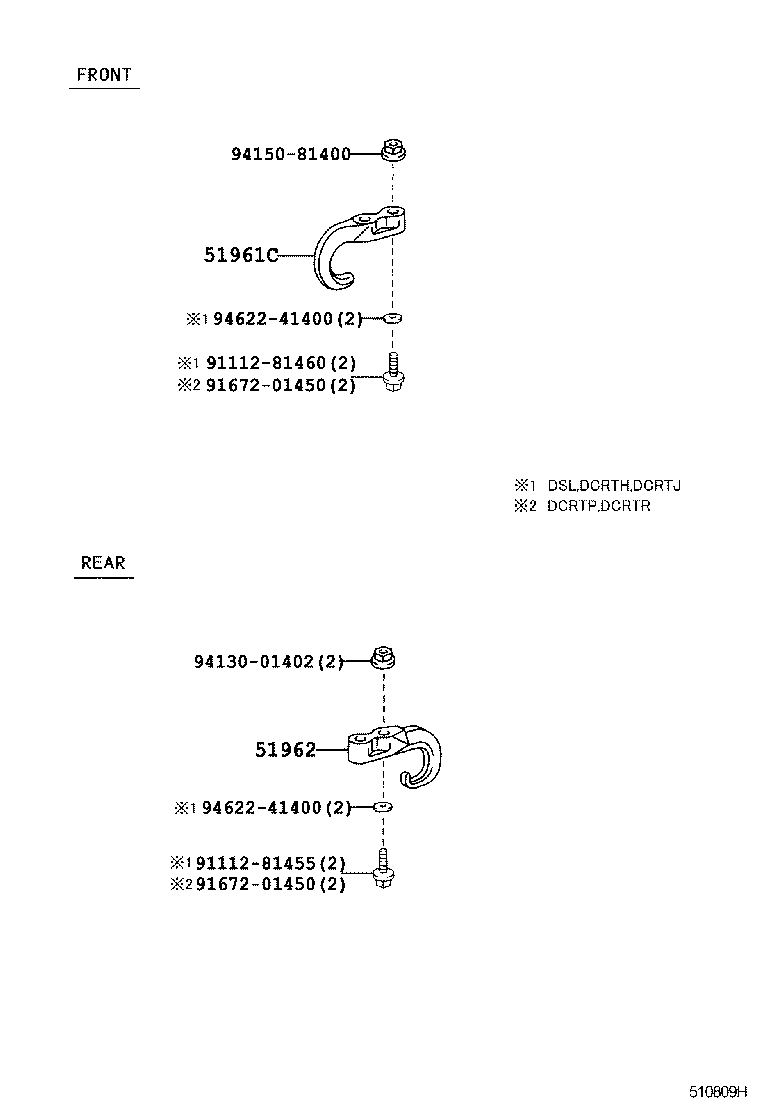

ILLUST NO. 2 OF 2(0209-0612)IDN ; (0612- )IDN

Click highlighted areas on diagram

diagram 51961C 51962 9111281455 9111281460 9167201450 9167201450 9413001402 9415081400 9462241400 9462241400
Part # Description Qty Price
51961C - HOOK, FRONT
51961-0W010

BU303,343,WU300,340,XZU342..IDN

 1
51962 - HOOK, NO.2
51961-0W010

BU303,343,WU300,340,XZU342..IDN

 1
Common parts
91112-81455
91112-81460
91672-01450
94130-01402
94150-81400
94622-41400
