XZU342R-TKMRSD3 (2002)
Toyota Dyna

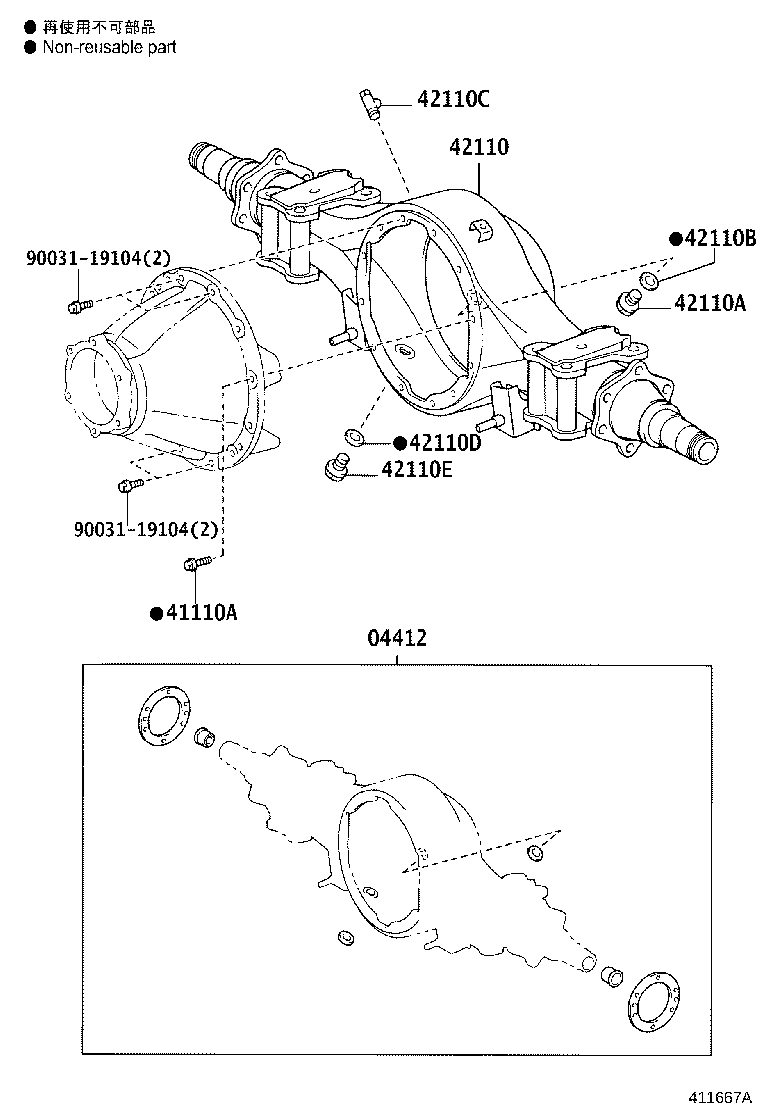

ILLUST NO. 2 OF 2(0209-0612)75T
13 INCHES DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-37080 |
WU340,XZU342..75T |
1 | ||
| 04412-37070 |
WU340,XZU342..75T |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90031-19103 |
WU340,XZU342..75T |
8 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-37451 |
WU340,XZU342..75T |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90033-41022 |
WU340,XZU342..75T |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 42183-37010 |
WU340,XZU342..75T |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 33209-37010 |
WU340,XZU342..75T |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 42183-37010 |
WU340,XZU342..75T |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90033-41021 |
WU340,XZU342..75T |
1 | ||
| Common parts | ||||
| 90031-19104 | ||||

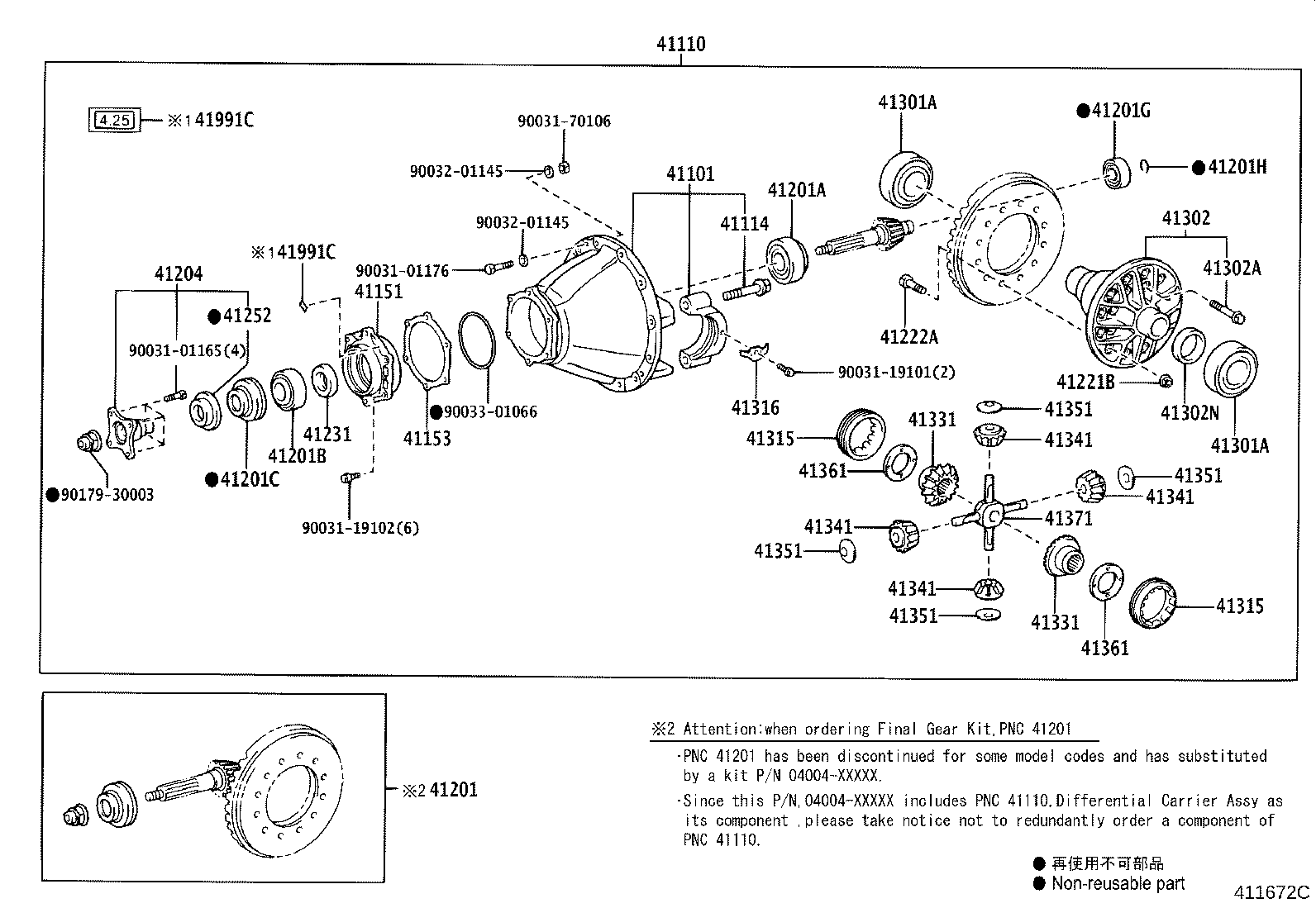

ILLUST NO. 1 OF 2(0209-0612)75T
13 INCHES DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-37050 |
WU340,XZU342..75T |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0W070 |
WU340,XZU342..75T *FGR=45:7=6.428 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90031-05043 |
WU340,XZU342..75T |
4 | ||
| 41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41151-37020 |
WU340,XZU342..75T |
1 | ||
| 41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE | ||||
| 41153-37070 |
WU340,XZU342..75T T=0.45 |
1 | ||
| 41153-37050 |
WU340,XZU342..75T T=0.30 |
1 | ||
| 41153-37060 |
WU340,XZU342..75T T=0.40 |
1 | ||
| 41153-37080 |
WU340,XZU342..75T T=0.50 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80209 |
WU340,XZU342..75T *FGR=45:7=6.428 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90033-66035 |
WU340,XZU342..75T |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90033-66038 |
WU340,XZU342..75T |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90033-11039 |
WU340,XZU342..75T |
1 | ||
| 41201G - BEARING, DIFFERENTIAL DRIVE PINION CYLINDLICAL ROLLER | ||||
| 90033-65001 |
WU340,XZU342..75T |
1 | ||
| 41201H - RING, DRIVE PINION CYLINDRICAL ROLLER BEARING LOCKING | ||||
| 90035-20019 |
WU340,XZU342..75T |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37060 |
WU340,XZU342..75T |
1 | ||
| 41221B - NUT(FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90031-75005 |
WU340,XZU342..75T |
12 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90031-09055 |
WU340,XZU342..75T |
12 | ||
| 90031-01193 |
WU340..65T..GEN;WU302,342,XZU307,327,337,347..WT |
16 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-37280 |
WU340,XZU342..75T T=14.050 |
1 | ||
| 41231-37240 |
WU340,XZU342..75T T=13.950 |
1 | ||
| 41231-37270 |
WU340,XZU342..75T T=14.025 |
1 | ||
| 41231-37260 |
WU340,XZU342..75T T=14.000 |
1 | ||
| 41231-37220 |
WU340,XZU342..75T T=13.900 |
1 | ||
| 41231-37230 |
WU340,XZU342..75T T=13.925 |
1 | ||
| 41231-37340 |
WU340,XZU342..75T T=14.200 |
1 | ||
| 41231-37300 |
WU340,XZU342..75T T=14.100 |
1 | ||
| 41231-37250 |
WU340,XZU342..75T T=13.975 |
1 | ||
| 41231-37320 |
WU340,XZU342..75T T=14.150 |
1 | ||
| 41231-37290 |
WU340,XZU342..75T T=14.075 |
1 | ||
| 41231-37370 |
WU340,XZU342..75T T=14.275 |
1 | ||
| 41231-37350 |
WU340,XZU342..75T T=14.225 |
1 | ||
| 41231-37360 |
WU340,XZU342..75T T=14.250 |
1 | ||
| 41231-37310 |
WU340,XZU342..75T T=14.125 |
1 | ||
| 41231-37390 |
WU340,XZU342..75T T=14.325 |
1 | ||
| 41231-37330 |
WU340,XZU342..75T T=14.175 |
1 | ||
| 41231-37400 |
WU340,XZU342..75T T=14.350 |
1 | ||
| 41231-37410 |
WU340,XZU342..75T T=14.375 |
1 | ||
| 41231-37380 |
WU340,XZU342..75T T=14.300 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 37341-89203 |
WU340,XZU342..75T |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90033-66039 |
WU340,XZU342..75T |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90033-66039 |
WU340,XZU342..75T |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-37020 |
WU340,XZU342..75T |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90031-05044 |
WU340,XZU342..75T |
8 | ||
| 41302N - SPACER, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-37210 |
WU340,XZU342..75T |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37010 |
WU340,XZU342..75T |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37010 |
WU340,XZU342..75T |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-37010 |
WU340,XZU342..75T |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37030 |
WU340,XZU342..75T |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37030 |
WU340,XZU342..75T |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37020 |
WU340,XZU342..75T |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37020 |
WU340,XZU342..75T |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37020 |
WU340,XZU342..75T |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37020 |
WU340,XZU342..75T |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37010 |
WU340,XZU342..75T |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37010 |
WU340,XZU342..75T |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37010 |
WU340,XZU342..75T |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37010 |
WU340,XZU342..75T |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37010 |
WU340,XZU342..75T T=2.0 |
2 | ||
| 41361-37020 |
WU340,XZU342..75T T=2.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37010 |
WU340,XZU342..75T T=2.0 |
2 | ||
| 41361-37020 |
WU340,XZU342..75T T=2.0 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-37010 |
WU340,XZU342..75T |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-37030 |
WU340,XZU342..75T |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-37030 |
WU340,XZU342..75T |
1 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01176 | ||||
| 90031-19101 | ||||
| 90031-19102 | ||||
| 90031-70106 | ||||
| 90032-01145 | ||||
| 90033-01066 | ||||
| 90179-30003 | ||||
ILLUST NO. 2 OF 2(0209-0610)BU303,WU300..T3 ; (0209-0610)55T,65T,80T..ARL,GCC,GEN,IDN,TAIW ; (0610-0
12 INCHES DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-37080 |
WU340,XZU342..75T |
1 | ||
| 04412-37070 |
WU340,XZU342..75T |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90031-19103 |
WU340,XZU342..75T |
8 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90031-19103 |
WU340,XZU342..75T |
8 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90031-19103 |
WU340,XZU342..75T |
8 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90031-19103 |
WU340,XZU342..75T |
8 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-37451 |
WU340,XZU342..75T |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90033-41022 |
WU340,XZU342..75T |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 42183-37010 |
WU340,XZU342..75T |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 33209-37010 |
WU340,XZU342..75T |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 42183-37010 |
WU340,XZU342..75T |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90033-41021 |
WU340,XZU342..75T |
1 | ||
| Common parts | ||||
| 47891-37010 | ||||
| 90033-31020 | ||||
| 90119-10283 | ||||
| 91651-B0616 | ||||
| 94130-01002 | ||||
| 94531-01000 | ||||
ILLUST NO. 1 OF 2(0610- )55T,65T..DCRTJ ; (0610- )WU340..65T..GEN ; (0610- )48T,55T,65T,75T
12 INCHES DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-37050 |
WU340,XZU342..75T |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0W070 |
WU340,XZU342..75T *FGR=45:7=6.428 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90031-05043 |
WU340,XZU342..75T |
4 | ||
| 41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41151-37020 |
WU340,XZU342..75T |
1 | ||
| 41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE | ||||
| 41153-37070 |
WU340,XZU342..75T T=0.45 |
1 | ||
| 41153-37050 |
WU340,XZU342..75T T=0.30 |
1 | ||
| 41153-37060 |
WU340,XZU342..75T T=0.40 |
1 | ||
| 41153-37080 |
WU340,XZU342..75T T=0.50 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80209 |
WU340,XZU342..75T *FGR=45:7=6.428 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90033-66038 |
WU340,XZU342..75T |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90033-66038 |
WU340,XZU342..75T |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90033-66038 |
WU340,XZU342..75T |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90033-11039 |
WU340,XZU342..75T |
1 | ||
| 41201H - RING, DRIVE PINION CYLINDRICAL ROLLER BEARING LOCKING | ||||
| 90035-20019 |
WU340,XZU342..75T |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37060 |
WU340,XZU342..75T |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90031-09055 |
WU340,XZU342..75T |
12 | ||
| 90031-01193 |
WU340..65T..GEN;WU302,342,XZU307,327,337,347..WT |
16 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-37280 |
WU340,XZU342..75T T=14.050 |
1 | ||
| 41231-37240 |
WU340,XZU342..75T T=13.950 |
1 | ||
| 41231-37270 |
WU340,XZU342..75T T=14.025 |
1 | ||
| 41231-37260 |
WU340,XZU342..75T T=14.000 |
1 | ||
| 41231-37220 |
WU340,XZU342..75T T=13.900 |
1 | ||
| 41231-37230 |
WU340,XZU342..75T T=13.925 |
1 | ||
| 41231-37340 |
WU340,XZU342..75T T=14.200 |
1 | ||
| 41231-37300 |
WU340,XZU342..75T T=14.100 |
1 | ||
| 41231-37250 |
WU340,XZU342..75T T=13.975 |
1 | ||
| 41231-37320 |
WU340,XZU342..75T T=14.150 |
1 | ||
| 41231-37290 |
WU340,XZU342..75T T=14.075 |
1 | ||
| 41231-37370 |
WU340,XZU342..75T T=14.275 |
1 | ||
| 41231-37350 |
WU340,XZU342..75T T=14.225 |
1 | ||
| 41231-37360 |
WU340,XZU342..75T T=14.250 |
1 | ||
| 41231-37310 |
WU340,XZU342..75T T=14.125 |
1 | ||
| 41231-37390 |
WU340,XZU342..75T T=14.325 |
1 | ||
| 41231-37330 |
WU340,XZU342..75T T=14.175 |
1 | ||
| 41231-37400 |
WU340,XZU342..75T T=14.350 |
1 | ||
| 41231-37410 |
WU340,XZU342..75T T=14.375 |
1 | ||
| 41231-37380 |
WU340,XZU342..75T T=14.300 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 37341-89203 |
WU340,XZU342..75T |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90033-66039 |
WU340,XZU342..75T |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90033-66039 |
WU340,XZU342..75T |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-37020 |
WU340,XZU342..75T |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90031-05044 |
WU340,XZU342..75T |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37010 |
WU340,XZU342..75T |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37010 |
WU340,XZU342..75T |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-37010 |
WU340,XZU342..75T |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37030 |
WU340,XZU342..75T |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37030 |
WU340,XZU342..75T |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37020 |
WU340,XZU342..75T |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37020 |
WU340,XZU342..75T |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37020 |
WU340,XZU342..75T |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37020 |
WU340,XZU342..75T |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37010 |
WU340,XZU342..75T |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37010 |
WU340,XZU342..75T |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37010 |
WU340,XZU342..75T |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37010 |
WU340,XZU342..75T |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37010 |
WU340,XZU342..75T T=2.0 |
2 | ||
| 41361-37020 |
WU340,XZU342..75T T=2.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37010 |
WU340,XZU342..75T T=2.0 |
2 | ||
| 41361-37020 |
WU340,XZU342..75T T=2.0 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-37010 |
WU340,XZU342..75T |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-37030 |
WU340,XZU342..75T |
1 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01192 | ||||
| 90031-19101 | ||||
| 90031-19102 | ||||
| 90031-70110 | ||||
| 90032-01155 | ||||
| 90033-01069 | ||||
| 90179-30003 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
