XZU342R-TKMQSD3 (2002)

Toyota Dyna

Production Sep 2002 - Dec 2006
Engine S05C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(0209- )

Click highlighted areas on diagram

INNER MIRROR

diagram 87810 87810 87810B 87810B 87819 87819 9015260015 9015260015
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0W040C0

BU303,343,WU300,340,XZU342..IDN

BLACK,TRIM1#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0W040C0

BU303,343,WU300,340,XZU342..IDN

BLACK,TRIM1#

 1
87819 - LENS, INNER RR VIEW MIRROR ROOM LAMP
87819-0W010

BU303,343,WU300,340,XZU342..IDN

 1
87819 - LENS, INNER RR VIEW MIRROR ROOM LAMP
87819-0W010

BU303,343,WU300,340,XZU342..IDN

 1
Common parts
90152-60015

ILLUST NO. 1 OF 3(0209-1005)DCRTH,DCRTJ,DSL..IDN

Click highlighted areas on diagram

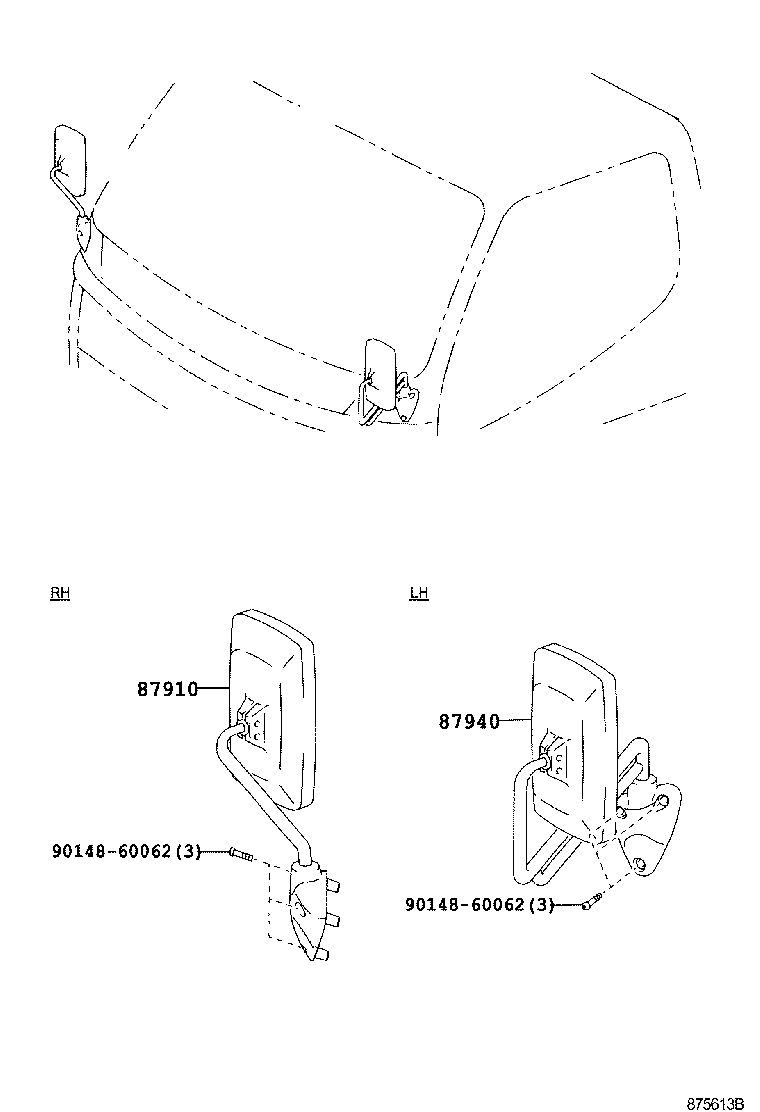

OUTER MIRROR

diagram 87910 87940 9014860062 9014860062
Part # Description Qty Price
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-0W050

BU303,343,WU300,340,XZU342..IDN

NO PAINT REQ.

 1
87910-0W050

BU303,343,WU300,340,XZU342..IDN

NO PAINT REQ.

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-0W050

BU303,343,WU300,340,XZU342..IDN

NO PAINT REQ.

 1
87940-0W050A1

BU303,343,WU300,340,XZU342..IDN

NO PAINT REQ.,WHITE,058

 1
Common parts
90148-60062

ILLUST NO. 1 OF 3(0212-0610)BU303,343,XZU300,320,330,340..LHD ; (0610-1106)LHD..GEN,TAIW ; (0610-

Click highlighted areas on diagram

OUTER MIRROR

diagram 87093A 87094A 87094A 87901B 87901B 87906B 87906B 87907 87910 87910 87914A 87914A 87914A 87914A 87940 87940 9011908C00 9011908C00 9011908C00 9011908C00 9011908C00 9011908C00 9011908C00 9011908C00
Part # Description Qty Price
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-0W050

BU303,343,WU300,340,XZU342..IDN

NO PAINT REQ.

 1
87910-0W050

BU303,343,WU300,340,XZU342..IDN

NO PAINT REQ.

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-0W050

BU303,343,WU300,340,XZU342..IDN

NO PAINT REQ.

 1
87910-0W050

BU303,343,WU300,340,XZU342..IDN

NO PAINT REQ.

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-0W050

BU303,343,WU300,340,XZU342..IDN

NO PAINT REQ.

 1
87940-0W050A1

BU303,343,WU300,340,XZU342..IDN

NO PAINT REQ.,WHITE,058

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-0W050

BU303,343,WU300,340,XZU342..IDN

NO PAINT REQ.

 1
87940-0W050A1

BU303,343,WU300,340,XZU342..IDN

NO PAINT REQ.,WHITE,058

 1
Common parts
90119-08C00
