XZU340L-TKMSWR3 (2002)
Toyota Dyna

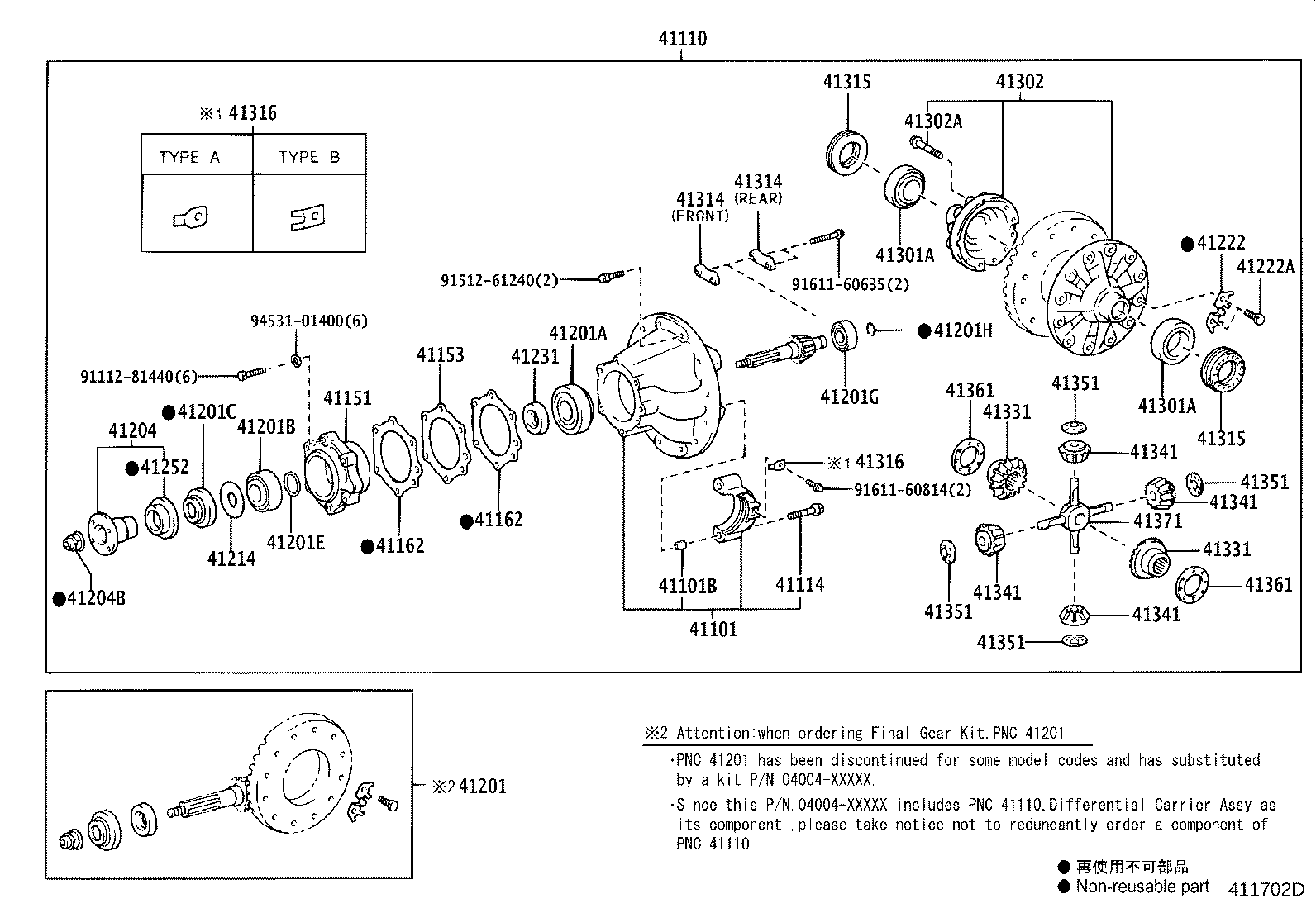

ILLUST NO. 1 OF 2(0209-0312)BU303,WU300..T3 ; (0209-0312)55T,65T,80T..ARL,GCC,GEN,IDN,TAIW
12 INCHES DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-37060 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 41101-36040 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 41101-37060 |
BU300,340 |
1 | ||
| 41101B - PIN, RING (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90253-22002 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-37180 |
XZU330,340..80T *FGR=37:6=6.167 |
1 | ||
| 41110-37400 |
XZU330,340..80T *FGR=37:6=6.167 |
1 | ||
| 41110-37370 |
BU300,340..T3 *FGR=43:8=5.375 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90031-05043 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
4 | ||
| 90105-16009 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 90031-05043 |
BU300,340 |
4 | ||
| 41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41151-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 41151-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) |
1 | ||
| 41151-37030 |
BU300,340 |
1 | ||
| 41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE | ||||
| 41153-36020 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=0.15 |
1 | ||
| 41153-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=0.10 |
1 | ||
| 41153-36030 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=0.25 |
1 | ||
| 41153-36040 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=0.45 |
1 | ||
| 41153-37110 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.45 |
1 | ||
| 41153-37090 |
BU300,340 T=0.30 |
1 | ||
| 41153-37100 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.40 |
1 | ||
| 41153-37120 |
BU300,340 T=0.50 |
1 | ||
| 41153-37090 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.30 |
1 | ||
| 41153-37110 |
BU300,340 T=0.45 |
1 | ||
| 41153-37120 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.50 |
1 | ||
| 41153-37100 |
BU300,340 T=0.40 |
1 | ||
| 41162 - GASKET, DIFFERENTIAL DRIVE PINION COVER | ||||
| 41162-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) |
2 | ||
| 41162 - GASKET, DIFFERENTIAL DRIVE PINION COVER | ||||
| 41162-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) |
2 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-49001 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90033-66040 |
BU300,340 NO.2 |
1 | ||
| 90033-66038 |
BU300,340 NO.1 |
1 | ||
| 90366-45001 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 90033-66038 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.1 |
1 | ||
| 90033-65002 |
BU300,340 NO.3 |
1 | ||
| 90033-66040 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.2 |
1 | ||
| 90033-65002 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.3 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-58010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 90033-11039 |
BU300,340 |
1 | ||
| 90033-11039 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-45025 |
XZU300..65T;BU300,340..T3 T=1.90,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45027 |
XZU300..65T;BU300,340..T3 T=2.10,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45020 |
XZU300..65T;BU300,340..T3 T=1.80,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45021 |
XZU300..65T;BU300,340..T3 T=1.82,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45023 |
XZU300..65T;BU300,340..T3 T=1.86,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45024 |
XZU300..65T;BU300,340..T3 T=1.88,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45026 |
XZU300..65T;BU300,340..T3 T=2.00,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45032 |
XZU300..65T;BU300,340..T3 T=2.60,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45022 |
XZU300..65T;BU300,340..T3 T=1.84,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45029 |
XZU300..65T;BU300,340..T3 T=2.30,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45035 |
XZU300..65T;BU300,340..T3 T=2.90,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45031 |
XZU300..65T;BU300,340..T3 T=2.50,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45033 |
XZU300..65T;BU300,340..T3 T=2.70,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45050 |
XZU300..65T;BU300,340..T3 T=1.89,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45034 |
XZU300..65T;BU300,340..T3 T=2.80,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45036 |
XZU300..65T;BU300,340..T3 T=3.00,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45047 |
XZU300..65T;BU300,340..T3 T=1.83,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45030 |
XZU300..65T;BU300,340..T3 T=2.40,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45049 |
XZU300..65T;BU300,340..T3 T=1.87,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45028 |
XZU300..65T;BU300,340..T3 T=2.20,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45048 |
XZU300..65T;BU300,340..T3 T=1.85,12INCHES DIFFERENTIAL |
1 | ||
| 90564-45046 |
XZU300..65T;BU300,340..T3 T=1.81,12INCHES DIFFERENTIAL |
1 | ||
| 41201G - BEARING, DIFFERENTIAL DRIVE PINION CYLINDLICAL ROLLER | ||||
| 90365-25030 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) |
1 | ||
| 41201H - RING, DRIVE PINION CYLINDRICAL ROLLER BEARING LOCKING | ||||
| 90520-23034 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) |
1 | ||
| 90035-20024 |
BU300,340 |
1 | ||
| 90035-20024 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37030 |
BU300,340,XZU300,320,330,34#..55T,65T,80T |
1 | ||
| 41204-37080 |
BU300,340 |
1 | ||
| 41204-37080 |
XZU30#,320,330,340,345 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-24001 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-36020 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-36030 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
6 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90031-01193 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
16 | ||
| 90101-16015 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
12 | ||
| 90031-01193 |
BU300,340 |
16 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-37440 |
BU300,340 T=14.450 |
1 | ||
| 41231-37490 |
BU300,340 T=14.575 |
1 | ||
| 41231-37450 |
BU300,340 T=14.475 |
1 | ||
| 41231-37500 |
BU300,340 T=14.600 |
1 | ||
| 41231-37420 |
BU300,340 T=14.400 |
1 | ||
| 41231-37470 |
BU300,340 T=14.525 |
1 | ||
| 41231-37530 |
BU300,340 T=14.675 |
1 | ||
| 41231-37430 |
BU300,340 T=14.425 |
1 | ||
| 41231-37510 |
BU300,340 T=14.625 |
1 | ||
| 41231-36050 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 41231-37520 |
BU300,340 T=14.650 |
1 | ||
| 41231-37460 |
BU300,340 T=14.500 |
1 | ||
| 41231-37600 |
BU300,340 T=14.850 |
1 | ||
| 41231-37580 |
BU300,340 T=14.800 |
1 | ||
| 41231-37480 |
BU300,340 T=14.550 |
1 | ||
| 41231-37570 |
BU300,340 T=14.775 |
1 | ||
| 41231-37540 |
BU300,340 T=14.700 |
1 | ||
| 41231-37480 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.550 |
1 | ||
| 41231-37450 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.475 |
1 | ||
| 41231-37550 |
BU300,340 T=14.725 |
1 | ||
| 41231-37420 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.400 |
1 | ||
| 41231-37430 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.425 |
1 | ||
| 41231-37560 |
BU300,340 T=14.750 |
1 | ||
| 41231-37610 |
BU300,340 T=14.875 |
1 | ||
| 41231-37490 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.575 |
1 | ||
| 41231-37590 |
BU300,340 T=14.825 |
1 | ||
| 41231-37440 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.450 |
1 | ||
| 41231-37460 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.500 |
1 | ||
| 41231-37530 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.675 |
1 | ||
| 41231-37510 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.625 |
1 | ||
| 41231-37500 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.600 |
1 | ||
| 41231-37520 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.650 |
1 | ||
| 41231-37560 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.750 |
1 | ||
| 41231-37540 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.700 |
1 | ||
| 41231-37470 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.525 |
1 | ||
| 41231-37550 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.725 |
1 | ||
| 41231-37590 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.825 |
1 | ||
| 41231-37600 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.850 |
1 | ||
| 41231-37570 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.775 |
1 | ||
| 41231-37610 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.875 |
1 | ||
| 41231-37580 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.800 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-37030 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 37341-89203 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
1 | ||
| 37341-89203 |
BU300,340 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60001 |
XZU300..55T;BU30#,WU300..WT..(ARL,GCC,GEN)..(T4,TS);BU343,WU340,XZU320,330,340..GCC,GEN,TAIW |
2 | ||
| 90366-55054 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 90366-55054 |
BU300,340 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60001 |
XZU300..55T;BU30#,WU300..WT..(ARL,GCC,GEN)..(T4,TS);BU343,WU340,XZU320,330,340..GCC,GEN,TAIW |
2 | ||
| 90366-55054 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 90366-55054 |
BU300,340 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-37040 |
BU300,340 |
1 | ||
| 41301-36040 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 41301-37040 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90031-05098 |
BU300,340 |
8 | ||
| 90105-12047 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) |
13 | ||
| 90031-05098 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
8 | ||
| 41314 - RETAINER, DRIVE PINION BEARING | ||||
| 41304-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) FRONT |
1 | ||
| 41314-36010 |
BU303..WT;BU30#,34#,WU300,340,XZU300,320,330,34#..(48T,55T,65T,80T)..(ARL,GEN,IDN,TAIW)..(T3,T4) REAR |
1 | ||
| 41314 - RETAINER, DRIVE PINION BEARING | ||||
| 41304-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) FRONT |
1 | ||
| 41314-36010 |
BU303..WT;BU30#,34#,WU300,340,XZU300,320,330,34#..(48T,55T,65T,80T)..(ARL,GEN,IDN,TAIW)..(T3,T4) REAR |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
BU300,340 |
2 | ||
| 41315-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 41315-36020 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
BU300,340 |
2 | ||
| 41315-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 41315-36020 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-37010 |
BU300,340 |
2 | ||
| 41317-36020 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) TYPE B:REFER ILLUST. |
2 | ||
| 41316-37010 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
2 | ||
| 41316-36020 |
BU30#,34#,WU300,340,XZU300,320,330,340..WT..(ARL,GCC,GEN,TAIW) 12INCHES DIFFERENTIAL;TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-37010 |
BU300,340 |
2 | ||
| 41317-36020 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) TYPE B:REFER ILLUST. |
2 | ||
| 41316-37010 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
2 | ||
| 41316-36020 |
BU30#,34#,WU300,340,XZU300,320,330,340..WT..(ARL,GCC,GEN,TAIW) 12INCHES DIFFERENTIAL;TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37040 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 41331-36031 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
2 | ||
| 41331-37040 |
BU300,340 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37040 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 41331-36031 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
2 | ||
| 41331-37040 |
BU300,340 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 41341-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
4 | ||
| 41341-37030 |
BU300,340 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 41341-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
4 | ||
| 41341-37030 |
BU300,340 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 41341-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
4 | ||
| 41341-37030 |
BU300,340 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 41341-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
4 | ||
| 41341-37030 |
BU300,340 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 41351-37020 |
BU300,340 |
4 | ||
| 41351-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 41351-37020 |
BU300,340 |
4 | ||
| 41351-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 41351-37020 |
BU300,340 |
4 | ||
| 41351-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 41351-37020 |
BU300,340 |
4 | ||
| 41351-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-36030 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=1.6 |
2 | ||
| 41361-36020 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=1.5 |
2 | ||
| 41361-36040 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=1.7 |
2 | ||
| 41361-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=1.4 |
2 | ||
| 41361-37030 |
BU300,340 T=2.0 |
2 | ||
| 41361-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=2.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-36030 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=1.6 |
2 | ||
| 41361-36020 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=1.5 |
2 | ||
| 41361-36040 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=1.7 |
2 | ||
| 41361-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=1.4 |
2 | ||
| 41361-37030 |
BU300,340 T=2.0 |
2 | ||
| 41361-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=2.0 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-37020 |
BU300,340 |
1 | ||
| 41371-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 41371-37020 |
BU303,WU300..T3;BU303,343,WU300,340,XZU30#,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) |
1 | ||
| 41371-36020 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| Common parts | ||||
| 91112-81440 | ||||
| 91512-61240 | ||||
| 91611-60635 | ||||
| 91611-60814 | ||||
| 94531-01400 | ||||
ILLUST NO. 2 OF 2(0209-0610)BU303,WU300..T3 ; (0209-0610)55T,65T,80T..ARL,GCC,GEN,IDN,TAIW ; (0610-0

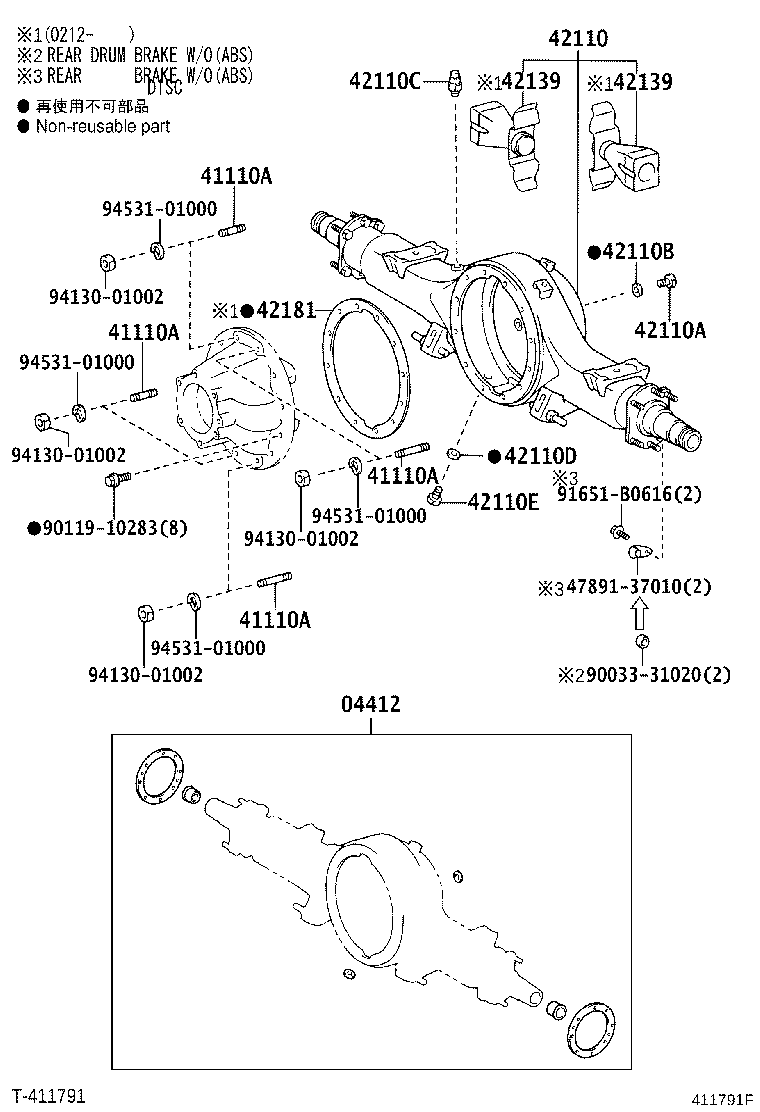

12 INCHES DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-37090 |
XZU330,340..80T |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10059 |
BU300,340 S=19 & 12,L=57 |
2 | ||
| 90116-10060 |
BU300,340 S=19 & 12,L=46 |
2 | ||
| 90116-10060 |
XZU320,340;XZU330..80T S=19 & 12,L=46 |
2 | ||
| 90116-10059 |
XZU320,340;XZU330..80T S=19 & 12,L=57 |
2 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10059 |
BU300,340 S=19 & 12,L=57 |
2 | ||
| 90116-10060 |
BU300,340 S=19 & 12,L=46 |
2 | ||
| 90116-10060 |
XZU320,340;XZU330..80T S=19 & 12,L=46 |
2 | ||
| 90116-10059 |
XZU320,340;XZU330..80T S=19 & 12,L=57 |
2 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10059 |
BU300,340 S=19 & 12,L=57 |
2 | ||
| 90116-10060 |
BU300,340 S=19 & 12,L=46 |
2 | ||
| 90116-10060 |
XZU320,340;XZU330..80T S=19 & 12,L=46 |
2 | ||
| 90116-10059 |
XZU320,340;XZU330..80T S=19 & 12,L=57 |
2 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10059 |
BU300,340 S=19 & 12,L=57 |
2 | ||
| 90116-10060 |
BU300,340 S=19 & 12,L=46 |
2 | ||
| 90116-10060 |
XZU320,340;XZU330..80T S=19 & 12,L=46 |
2 | ||
| 90116-10059 |
XZU320,340;XZU330..80T S=19 & 12,L=57 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-37280 |
BU300,340 W/O(ABS);12INCHES DIFFERENTIAL |
1 | ||
| 42110-37300 |
XZU330,340..80T 12INCHES DIFFERENTIAL |
1 | ||
| 42110-37490 |
XZU330,340..80T 12INCHES DIFFERENTIAL |
1 | ||
| 42110-37380 |
BU300,340 12INCHES DIFFERENTIAL |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
BU300,340 |
1 | ||
| 90341-18006 |
BU303,343,WU300,340,XZU30#,320,330,34#..(48T,55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
BU303,343,WU300,340,XZU30#,320,330,34#..(48T,55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) |
1 | ||
| 12157-10010 |
BU300,340 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03138 |
BU300,340 |
1 | ||
| 90930-03138 |
WU340,XZU342..(55T,65T)..(GCC,IDN);BU303,343,WU300,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
BU300,340 |
1 | ||
| 12157-10010 |
BU303,343,WU300,340,XZU30#,320,330,34#..(48T,55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
BU300,340 |
1 | ||
| 90341-18057 |
BU303,343,WU300,340,XZU30#,320,330,34#..(48T,55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-37020 |
BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 42108-37020 |
BU300,340 |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-37020 |
BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 42108-37020 |
BU300,340 |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 42181-37030 |
BU300,340 |
1 | ||
| 42181-36070 |
XZU320,340;XZU330..80T 12INCHES DIFFERENTIAL |
1 | ||
| Common parts | ||||
| 47891-37010 | ||||
| 90033-31020 | ||||
| 90119-10283 | ||||
| 91651-B0616 | ||||
| 94130-01002 | ||||
| 94531-01000 | ||||
ILLUST NO. 1 OF 2(0312-0610)XZU30#,320,330,34#..55T,65T,80T ; (0610-0612)XZU342..65T
12 INCHES DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-37060 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 41101-36040 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 41101-37060 |
BU300,340 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-37180 |
XZU330,340..80T *FGR=37:6=6.167 |
1 | ||
| 41110-37400 |
XZU330,340..80T *FGR=37:6=6.167 |
1 | ||
| 41110-37370 |
BU300,340..T3 *FGR=43:8=5.375 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90031-05043 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
4 | ||
| 90105-16009 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 90031-05043 |
BU300,340 |
4 | ||
| 41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41151-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 41151-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) |
1 | ||
| 41151-37030 |
BU300,340 |
1 | ||
| 41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE | ||||
| 41153-36020 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=0.15 |
1 | ||
| 41153-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=0.10 |
1 | ||
| 41153-36030 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=0.25 |
1 | ||
| 41153-36040 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=0.45 |
1 | ||
| 41153-37110 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.45 |
1 | ||
| 41153-37090 |
BU300,340 T=0.30 |
1 | ||
| 41153-37100 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.40 |
1 | ||
| 41153-37120 |
BU300,340 T=0.50 |
1 | ||
| 41153-37090 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.30 |
1 | ||
| 41153-37110 |
BU300,340 T=0.45 |
1 | ||
| 41153-37120 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.50 |
1 | ||
| 41153-37100 |
BU300,340 T=0.40 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90033-66040 |
BU300,340 NO.2 |
1 | ||
| 90033-66038 |
BU300,340 NO.1 |
1 | ||
| 90366-45001 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 90033-66038 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.1 |
1 | ||
| 90033-65002 |
BU300,340 NO.3 |
1 | ||
| 90033-66040 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.2 |
1 | ||
| 90033-65002 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.3 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90033-66040 |
BU300,340 NO.2 |
1 | ||
| 90033-66038 |
BU300,340 NO.1 |
1 | ||
| 90366-45001 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 90033-66038 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.1 |
1 | ||
| 90033-65002 |
BU300,340 NO.3 |
1 | ||
| 90033-66040 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.2 |
1 | ||
| 90033-65002 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.3 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90033-66040 |
BU300,340 NO.2 |
1 | ||
| 90033-66038 |
BU300,340 NO.1 |
1 | ||
| 90366-45001 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 90033-66038 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.1 |
1 | ||
| 90033-65002 |
BU300,340 NO.3 |
1 | ||
| 90033-66040 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.2 |
1 | ||
| 90033-65002 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.3 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-58010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 90033-11039 |
BU300,340 |
1 | ||
| 90033-11039 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
1 | ||
| 41201H - RING, DRIVE PINION CYLINDRICAL ROLLER BEARING LOCKING | ||||
| 90520-23034 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) |
1 | ||
| 90035-20024 |
BU300,340 |
1 | ||
| 90035-20024 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37030 |
BU300,340,XZU300,320,330,34#..55T,65T,80T |
1 | ||
| 41204-37080 |
BU300,340 |
1 | ||
| 41204-37080 |
XZU30#,320,330,340,345 |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90031-01193 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
16 | ||
| 90101-16015 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
12 | ||
| 90031-01193 |
BU300,340 |
16 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-37440 |
BU300,340 T=14.450 |
1 | ||
| 41231-37490 |
BU300,340 T=14.575 |
1 | ||
| 41231-37450 |
BU300,340 T=14.475 |
1 | ||
| 41231-37500 |
BU300,340 T=14.600 |
1 | ||
| 41231-37420 |
BU300,340 T=14.400 |
1 | ||
| 41231-37470 |
BU300,340 T=14.525 |
1 | ||
| 41231-37530 |
BU300,340 T=14.675 |
1 | ||
| 41231-37430 |
BU300,340 T=14.425 |
1 | ||
| 41231-37510 |
BU300,340 T=14.625 |
1 | ||
| 41231-36050 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 41231-37520 |
BU300,340 T=14.650 |
1 | ||
| 41231-37460 |
BU300,340 T=14.500 |
1 | ||
| 41231-37600 |
BU300,340 T=14.850 |
1 | ||
| 41231-37580 |
BU300,340 T=14.800 |
1 | ||
| 41231-37480 |
BU300,340 T=14.550 |
1 | ||
| 41231-37570 |
BU300,340 T=14.775 |
1 | ||
| 41231-37540 |
BU300,340 T=14.700 |
1 | ||
| 41231-37480 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.550 |
1 | ||
| 41231-37450 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.475 |
1 | ||
| 41231-37550 |
BU300,340 T=14.725 |
1 | ||
| 41231-37420 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.400 |
1 | ||
| 41231-37430 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.425 |
1 | ||
| 41231-37560 |
BU300,340 T=14.750 |
1 | ||
| 41231-37610 |
BU300,340 T=14.875 |
1 | ||
| 41231-37490 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.575 |
1 | ||
| 41231-37590 |
BU300,340 T=14.825 |
1 | ||
| 41231-37440 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.450 |
1 | ||
| 41231-37460 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.500 |
1 | ||
| 41231-37530 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.675 |
1 | ||
| 41231-37510 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.625 |
1 | ||
| 41231-37500 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.600 |
1 | ||
| 41231-37520 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.650 |
1 | ||
| 41231-37560 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.750 |
1 | ||
| 41231-37540 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.700 |
1 | ||
| 41231-37470 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.525 |
1 | ||
| 41231-37550 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.725 |
1 | ||
| 41231-37590 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.825 |
1 | ||
| 41231-37600 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.850 |
1 | ||
| 41231-37570 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.775 |
1 | ||
| 41231-37610 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.875 |
1 | ||
| 41231-37580 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=14.800 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-37030 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 37341-89203 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
1 | ||
| 37341-89203 |
BU300,340 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60001 |
XZU300..55T;BU30#,WU300..WT..(ARL,GCC,GEN)..(T4,TS);BU343,WU340,XZU320,330,340..GCC,GEN,TAIW |
2 | ||
| 90366-55054 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 90366-55054 |
BU300,340 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60001 |
XZU300..55T;BU30#,WU300..WT..(ARL,GCC,GEN)..(T4,TS);BU343,WU340,XZU320,330,340..GCC,GEN,TAIW |
2 | ||
| 90366-55054 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 90366-55054 |
BU300,340 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-37040 |
BU300,340 |
1 | ||
| 41301-36040 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 41301-37040 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90031-05098 |
BU300,340 |
8 | ||
| 90105-12047 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) |
13 | ||
| 90031-05098 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
BU300,340 |
2 | ||
| 41315-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 41315-36020 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
BU300,340 |
2 | ||
| 41315-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 41315-36020 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-37010 |
BU300,340 |
2 | ||
| 41317-36020 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) TYPE B:REFER ILLUST. |
2 | ||
| 41316-37010 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
2 | ||
| 41316-36020 |
BU30#,34#,WU300,340,XZU300,320,330,340..WT..(ARL,GCC,GEN,TAIW) 12INCHES DIFFERENTIAL;TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37040 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 41331-36031 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
2 | ||
| 41331-37040 |
BU300,340 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37040 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 41331-36031 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
2 | ||
| 41331-37040 |
BU300,340 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 41341-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
4 | ||
| 41341-37030 |
BU300,340 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 41341-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
4 | ||
| 41341-37030 |
BU300,340 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 41341-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
4 | ||
| 41341-37030 |
BU300,340 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 41341-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
4 | ||
| 41341-37030 |
BU300,340 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 41351-37020 |
BU300,340 |
4 | ||
| 41351-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 41351-37020 |
BU300,340 |
4 | ||
| 41351-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 41351-37020 |
BU300,340 |
4 | ||
| 41351-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
4 | ||
| 41351-37020 |
BU300,340 |
4 | ||
| 41351-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-36030 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=1.6 |
2 | ||
| 41361-36020 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=1.5 |
2 | ||
| 41361-36040 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=1.7 |
2 | ||
| 41361-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=1.4 |
2 | ||
| 41361-37030 |
BU300,340 T=2.0 |
2 | ||
| 41361-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=2.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-36030 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=1.6 |
2 | ||
| 41361-36020 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=1.5 |
2 | ||
| 41361-36040 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=1.7 |
2 | ||
| 41361-36010 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) T=1.4 |
2 | ||
| 41361-37030 |
BU300,340 T=2.0 |
2 | ||
| 41361-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=2.0 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-37020 |
BU300,340 |
1 | ||
| 41371-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 41371-37020 |
BU303,WU300..T3;BU303,343,WU300,340,XZU30#,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) |
1 | ||
| 41371-36020 |
BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW) 12INCHES DIFFERENTIAL |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-37110 |
XZU330,340..80T |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-37110 |
XZU330,340..80T |
1 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01192 | ||||
| 90031-19101 | ||||
| 90031-19102 | ||||
| 90031-70110 | ||||
| 90032-01155 | ||||
| 90033-01069 | ||||
| 90179-30003 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
