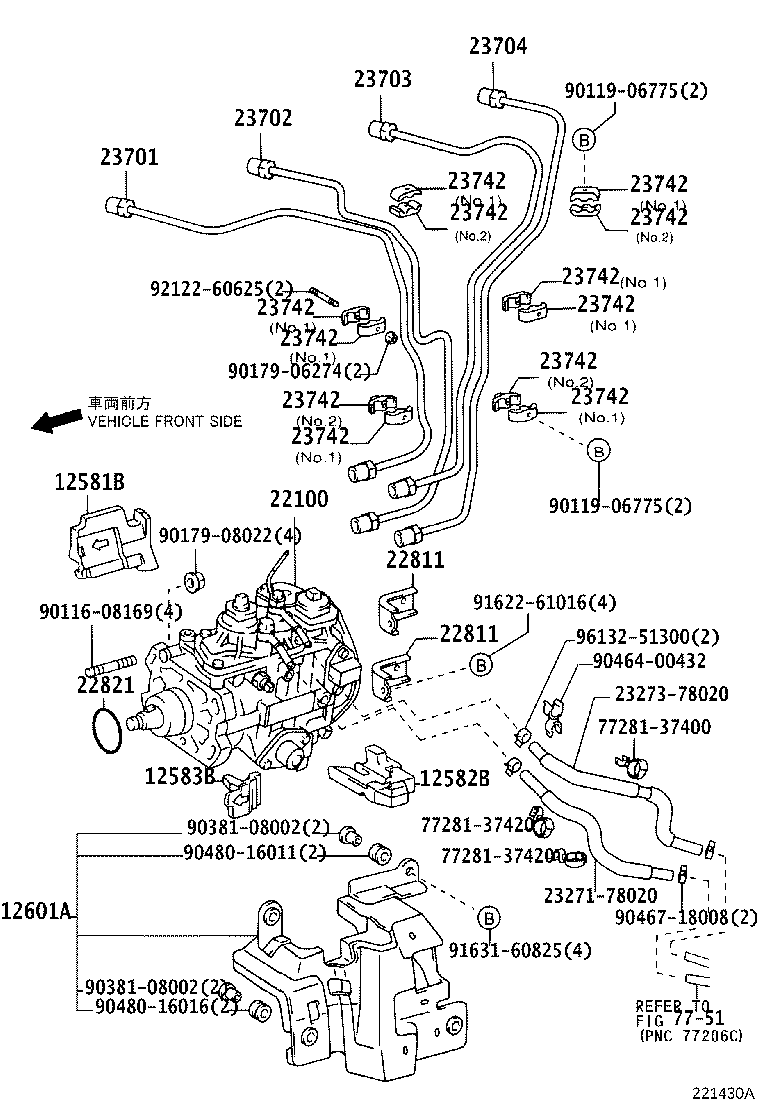

XZU340L-TKMSWR3 (2002)
Toyota Dyna
(0212- )15BFTE..BU300,340
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12581B - INSULATOR, CYLINDER BLOCK, NO.1 | ||||
| 12581-58051 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 12581-58051 |
15BFTE..BU300,340 |
1 | ||
| 12582B - INSULATOR, CYLINDER BLOCK, NO.2 | ||||
| 12582-58040 |
15BFTE..BU300,340 |
1 | ||
| 12583B - INSULATOR, CYLINDER BLOCK, NO.3 | ||||
| 12583-58020 |
15BFTE..BU300,340 |
1 | ||
| 12601A - INSULATOR, CYLINDER BLOCK | ||||
| 12601-58011 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 12601-58011 |
15BFTE..BU300,340 |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-5C591 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 22100-5C660 |
15BFTE..BU300,340 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-58060 |
15BFTE..BU300,340 |
2 | ||
| 22811-58060 |
15BFTE..XZU300,320,330,340 |
2 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-58060 |
15BFTE..BU300,340 |
2 | ||
| 22811-58060 |
15BFTE..XZU300,320,330,340 |
2 | ||
| 22821 - GASKET, INJECTION PUMP | ||||
| 90301-49003 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 90301-49003 |
14B,15BFTE..BU30#,34# |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-58050 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 23701-58071 |
15BFTE..BU300,340 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-58050 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 23702-58071 |
15BFTE..BU300,340 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-58071 |
15BFTE..BU300,340 |
1 | ||
| 23703-58050 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-58071 |
15BFTE..BU300,340 |
1 | ||
| 23704-58050 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| Common parts | ||||
| 23271-78020 | ||||
| 23273-78020 | ||||
| 77281-37400 | ||||
| 77281-37420 | ||||
| 90116-08169 | ||||
| 90119-06775 | ||||
| 90179-06274 | ||||
| 90179-08022 | ||||
| 90381-08002 | ||||
| 90464-00432 | ||||
| 90467-18008 | ||||
| 90480-16011 | ||||
| 90480-16016 | ||||
| 91622-61016 | ||||
| 91631-60825 | ||||
| 92122-60625 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 7751 | ||||
(0212-0610)15BFTE..XZU300,320,330,340
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12581B - INSULATOR, CYLINDER BLOCK, NO.1 | ||||
| 12581-58051 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 12581-58051 |
15BFTE..BU300,340 |
1 | ||
| 12601A - INSULATOR, CYLINDER BLOCK | ||||
| 12601-58011 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 12601-58011 |
15BFTE..BU300,340 |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-5C591 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 22100-5C660 |
15BFTE..BU300,340 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-58060 |
15BFTE..BU300,340 |
2 | ||
| 22811-58060 |
15BFTE..XZU300,320,330,340 |
2 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-58060 |
15BFTE..BU300,340 |
2 | ||
| 22811-58060 |
15BFTE..XZU300,320,330,340 |
2 | ||
| 22821 - GASKET, INJECTION PUMP | ||||
| 90301-49003 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 90301-49003 |
14B,15BFTE..BU30#,34# |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-58050 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 23701-58071 |
15BFTE..BU300,340 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-58050 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 23702-58071 |
15BFTE..BU300,340 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-58071 |
15BFTE..BU300,340 |
1 | ||
| 23703-58050 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-58071 |
15BFTE..BU300,340 |
1 | ||
| 23704-58050 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58030 |
15BFTE..XZU300,320,330,340 NO.2 |
4 | ||
| 23741-58020 |
15BFTE..XZU300,320,330,340 NO.1 |
8 | ||
| 23741-58020 |
15BFTE..BU300,340 NO.1 |
8 | ||
| 23742-58030 |
15BFTE..BU300,340 NO.2 |
4 | ||
| Common parts | ||||
| 23271-78020 | ||||
| 23271-78060 | ||||
| 23273-78020 | ||||
| 23273-78060 | ||||
| 77281-37400 | ||||
| 77281-37420 | ||||
| 90116-08169 | ||||
| 90119-06775 | ||||
| 90179-06274 | ||||
| 90179-08022 | ||||
| 90381-08002 | ||||
| 90464-00432 | ||||
| 90467-18008 | ||||
| 90480-16011 | ||||
| 90480-16016 | ||||
| 91622-61016 | ||||
| 91631-60825 | ||||
| 92122-60625 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 7751 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
