XZU340L-TKMSWR3 (1999)

Toyota Dyna

Production Jul 1999 - Dec 2002
Engine 15BFTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

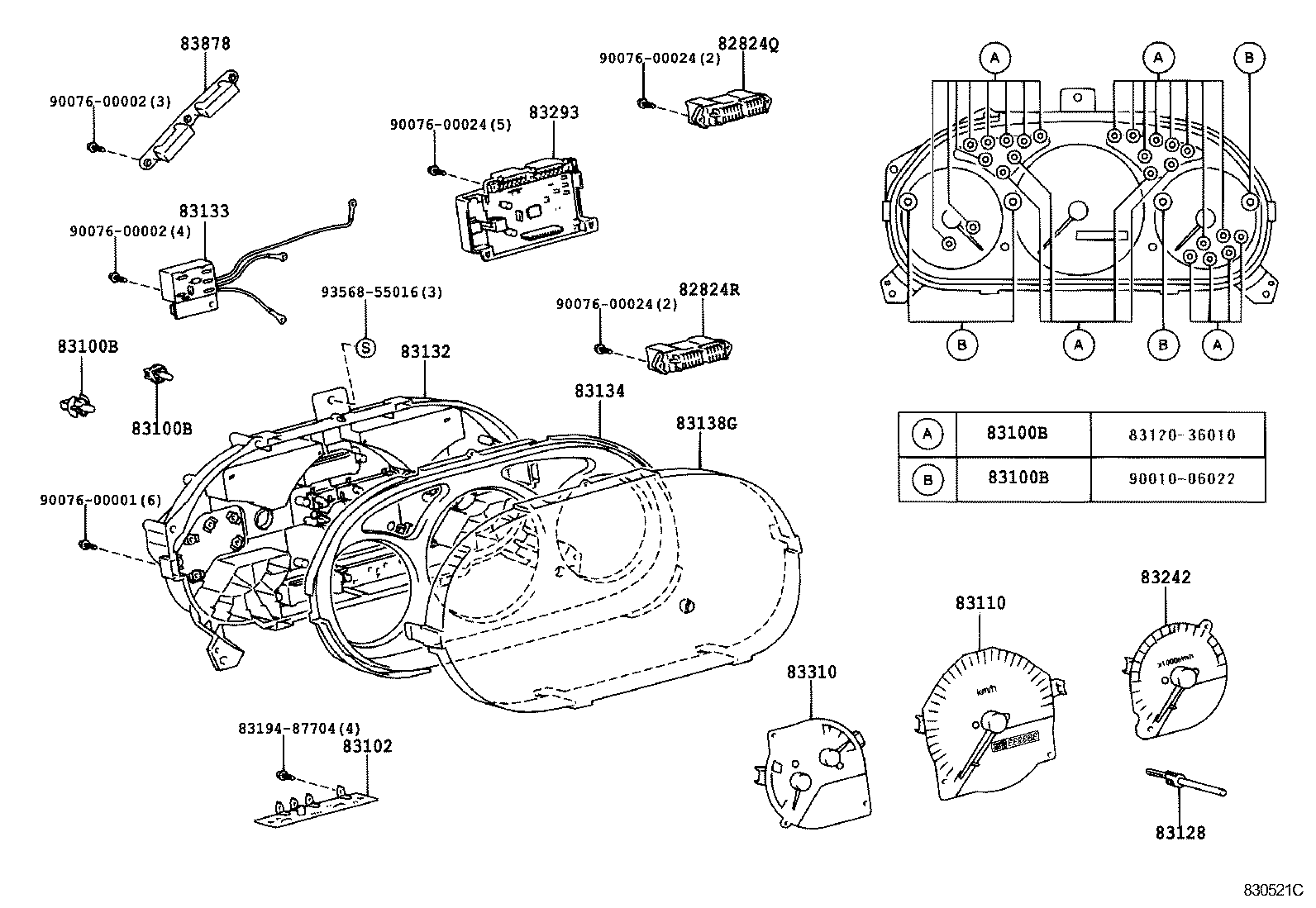

ILLUST NO. 1 OF 3(9907-0206)

Click highlighted areas on diagram

METER

diagram 82824Q 82824R 83100B 83100B 83100B 83100B 83102 83110 83128 83132 83133 83134 83138G 8319487704 83242 83293 83310 83878 9007600001 9007600002 9007600002 9007600024 9007600024 9007600024 9356855016
Part # Description Qty Price
82824Q - CONNECTOR, WIRING HARNESS, NO.1(FOR SPEEDOMETER)
82824-28130

XZU30#,320,330,34#

 1
82824R - CONNECTOR, WIRING HARNESS, NO.2(FOR SPEEDOMETER)
82824-28150

XZU30#,320,330,34#

 1
83100B - BULB, COMBINATION METER, NO.1
90010-06022

XZU30#,320,330,34#

24V 3W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION

 1
83120-36010

XZU30#,320,330,34#

24V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION

 1
83100B - BULB, COMBINATION METER, NO.1
90010-06022

XZU30#,320,330,34#

24V 3W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION

 1
83120-36010

XZU30#,320,330,34#

24V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION

 1
83100B - BULB, COMBINATION METER, NO.1
90010-06022

XZU30#,320,330,34#

24V 3W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION

 1
83120-36010

XZU30#,320,330,34#

24V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION

 1
83100B - BULB, COMBINATION METER, NO.1
90010-06022

XZU30#,320,330,34#

24V 3W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION

 1
83120-36010

XZU30#,320,330,34#

24V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION

 1
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83861-37250

XZU30#,320,330,34#

 1
83110 - SPEEDOMETER ASSY
83220-37030

XZU300,320,330,340

 1
83128 - KNOB, TRIP COUNTER
83224-37250

XZU30#,320,330,34#

 1
83132 - CASE, COMBINATION METER
83841-37350

XZU300,320,330,340

 1
83133 - PLATE, COMBINATION METER, NO.1
83811-37250

XZU30#,320,330,34#

 1
83134 - COVER, COMBINATION METER, NO.1
83821-37610

XZU300,320,330,340

 1
83821-37250

XZU30#,320,330,34#

 1
83138G - GLASS, COMBINATION METER
83852-37250

XZU30#,320,330,34#

 1
83242 - TACHOMETER ASSY, ENGINE
83881-37350

XZU300,320,330,340

 1
83293 - COMPUTER, TOTAL COUNTER MODULE
83293-37050

XZU300,320,330,340

 1
83310 - GAGE ASSY, FUEL RECEIVER
83882-37350

XZU300,320,330,340

 1
83878 - RESISTOR, COMBINATION METER
83878-37250

XZU30#,320,330,34#

 1
Common parts
83194-87704
90076-00001
90076-00002
90076-00024
93568-55016

ILLUST NO. 3 OF 3(9907- )

Click highlighted areas on diagram

SPEED SENSOR

diagram 83181A 83181A
Part # Description Qty Price
83181A - SENSOR, SPEEDOMETER
83181-37050

XZU300,320,330,340

 1
83181A - SENSOR, SPEEDOMETER
83181-37050

XZU300,320,330,340

 1

ILLUST NO. 1 OF 3(0206-0212)

Click highlighted areas on diagram

METER

diagram 83100 83134 83138G 9356855016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-37700

XZU300,320,330,340

 1
83134 - COVER, COMBINATION METER, NO.1
83821-37610

XZU300,320,330,340

 1
83821-37250

XZU30#,320,330,34#

 1
83138G - GLASS, COMBINATION METER
83852-37250

XZU30#,320,330,34#

 1
Common parts
93568-55016
