XZU337L-TKMSBR3 (2006)
Toyota Dyna
Production
Oct 2006
-
Jan 2009
Engine
N04C
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

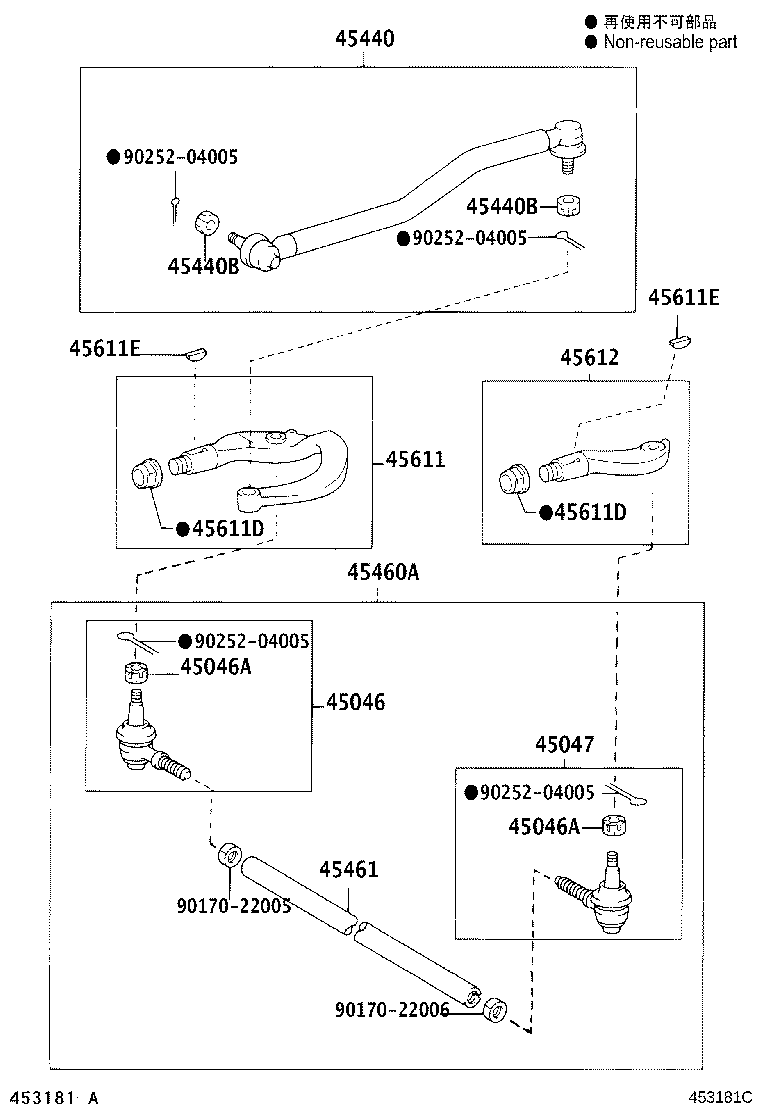

ILLUST NO. 3 OF 3(0209-0612)WU340..RHD..IV3 ; (0209-0612)BU30#,34#,WU300,XZU305,342,345..RHD ; (0612
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39426 |
XZU337,347..80T |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
XZU307,327,337,347 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
XZU307,327,337,347 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39266 |
XZU337,347..80T |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-39186 |
XZU337,347..80T |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
XZU307,327,337,347 |
2 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
XZU307,327,337,347 |
2 | ||
| 45460A - ROD ASSY, TIE | ||||
| 45460-39526 |
XZU337,347..80T |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-37060 |
XZU337,347..80T |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45612-39235 |
XZU337,347..80T |
1 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90178-26002 |
XZU307,327,337,347 |
2 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90178-26002 |
XZU307,327,337,347 |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45611-39115 |
XZU337,347..80T |
1 | ||
| Common parts | ||||
| 90170-22005 | ||||
| 90170-22006 | ||||
| 90252-04005 | ||||

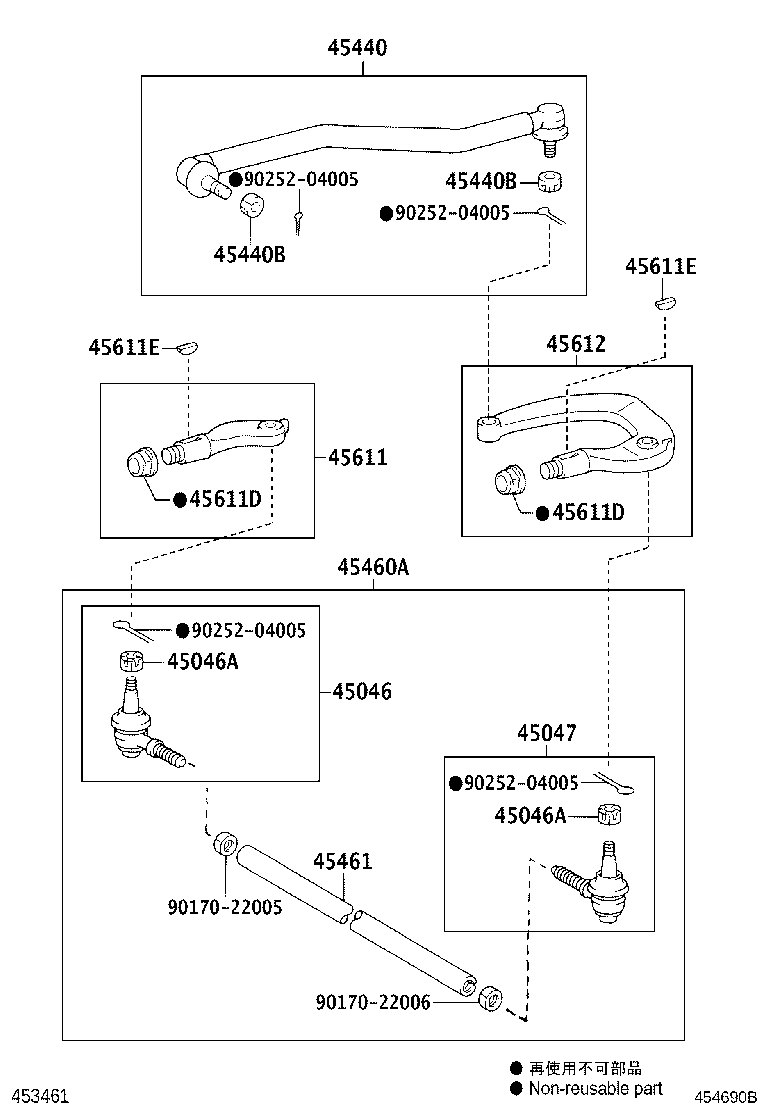

ILLUST NO. 2 OF 2(0610- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39426 |
XZU337,347..80T |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
XZU307,327,337,347 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
XZU307,327,337,347 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39266 |
XZU337,347..80T |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-39186 |
XZU337,347..80T |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
XZU307,327,337,347 |
2 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
XZU307,327,337,347 |
2 | ||
| 45460A - ROD ASSY, TIE | ||||
| 45460-39526 |
XZU337,347..80T |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-37060 |
XZU337,347..80T |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45612-39235 |
XZU337,347..80T |
1 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90178-26002 |
XZU307,327,337,347 |
2 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90178-26002 |
XZU307,327,337,347 |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45611-39115 |
XZU337,347..80T |
1 | ||
| Common parts | ||||
| 90170-22005 | ||||
| 90170-22006 | ||||
| 90252-04005 | ||||
