XZU337L-TKMQBR3 (2006)

Toyota Dyna

Production Oct 2006 - Jan 2009
Engine N04C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0901)XZU307,327,337,347

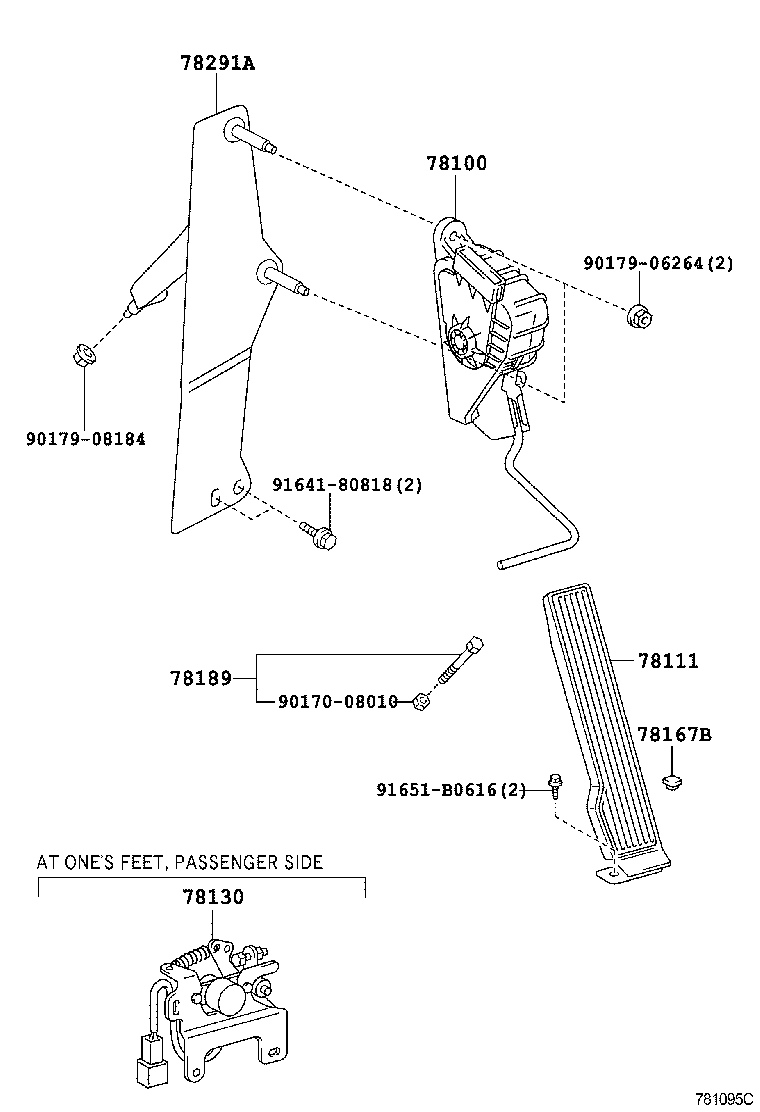

Click highlighted areas on diagram

diagram 78100 78111 78130 78167B 78189 78291A 9017008010 9017906264 9017908184 9164180818 91651B0616
Part # Description Qty Price
78100 - LINK ASSY, ACCELERATOR
78100-37820

XZU307,327,337,347

 1
78111 - PEDAL, ACCELERATOR
78010-37010

XZU307,327,337,347

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78130-37131

XZU307,327,337,347

 1
78167B - SEAL, ACCELERATOR CONTROL
78167-25010

XZU307,327,337,347

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-37100

XZU307,327,337,347

 1
78291A - BRACKET, ACCELERATOR LINK
78291-37060

XZU307,327,337,347

 1
Common parts
90170-08010
90179-06264
90179-08184
91641-80818
91651-B0616
