XZU337L-TKMQBR3 (2006)
Toyota Dyna

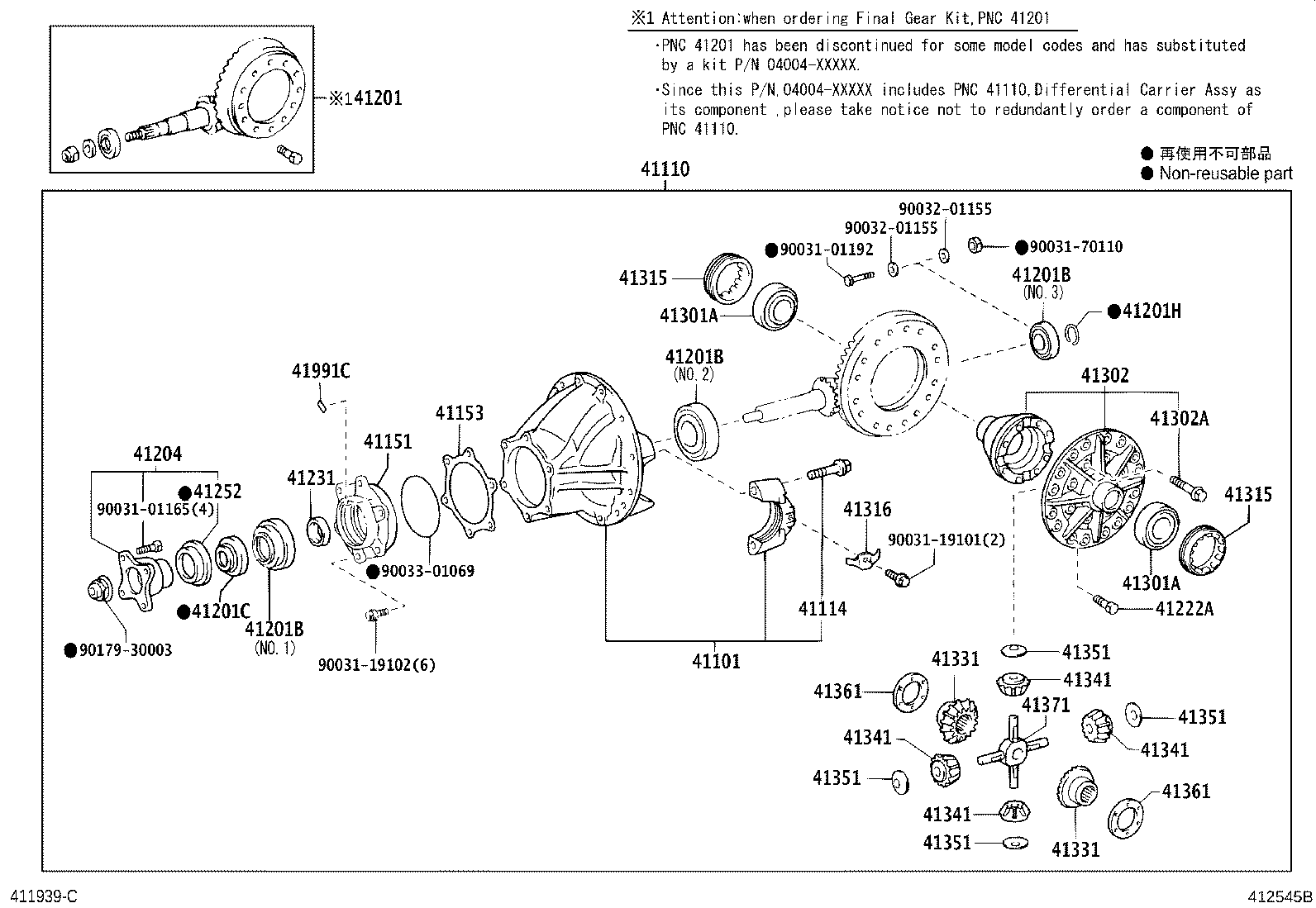

ILLUST NO. 1 OF 2(0610- )55T,65T..DCRTJ ; (0610- )WU340..65T..GEN ; (0610- )48T,55T,65T,75T
12 INCHES DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-37060 |
XZU307,327,337,347 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-37380 |
XZU327,337,347 *FGR=39:7=5.571 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90031-05043 |
XZU307,327,337,347 |
4 | ||
| 41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41151-37030 |
XZU307,327,337,347 |
1 | ||
| 41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE | ||||
| 41153-37100 |
XZU307,327,337,347 T=0.40 |
1 | ||
| 41153-37090 |
XZU307,327,337,347 T=0.30 |
1 | ||
| 41153-37120 |
XZU307,327,337,347 T=0.50 |
1 | ||
| 41153-37110 |
XZU307,327,337,347 T=0.45 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80218 |
XZU327,337;WU302,342,XZU347..55T,80T *FGR=39:7=5.571 |
1 | ||
| 41201-80547 |
XZU327,337,347 *FGR=39:7=5.571 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90033-66038 |
XZU307,327,337,347 NO.1 |
1 | ||
| 90033-65002 |
XZU307,327,337,347 NO.3 |
1 | ||
| 90033-66040 |
XZU307,327,337,347 NO.2 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90033-66038 |
XZU307,327,337,347 NO.1 |
1 | ||
| 90033-65002 |
XZU307,327,337,347 NO.3 |
1 | ||
| 90033-66040 |
XZU307,327,337,347 NO.2 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90033-66038 |
XZU307,327,337,347 NO.1 |
1 | ||
| 90033-65002 |
XZU307,327,337,347 NO.3 |
1 | ||
| 90033-66040 |
XZU307,327,337,347 NO.2 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90033-11039 |
XZU307,327,337,347 |
1 | ||
| 41201H - RING, DRIVE PINION CYLINDRICAL ROLLER BEARING LOCKING | ||||
| 90035-20024 |
XZU307,327,337,347 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37080 |
XZU307,327,337,347 |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90031-01193 |
WU340..65T..GEN;WU302,342,XZU307,327,337,347..WT |
16 | ||
| 90031-01203 |
XZU307,327,337,347 |
16 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-37450 |
XZU307,327,337,347 T=14.475 |
1 | ||
| 41231-37420 |
XZU307,327,337,347 T=14.400 |
1 | ||
| 41231-37430 |
XZU307,327,337,347 T=14.425 |
1 | ||
| 41231-37460 |
XZU307,327,337,347 T=14.500 |
1 | ||
| 41231-37500 |
XZU307,327,337,347 T=14.600 |
1 | ||
| 41231-37490 |
XZU307,327,337,347 T=14.575 |
1 | ||
| 41231-37440 |
XZU307,327,337,347 T=14.450 |
1 | ||
| 41231-37480 |
XZU307,327,337,347 T=14.550 |
1 | ||
| 41231-37520 |
XZU307,327,337,347 T=14.650 |
1 | ||
| 41231-37530 |
XZU307,327,337,347 T=14.675 |
1 | ||
| 41231-37540 |
XZU307,327,337,347 T=14.700 |
1 | ||
| 41231-37510 |
XZU307,327,337,347 T=14.625 |
1 | ||
| 41231-37600 |
XZU307,327,337,347 T=14.850 |
1 | ||
| 41231-37550 |
XZU307,327,337,347 T=14.725 |
1 | ||
| 41231-37470 |
XZU307,327,337,347 T=14.525 |
1 | ||
| 41231-37590 |
XZU307,327,337,347 T=14.825 |
1 | ||
| 41231-37560 |
XZU307,327,337,347 T=14.750 |
1 | ||
| 41231-37570 |
XZU307,327,337,347 T=14.775 |
1 | ||
| 41231-37610 |
XZU307,327,337,347 T=14.875 |
1 | ||
| 41231-37580 |
XZU307,327,337,347 T=14.800 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 37341-89203 |
XZU307,327,337,347 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-55054 |
XZU307,327,337,347 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-55054 |
XZU307,327,337,347 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-37040 |
XZU307,327,337,347 |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90031-05098 |
XZU307,327,337,347 |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
XZU307,327,337,347 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
XZU307,327,337,347 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-37010 |
XZU307,327,337,347 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37040 |
XZU307,327,337,347 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37040 |
XZU307,327,337,347 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XZU307,327,337,347 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XZU307,327,337,347 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XZU307,327,337,347 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XZU307,327,337,347 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XZU307,327,337,347 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XZU307,327,337,347 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XZU307,327,337,347 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XZU307,327,337,347 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37030 |
XZU307,327,337,347 T=2.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37030 |
XZU307,327,337,347 T=2.0 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-37030 |
XZU307,327,337,347 |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-37010 |
XZU327,337,347 |
1 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01192 | ||||
| 90031-19101 | ||||
| 90031-19102 | ||||
| 90031-70110 | ||||
| 90032-01155 | ||||
| 90033-01069 | ||||
| 90179-30003 | ||||

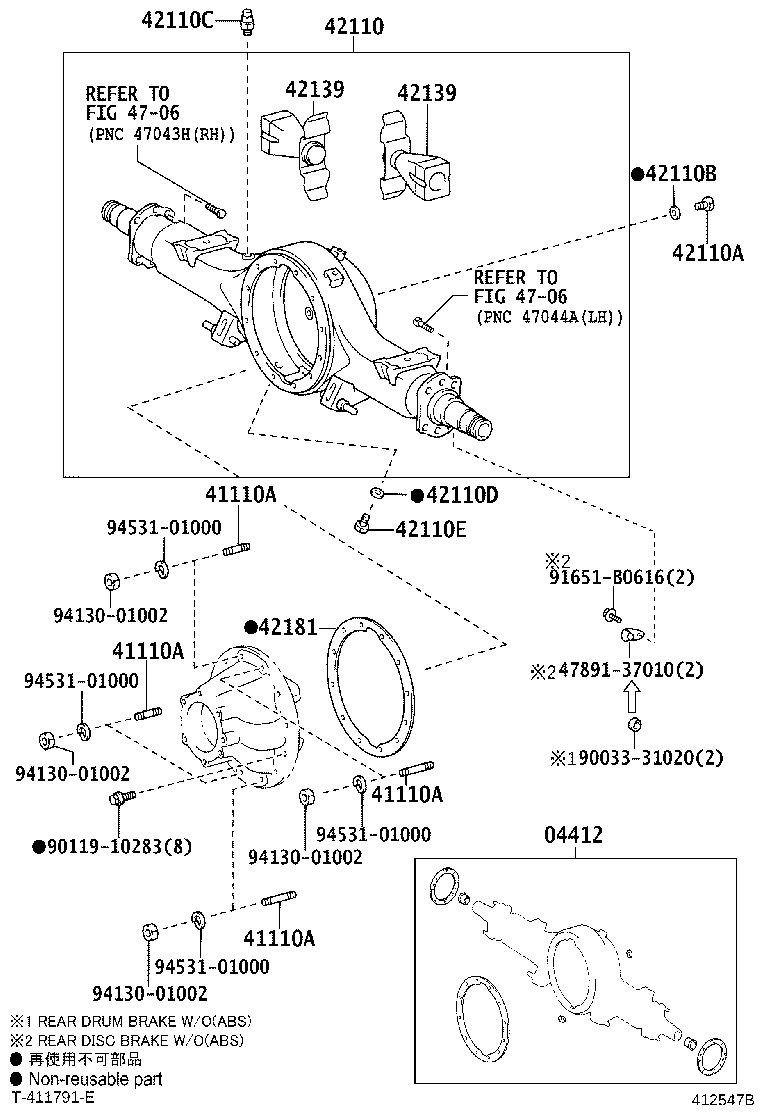

ILLUST NO. 2 OF 2(0610- )WU302..DCRTJ ; (0610- )WU340..65T..GEN ; (0610- )48T,55T,65T,80T..
12 INCHES DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-37100 |
XZU307,327,337..55T,65T |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10059 |
XZU307,327,337,347 S=19 & 12,L=57 |
2 | ||
| 90116-10060 |
XZU307,327,337,347 S=19 & 12,L=46 |
2 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10059 |
XZU307,327,337,347 S=19 & 12,L=57 |
2 | ||
| 90116-10060 |
XZU307,327,337,347 S=19 & 12,L=46 |
2 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10059 |
XZU307,327,337,347 S=19 & 12,L=57 |
2 | ||
| 90116-10060 |
XZU307,327,337,347 S=19 & 12,L=46 |
2 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10059 |
XZU307,327,337,347 S=19 & 12,L=57 |
2 | ||
| 90116-10060 |
XZU307,327,337,347 S=19 & 12,L=46 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-37280 |
XZU307,337..55T,65T |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
XZU307,327,337,347 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
XZU307,327,337,347 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03138 |
XZU307,327,337,347 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
XZU307,327,337,347 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
XZU307,327,337,347 |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-37020 |
XZU307,337,347 |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-37020 |
XZU307,337,347 |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-37030 |
XZU307,327,337,347 |
1 | ||
| Common parts | ||||
| 47891-37010 | ||||
| 90033-31020 | ||||
| 90119-10283 | ||||
| 91651-B0616 | ||||
| 94130-01002 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 4706 | ||||
