XZU330L-TKMSWR3 (1999)

Toyota Dyna

Production Jul 1999 - Dec 2002
Engine 15BFTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

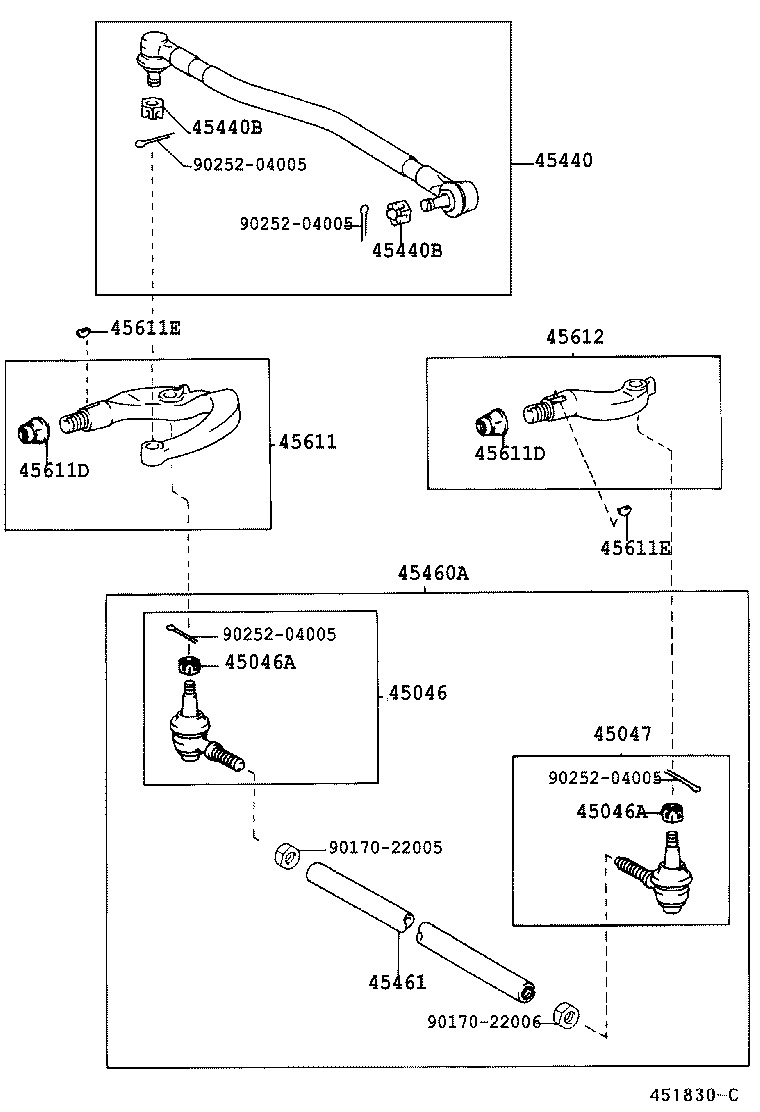

ILLUST NO. 3 OF 3(9907- )40T

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45440 45440B 45440B 45460A 45461 45611 45611D 45611D 45611E 45611E 45612 9017022005 9017022006 9025204005 9025204005 9025204005 9025204005
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-39426

XZU330,340..40T

 1
45046-39425

XZU330,340..40T

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-18003

XZU300,320,330,340

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-18003

XZU300,320,330,340

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-39265

XZU330,340..40T

 1
45047-39266

XZU330,340..40T

 1
45440 - LINK ASSY, STEERING DRAG
45440-39185

XZU330,340..40T

 1
45440-39186

XZU330,340..40T

 1
45440B - NUT, CASTLE(FOR STEERING DRAG LINK)
90171-18003

XZU300,320,330,340

 2
45440B - NUT, CASTLE(FOR STEERING DRAG LINK)
90171-18003

XZU300,320,330,340

 2
45460A - ROD ASSY, TIE
45460-39526

XZU330,340..40T

 1
45460-39525

XZU330,340..40T

 1
45461 - ROD, STEERING TIE
45461-37060

XZU330,340..40T

 1
45611 - ARM, STEERING KNUCKLE, RH
45611-39115

XZU330,340..40T

 1
45611D - NUT(FOR STEERING KNUCKLE ARM)
90178-26002

XZU300,302,320,330,34#

 2
45611D - NUT(FOR STEERING KNUCKLE ARM)
90178-26002

XZU300,302,320,330,34#

 2
45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM)
90280-07004

XZU300,302,320,330,34#

 2
45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM)
90280-07004

XZU300,302,320,330,34#

 2
45612 - ARM, STEERING KNUCKLE, LH
45612-39235

XZU330,340..40T

 1
Common parts
90170-22005
90170-22006
90252-04005

ILLUST NO. 1 OF 3(9907- )XZU300,307,320,330,340

Click highlighted areas on diagram

diagram 04445 44110 45411 9010114059 9010514106 9017014012 9017014012 9017030001 9020430040 9462211400 9462211400
Part # Description Qty Price
04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)
04445-37040

XZU300,302,320,330,34#

 1
44110 - GEAR ASSY, POWER STEERING
44110-37130

XZU300,330,340

 1
45411 - ARM, PITMAN
45411-37120

XZU330,340..40T

 1
Common parts
90101-14059
90105-14106
90170-14012
90170-30001
90204-30040
94622-11400

ILLUST NO. 2 OF 3(9907- )XZU300,307,320,330,340

Click highlighted areas on diagram

diagram 44011 44015 44101E 44101E 44101L 44107 44107B 44107E 44107G 44107G 44108C 44108D 44108F 44142 44167 44168 45357 9002901001 9002901001 9002934002 9671135042
Part # Description Qty Price
44011 - PISTON SUB-ASSY, POWER
44011-37130

XZU300,320,330,340

 1
44015 - SHAFT SUB-ASSY, SECTOR
44015-37110

XZU300,302,320,330,34#

 1
44101E - RING, O(FOR STEERING WORM)
90029-20047

XZU300,302,320,330,34#

NO.1

 1
90029-20006

XZU300,302,320,330,34#

NO.2

 1
44101E - RING, O(FOR STEERING WORM)
90029-20047

XZU300,302,320,330,34#

NO.1

 1
90029-20006

XZU300,302,320,330,34#

NO.2

 1
44101L - SEAL, DUST(FOR POWER PISTON SUB-ASSY)
90029-20708

XZU300,302,320,330,34#

 1
44107 - HOUSING SUB-ASSY, POWER STEERING GEAR
44107-37130

XZU300,330,340

 1
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90029-20061

XZU300,302,320,330,34#

 1
44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING)
90029-21023

XZU300,302,320,330,34#

 1
44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING)
90029-01502

XZU300,302,330,34#

 2
44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING)
90029-01502

XZU300,302,330,34#

 2
44108C - COVER SUB-ASSY, SECTOR
44108-37110

XZU300,302,320,330,34#

 1
44108D - RING, O(FOR SECTOR COVER)
90029-20006

XZU300,302,320,330,34#

 1
44108F - SEAL, DUST(FOR SECTOR COVER)
90029-21023

XZU300,302,320,330,34#

 1
44142 - NUT, LOCK
44142-37010

XZU300,302,320,330,34#

 1
44167 - COVER, SECTOR SHAFT DUST
44167-37010

XZU300,302,320,330,34#

 1
44168 - COVER, WORM SHAFT DUST
44168-25010

XZU300,302,320,330,34#

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
90029-02302

XZU300,302,320,330,34#

 1
Common parts
90029-01001
90029-34002
96711-35042

(0010-0206)

Click highlighted areas on diagram

diagram 44200 44250
Part # Description Qty Price

ILLUST NO. 3 OF 3(0209-0612)WU340..RHD..IV3 ; (0209-0612)BU30#,34#,WU300,XZU305,342,345..RHD ; (0612

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45440 45440B 45440B 45460A 45461 45611 45611D 45611D 45611E 45611E 45612 9017022005 9017022006 9025204005 9025204005 9025204005 9025204005
Part # Description Qty Price
Common parts
90170-22005
90170-22006
90252-04005
