XZU330L-TKMSWR3 (2002)
Toyota Dyna
Production
Dec 2002
-
Oct 2006
Engine
15BFTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9907- )XZU300,320,330,340

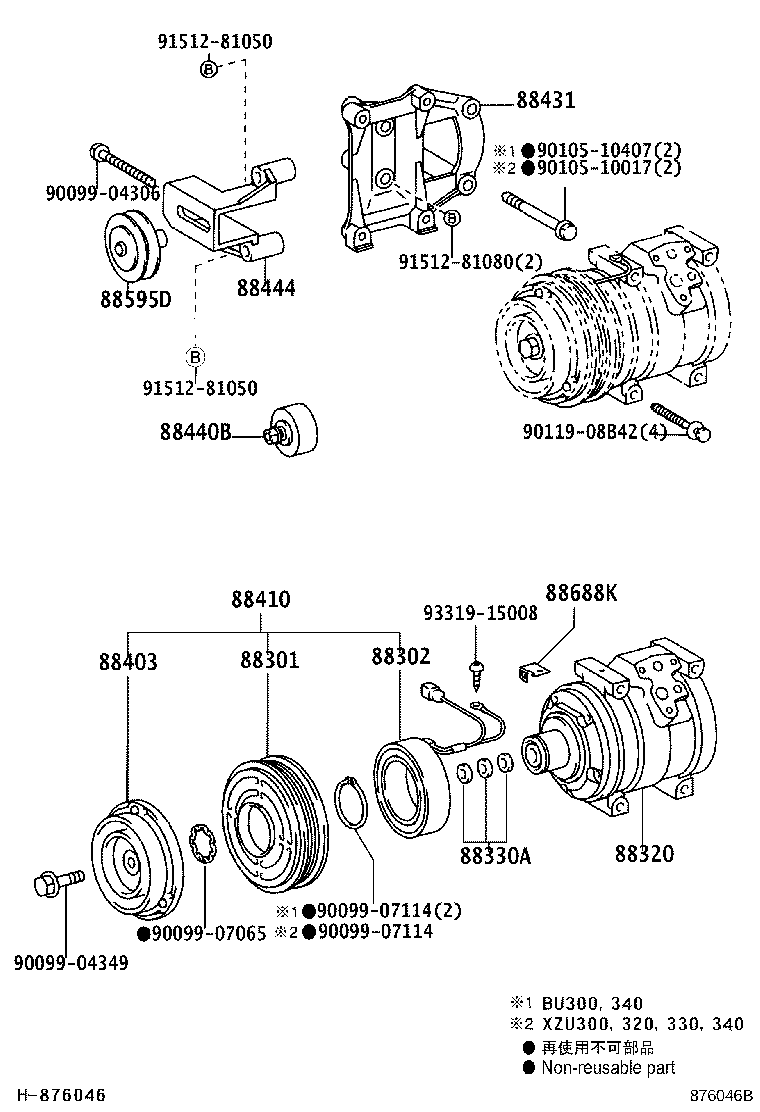

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04306 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90105-10017 | ||||
| 90119-08B42 | ||||
| 91512-81050 | ||||
| 91512-81080 | ||||
| 93319-15008 | ||||
(0212-0610)BU300,340,XZU300,320,330,340
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-37010 |
XZU300,320,330,340 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-60090 |
XZU300,320,330,340 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-37070 |
XZU300,320,330,340 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
XZU300,320,330,340 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
XZU300,320,330,340 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-37080 |
XZU300,320,330,340 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-37080 |
XZU300,320,330,340 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-37030 |
XZU300,320,330,340 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-37120 |
XZU300,320,330,340 |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-35010 |
XZU300,320,330,340 |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-2D770 |
XZU300,320,330,340 |
1 | ||
| Common parts | ||||
| 90099-04306 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90105-10017 | ||||
| 90105-10407 | ||||
| 90119-08B42 | ||||
| 91512-81050 | ||||
| 91512-81080 | ||||
| 93319-15008 | ||||
