XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9907- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

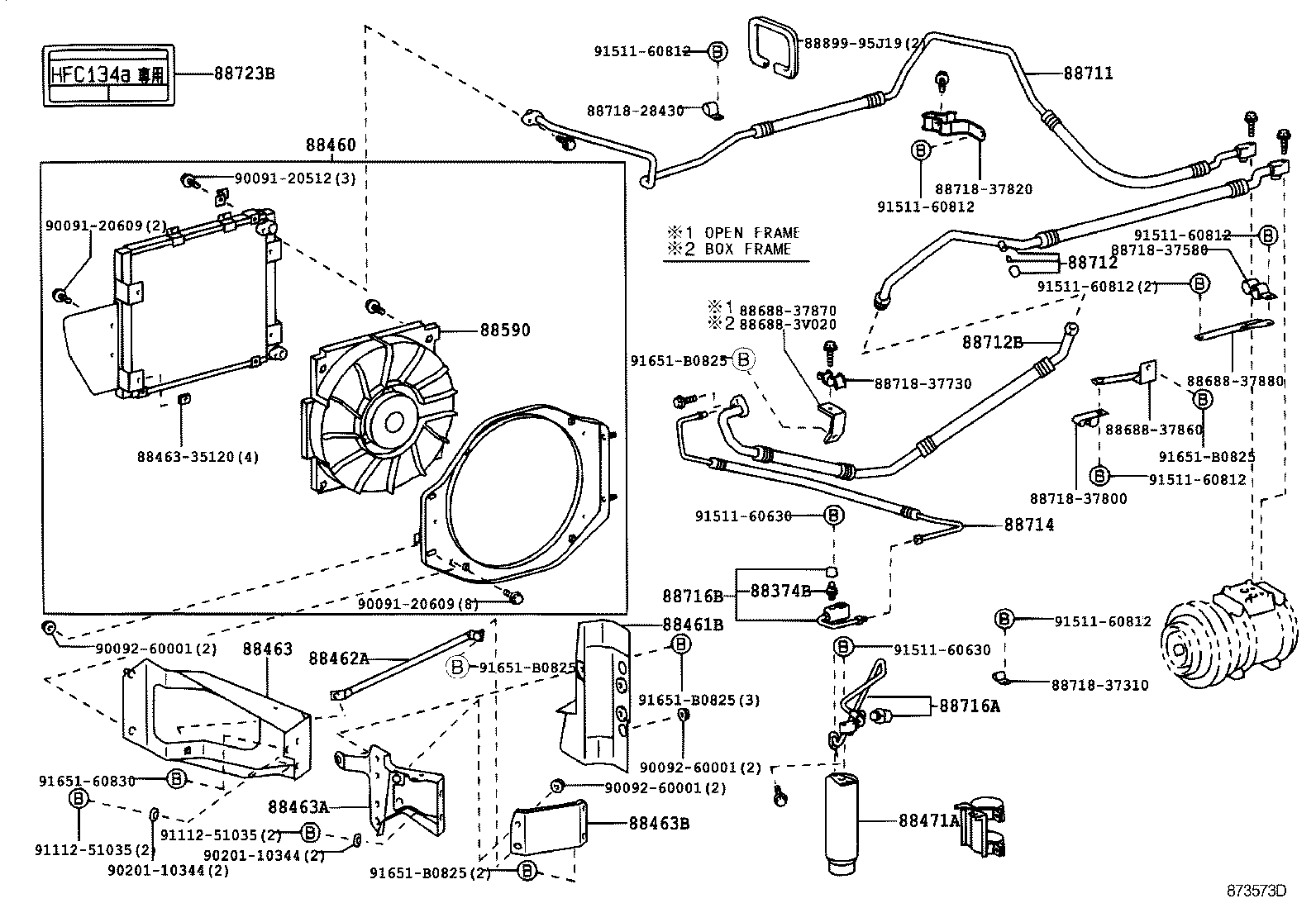

ILLUST NO. 1 OF 2(9907- )XZU300,320,330,340

Click highlighted areas on diagram

diagram 88374B 88460 88461B 88462A 88463 8846335120 88463A 88463B 88471A 88590 8868837860 8868837870 8868837880 886883V020 88711 88712 88712B 88714 88716A 88716B 8871828430 8871837310 8871837580 8871837730 8871837800 8871837820 88723B 8889995J19 9009120512 9009120609 9009120609 9009260001 9009260001 9009260001 9020110344 9020110344 9111251035 9111251035 9151160630 9151160630 9151160812 9151160812 9151160812 9151160812 9151160812 9151160812 9165160830 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825
Part # Description Qty Price
Common parts
88463-35120
88688-37860
88688-37870
88688-37880
88688-3V020
88718-28430
88718-37310
88718-37580
88718-37730
88718-37800
88718-37820
88899-95J19
90091-20512
90091-20609
90092-60001
90201-10344
91112-51035
91511-60630
91511-60812
91651-60830
91651-B0825

ILLUST NO. 3 OF 3(0212- )CBU,IV3..DM7,T3,T4,TS

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

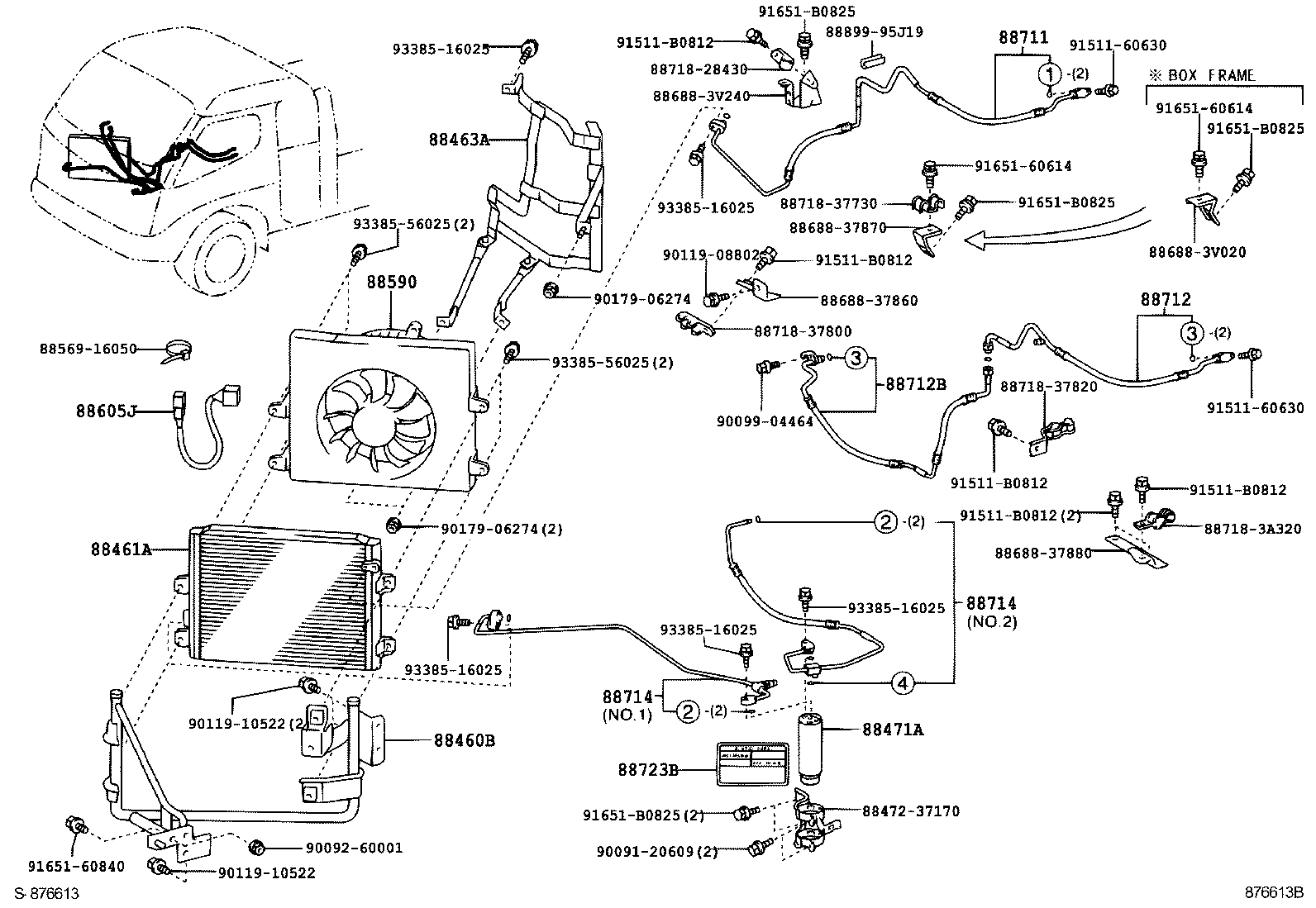

ILLUST NO. 2 OF 3(0212- )XZU300,320,330,340

Click highlighted areas on diagram

PIPING

diagram 88460B 88461A 88463A 88471A 8847237170 8856916050 88590 88605J 8868837860 8868837870 8868837880 886883V020 886883V240 88711 88712 88712B 88714 88714 8871828430 8871837730 8871837800 8871837820 887183A320 88723B 8889995J19 9009120609 9009260001 9009904464 9011908802 9011910522 9011910522 9017906274 9017906274 9151160630 9151160630 91511B0812 91511B0812 91511B0812 91511B0812 91511B0812 9165160614 9165160614 9165160840 91651B0825 91651B0825 91651B0825 91651B0825 9338516025 9338516025 9338516025 9338516025 9338516025 9338556025 9338556025
Part # Description Qty Price
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-3V540

XZU300,320,330,340

 1
88461A - CORE, COOLER CONDENSER
88461-37060

XZU300,320,330,340

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37350

XZU300,320,330,340

 1
88463-37410

XZU300,320,330,340

 1
88471A - TANK, RECEIVER
88471-34010

XZU300,320,330,340

 1
88590 - BLOWER ASSY, W/SHROUD
88590-37180

XZU300,320,330,340

 1
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-37260

XZU300,320,330,340

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37611

XZU300,320,330,340

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V240

XZU300,320,330,340

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-3V250

XZU300,320,330,340

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88716-37751

XZU300,320,330,340

NO.1

 1
88721-37570

XZU300,320,330,340

NO.2

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88716-37751

XZU300,320,330,340

NO.1

 1
88721-37570

XZU300,320,330,340

NO.2

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040

BU300,340,XZU300,320,330,340

 1
Common parts
88472-37170
88569-16050
88688-37860
88688-37870
88688-37880
88688-3V020
88688-3V240
88718-28430
88718-37730
88718-37800
88718-37820
88718-3A320
88899-95J19
90091-20609
90092-60001
90099-04464
90119-08802
90119-10522
90179-06274
91511-60630
91511-B0812
91651-60614
91651-60840
91651-B0825
93385-16025
93385-56025
