XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )XZU300,320,330,340

Click highlighted areas on diagram

diagram 8712437090 8712437210 8712437290 87245A 87245B 87246A 87246B 87248A 87251E 87251E 9011908802 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 91511G0814 91511G0814 91511G0814 9165160616
Part # Description Qty Price
Common parts
87124-37090
87124-37210
87124-37290
90119-08802
90467-21010
91511-G0814
91651-60616

(0212-0610)BU303,343,XZU300,320,330,340..LHD

Click highlighted areas on diagram

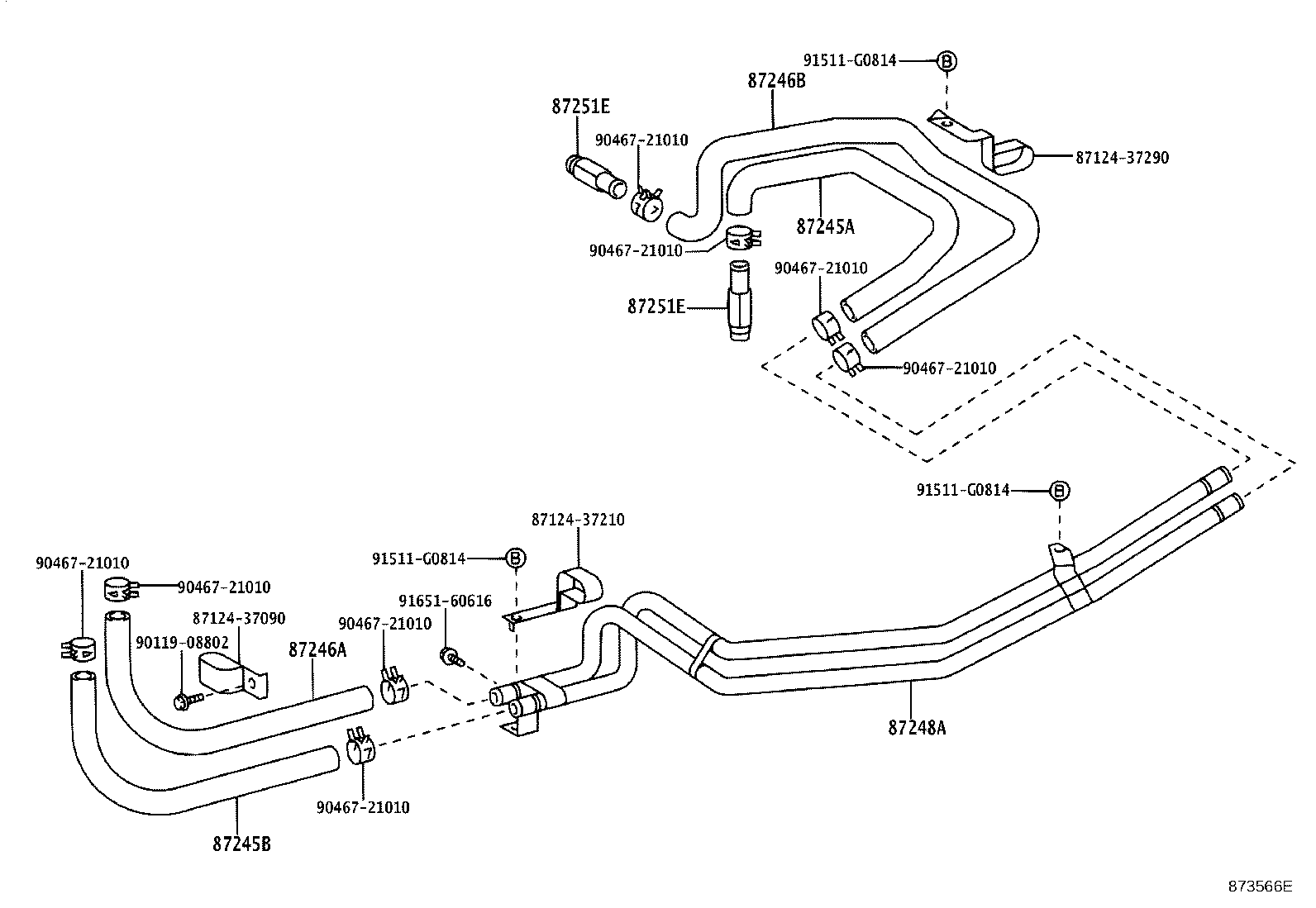

diagram 44447D 5576237070 8712 8712437090 8712437090 8712437210 8712437290 87245A 87245B 87246A 87246B 87248A 87251E 87251E 9011908802 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 91511G0814 91511G0814 91511G0814 91511G0814 91642H1020 9165160616 91651B0822
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87246-37310

BU30#,34#,XZU300,320,330,340..ARL,GEN,TAIW

 1
87245B - HOSE, HEATER WATER, INLET B
87245-3V120

BU303,343,WU300,340,XZU300,320,330,340..LHD

L=490

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3V120

BU303,343,WU300,340,XZU300,320,330,340..LHD

L=490

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3V361

BU30#,34#,XZU300,320,330,340..ARL,GEN,TAIW

 1
87248A - PIPE, HEATER WATER INLET, A
87248-37281

BU303,343,XZU300,320,330,340..LHD

 1
87251E - JOINT, WATER, NO.2
87251-30200

BU30#,34#,XZU300,320,330,340..ARL,GEN,TAIW

 2
87251E - JOINT, WATER, NO.2
87251-30200

BU30#,34#,XZU300,320,330,340..ARL,GEN,TAIW

 2
Common parts
55762-37070
87124-37090
87124-37210
87124-37290
90119-08802
90467-21010
91511-G0814
91642-H1020
91651-60616
91651-B0822
