XZU330L-TKMSWR3 (2002)
Toyota Dyna
ILLUST NO. 1 OF 2(0212- )LHD
CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-37100 |
BU303,343,WU300,340,XZU300,320,330,340..LHD W/O(AIR CONDITIONER) |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55906-37050 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-37060 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-37070 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-37070 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-89115 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-89115 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-89115 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-89115 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| Common parts | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

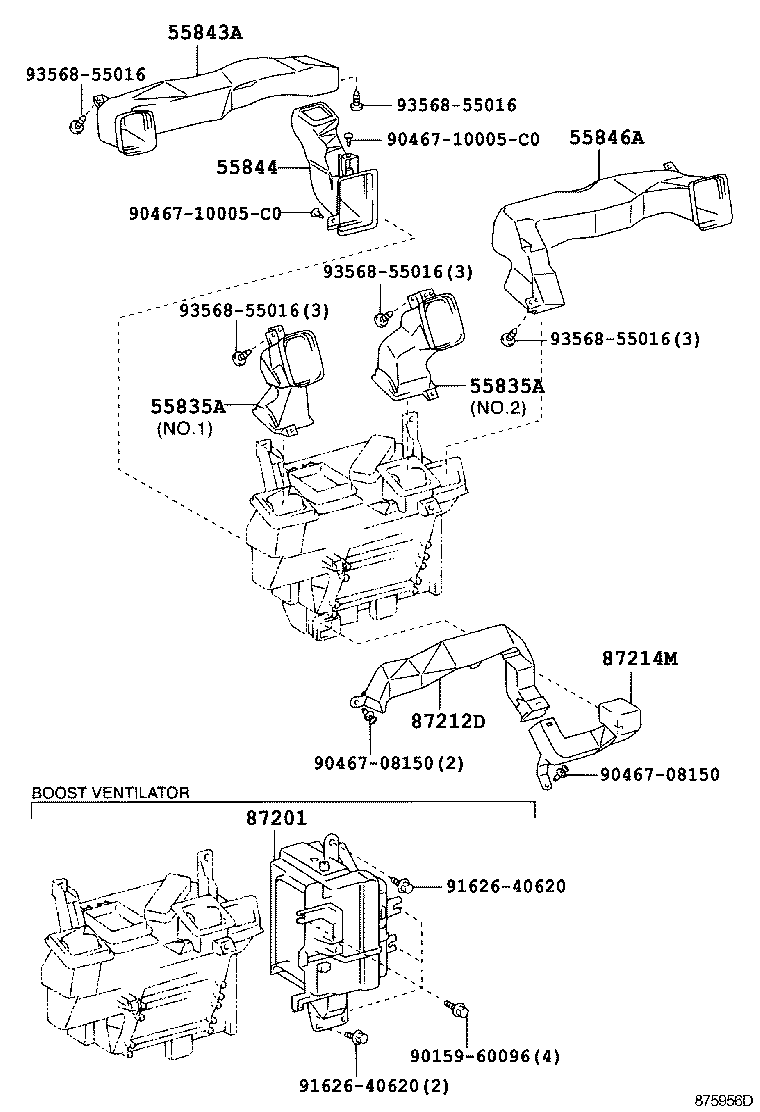

ILLUST NO. 2 OF 2(0212-0610)LHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-37050 |
BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1 |
1 | ||
| 55835-37060 |
BU303,343,WU300,340,XZU300,320,330,340..LHD NO.2 |
1 | ||
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-37050 |
BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1 |
1 | ||
| 55835-37060 |
BU303,343,WU300,340,XZU300,320,330,340..LHD NO.2 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-37061 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-37040 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-37060 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-37110 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 87212D - DUCT, HEATER TO FOOT, NO.1 | ||||
| 87212-37030 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 87214M - DUCT, HEATER TO FOOT, NO.3 | ||||
| 87214-37010 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| Common parts | ||||
| 90159-60096 | ||||
| 90467-08150 | ||||
| 90467-10005C0 | ||||
| 91626-40620 | ||||
| 93568-55016 | ||||
(7708- )BU2#,30,31,32,HU30,JU20,RU2#,30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67868-30030 | ||||
| 90461-06092 | ||||
| 90461-10245 | ||||
| 90461-10276 | ||||
| 90461-10277 | ||||
| 90461-10342 | ||||
| 90461-10495 | ||||
| 90463-08133 | ||||
| 90463-15439 | ||||
| 90467-06003 | ||||
| 90467-06012 | ||||
| 90467-06027 | ||||
| 91611-40816 | ||||
| 91651-40616 | ||||
| 91655-40620 | ||||
