XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9907- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 1 OF 2(9907- )XZU300,320,330,340

Click highlighted areas on diagram

diagram 87116A 87138C 88501 88510 88510 88510F 88515 88625 8862628010 88650C 9009900968 9009904493 9009904497 9331914006
Part # Description Qty Price
Common parts
88626-28010
90099-00968
90099-04493
90099-04497
93319-14006

ILLUST NO. 2 OF 2(0212- )BU300,340,XZU30#,32#,33#,340,345,347

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 1 OF 2(0212- )XZU300,320,330,340

Click highlighted areas on diagram

diagram 87138C 88501 88510 88510 88510F 88510F 88515 88539 88625 88650C 886883V520 886883V530 9009900176
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-37090

XZU300,320,330,340

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37070

XZU300,320,330,340

 1

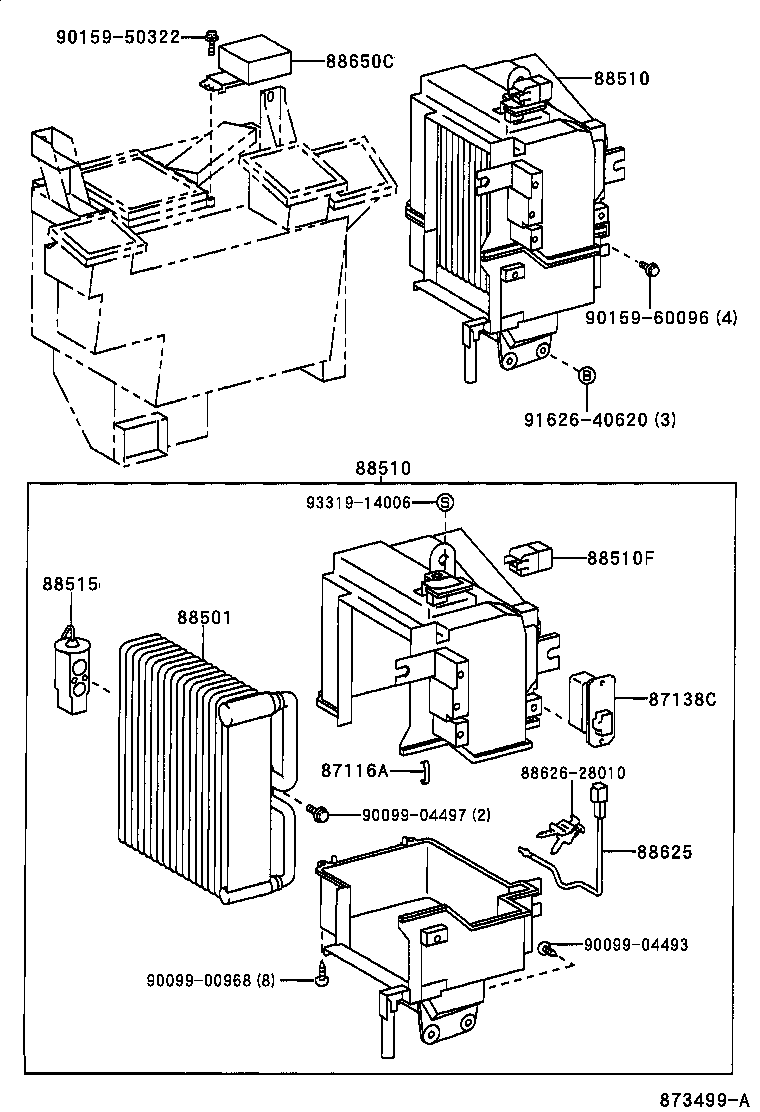

88510 - UNIT ASSY, COOLER
88510-37130

XZU300,320,330,340

 1
88510 - UNIT ASSY, COOLER
88510-37130

XZU300,320,330,340

 1
88510F - HOLDER, FUSE
82630-95J03

XZU300,320,330,340

 2
88510F - HOLDER, FUSE
82630-95J03

XZU300,320,330,340

 2
88515 - VALVE, COOLER EXPANSION
88515-28160

XZU300,320,330,340

 1
88515-16060

XZU300,320,330,340

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-37070

XZU300,320,330,340

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20460

BU300,340,XZU30#,320,330,340,345

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-37120

BU300,340,XZU30#,320,330,340,345

 1
Common parts
88688-3V520
88688-3V530
90099-00176
