XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )XZU300,320,330,340

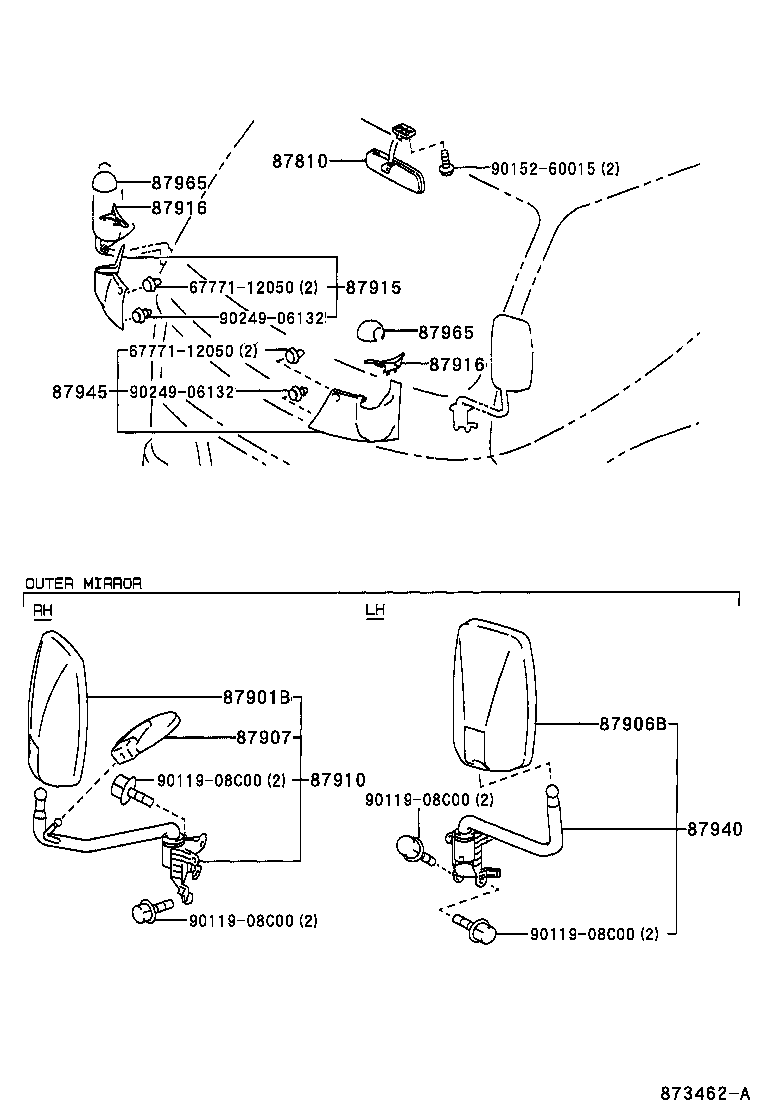

Click highlighted areas on diagram

diagram 6777112050 6777112050 87810 87901B 87906B 87907 87910 87915 87916 87916 87940 87945 87965 87965 9011908C00 9011908C00 9011908C00 9011908C00 9015260015 9024906132 9024906132
Part # Description Qty Price
Common parts
67771-12050
90119-08C00
90152-60015
90249-06132

ILLUST NO. 3 OF 3(0209- )

Click highlighted areas on diagram

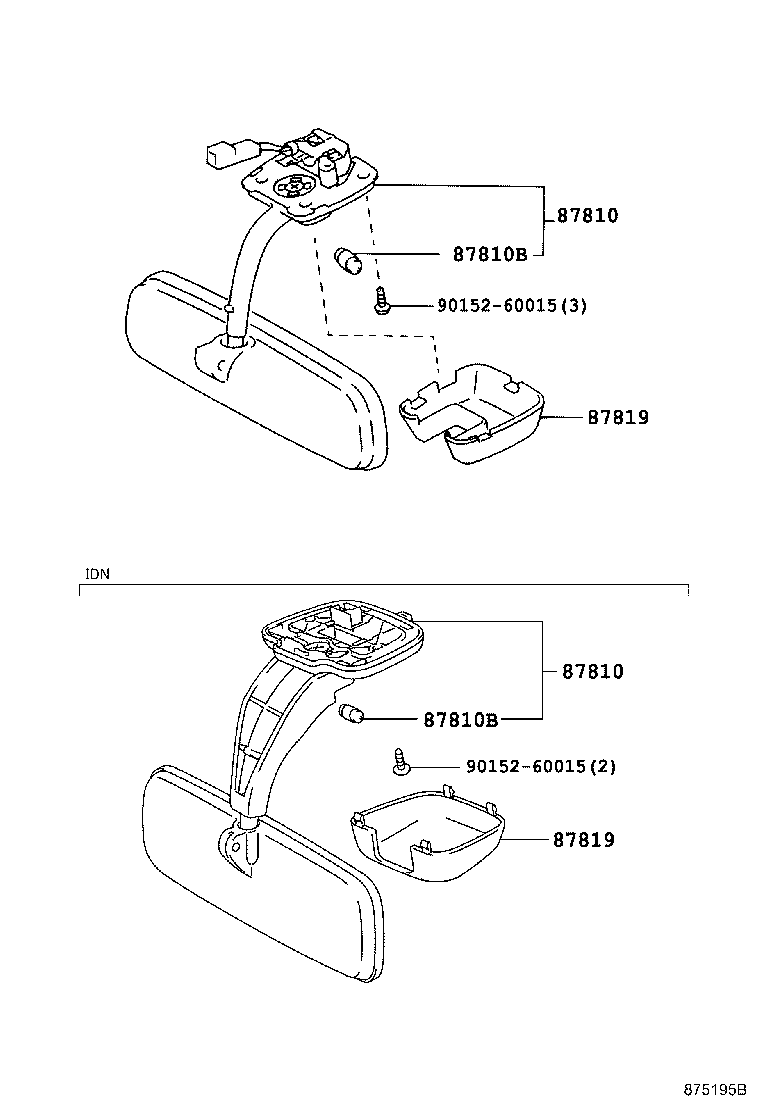

INNER MIRROR

diagram 87810 87810 87810B 87810B 87819 87819 9015260015 9015260015
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-37060B0

BU303,343,XZU30#,320,330,340,345..ARL,GEN,TAIW

MD.CHARCOAL,TRIM1#

 1
87810-37061B0

BU303,343,XZU30#,320,330,340,345..ARL,GEN,TAIW

MD.CHARCOAL,TRIM1#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-37060B0

BU303,343,XZU30#,320,330,340,345..ARL,GEN,TAIW

MD.CHARCOAL,TRIM1#

 1
87810-37061B0

BU303,343,XZU30#,320,330,340,345..ARL,GEN,TAIW

MD.CHARCOAL,TRIM1#

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
90981-16019

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

24V 10W

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
90981-16019

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

24V 10W

 1
87819 - LENS, INNER RR VIEW MIRROR ROOM LAMP
87819-25010

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
87819 - LENS, INNER RR VIEW MIRROR ROOM LAMP
87819-25010

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
Common parts
90152-60015

ILLUST NO. 1 OF 3(0212-0610)BU303,343,XZU300,320,330,340..LHD ; (0610-1106)LHD..GEN,TAIW ; (0610-

Click highlighted areas on diagram

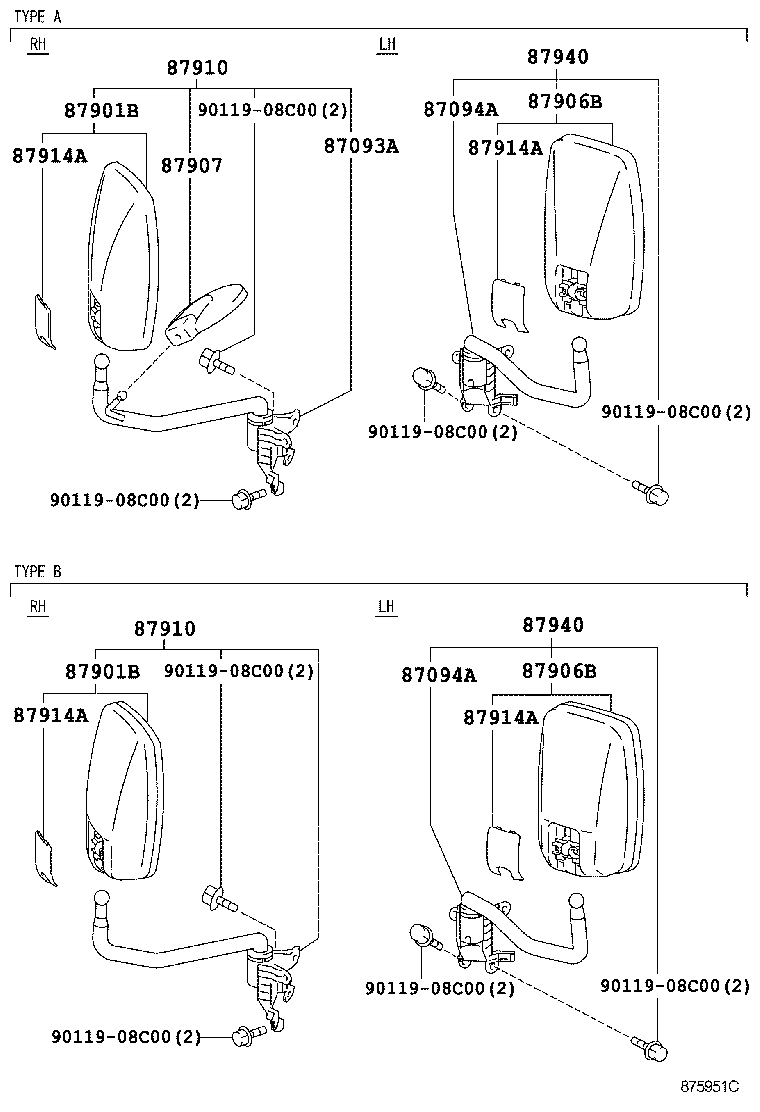

OUTER MIRROR

diagram 87093A 87094A 87094A 87901B 87901B 87906B 87906B 87907 87910 87910 87914A 87914A 87914A 87914A 87940 87940 9011908C00 9011908C00 9011908C00 9011908C00 9011908C00 9011908C00 9011908C00 9011908C00
Part # Description Qty Price
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87901-37130

BU303,343,XZU300,320,330,340..GEN,TAIW

NO PAINT REQ.,W(FRONT UNDER MIRROR)

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87901-37130

BU303,343,XZU300,320,330,340..GEN,TAIW

NO PAINT REQ.,W(FRONT UNDER MIRROR)

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87901-37130

BU303,343,XZU300,320,330,340..GEN,TAIW

NO PAINT REQ.,W(FRONT UNDER MIRROR)

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87901-37130

BU303,343,XZU300,320,330,340..GEN,TAIW

NO PAINT REQ.,W(FRONT UNDER MIRROR)

 1
87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW
87907-37070

BU303,343,XZU300,320,330,340..GEN,TAIW

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-37420

BU303,343,XZU300,320,330,340..LHD

NO PAINT REQ.,TYPE A:REFER TO ILLUSTRATION, W(FRONT UNDER MIRROR)

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-37420

BU303,343,XZU300,320,330,340..LHD

NO PAINT REQ.,TYPE A:REFER TO ILLUSTRATION, W(FRONT UNDER MIRROR)

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-37720

XZU300,320,330,340

NO PAINT REQ.,TYPE A:REFER TO ILLUSTRATION

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-37720

XZU300,320,330,340

NO PAINT REQ.,TYPE A:REFER TO ILLUSTRATION

 1
Common parts
90119-08C00
