XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )XZU300,320,330,340

Click highlighted areas on diagram

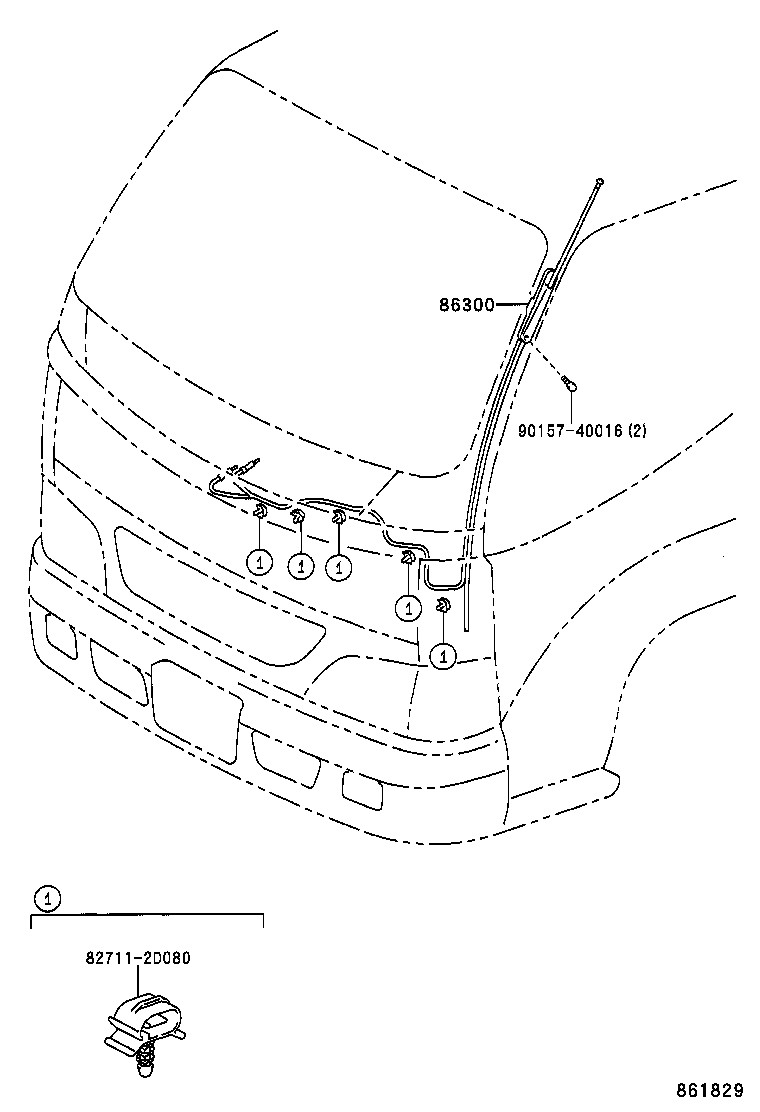

diagram 827112D080 86300 9015740016
Part # Description Qty Price
Common parts
82711-2D080
90157-40016

(0212- )LHD

Click highlighted areas on diagram

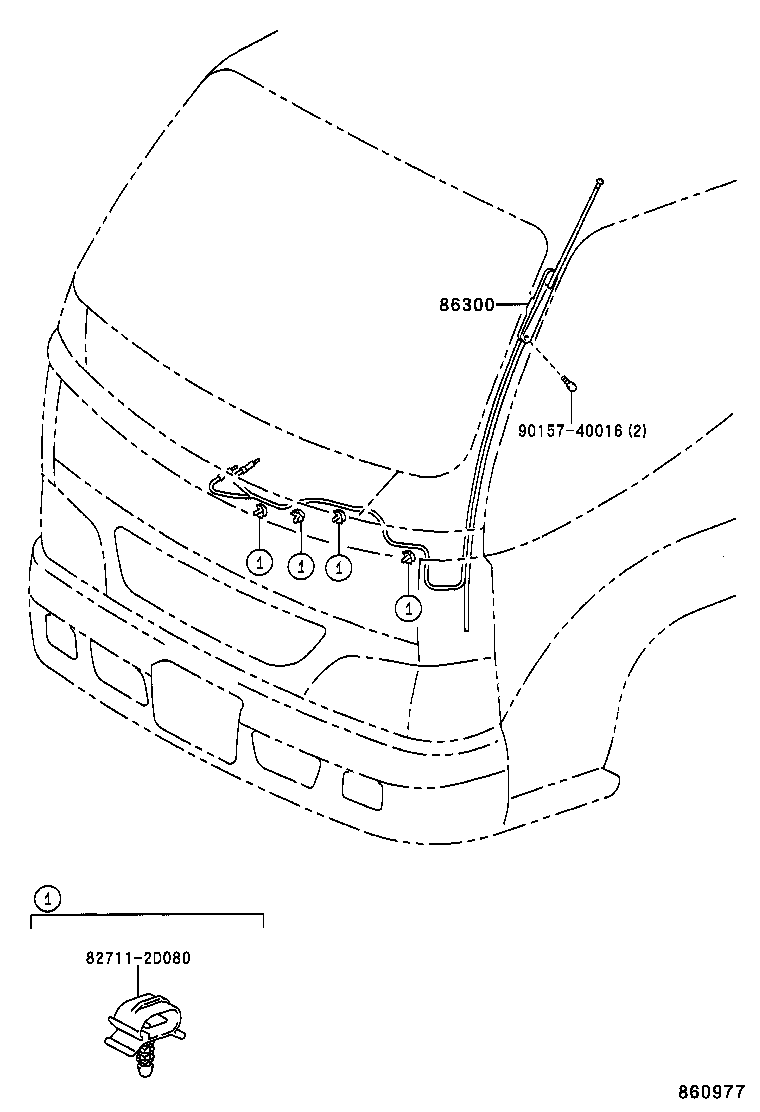

diagram 827112D080 86300 9015740016
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-37060

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW

 1
Common parts
82711-2D080
90157-40016

(7708- )

Click highlighted areas on diagram

diagram 86300 86391 9016750007 9016750007
Part # Description Qty Price
Common parts
90167-50007
