XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )

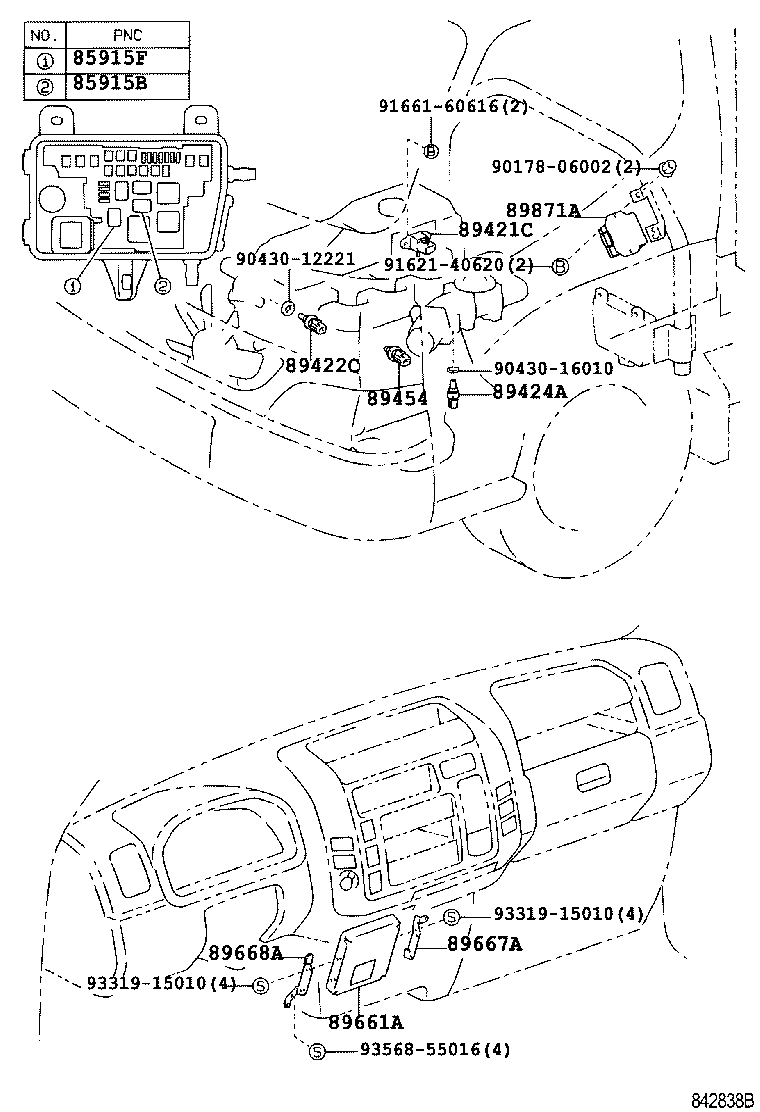

Click highlighted areas on diagram

diagram 85915B 85915F 89421C 89422C 89424A 89454 89661A 89667A 89668A 89871A 9017806002 9043012221 9043016010 9162140620 9166160616 9331915010 9331915010 9356855016
Part # Description Qty Price
Common parts
90178-06002
90430-12221
90430-16010
91621-40620
91661-60616
93319-15010
93568-55016

(0212-0610)BU300,340,XZU30#,320,330,340,345

Click highlighted areas on diagram

diagram 85915B 85915F 89421C 89421E 89422C 89454 89661A 89667A 89668A 89870A 89871A 9017806002 9043012221 9162140620 9165160620 91651B0820 9166160616 9331915010 9331915010 9356855016
Part # Description Qty Price
85915B - RELAY, MAIN (FOR DIESEL TURBO)
90987-02017

BU300,340,XZU30#,320,330,340,345

 1
85915F - RELAY, SPILL VALVE
90987-02017

BU300,340,XZU30#,320,330,340,345

 1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-21010

XZU300,320,330,340

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-35010

BU300,340,XZU300,320,330,340

 1
89454 - SENSOR, FUEL TEMPERATURE
89454-60010

XZU300,320,330,340

 1
89661A - COMPUTER, ENGINE CONTROL
89661-37060

XZU300,320,330,340

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-37020

XZU300,320,330,340

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-37020

XZU300,320,330,340

 1
89871A - DRIVER, INJECTOR
89871-36010

BU300,340,XZU300,320,330,340

 1
Common parts
90178-06002
90430-12221
91621-40620
91651-60620
91651-B0820
91661-60616
93319-15010
93568-55016
