Toyota Dyna XZU330 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
GR
DYNA
XZU330L-TKMSWR3 (2002)
8401 - SWITCH & RELAY & COMPUTER

XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006

Engine 15BFTE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

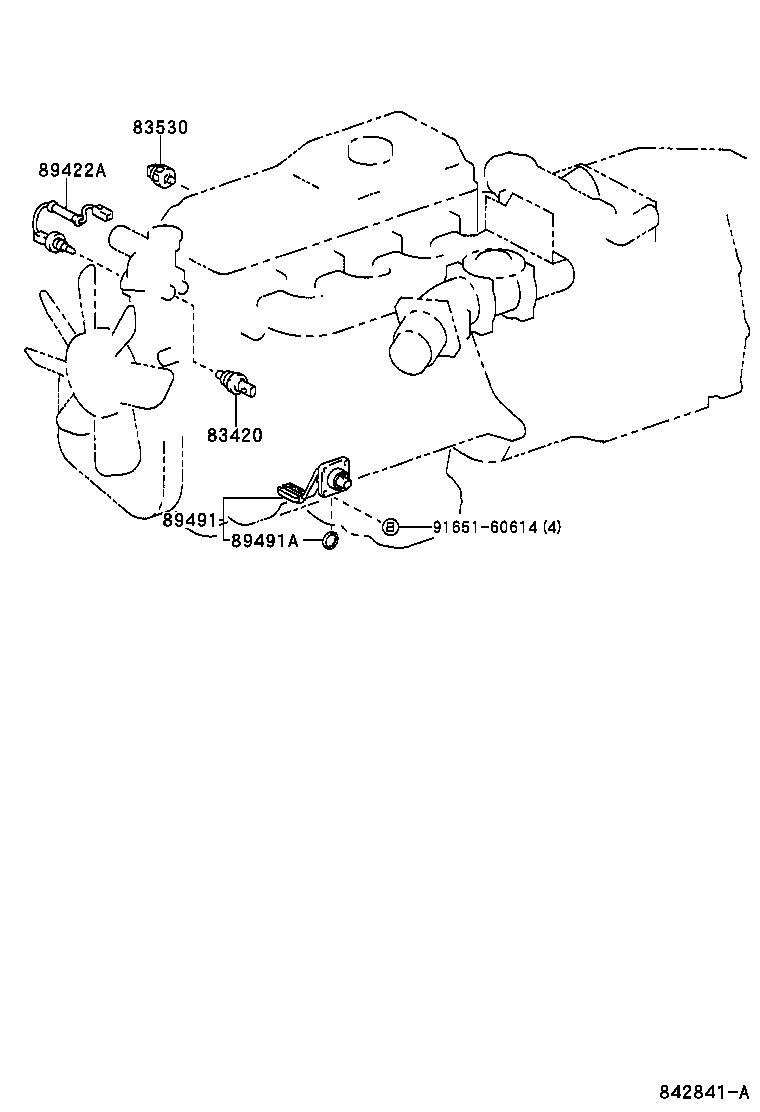

ILLUST NO. 1 OF 1(9907- )XZU300,320,330,340

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty	Price
Common parts
91651-60614

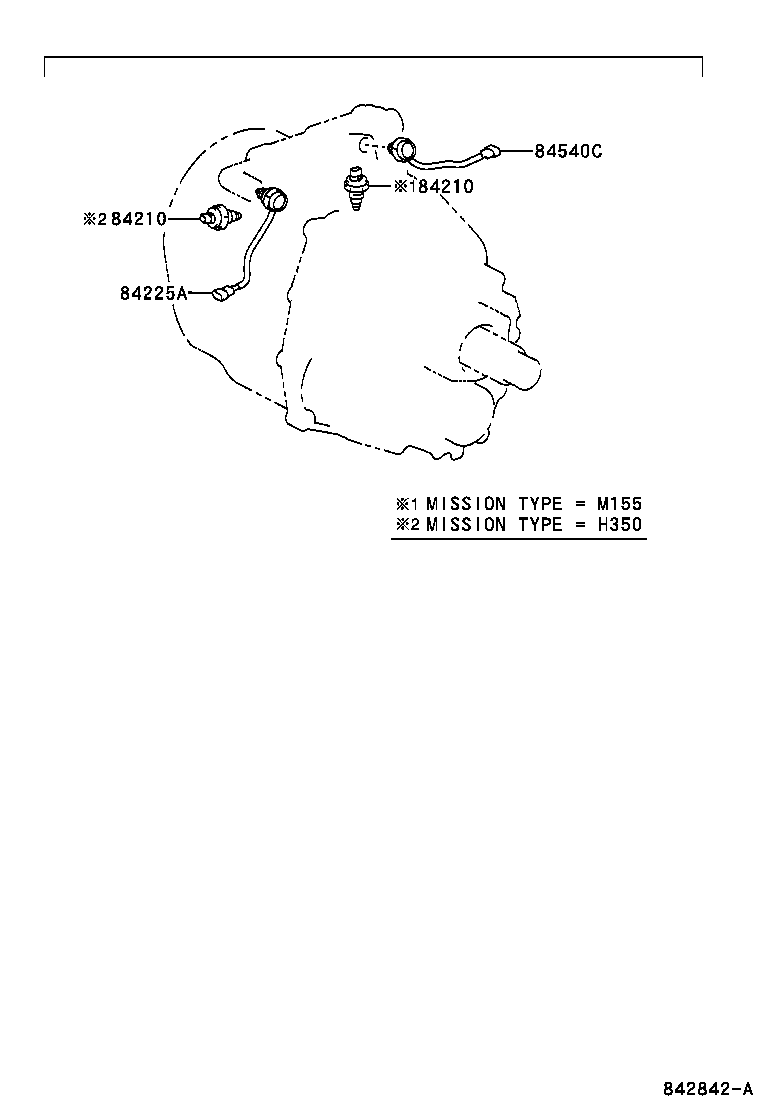

ILLUST NO. 2 OF10(9907- )

Click highlighted areas on diagram

TRANSMISSION & TRANSFER

Part #	Description	Period	Qty	Price

ILLUST NO. 3 OF10(9907- )XZU300,320,330,340

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty	Price

ILLUST NO. 4 OF10(9907- )XZU300,320,330,340

Click highlighted areas on diagram

R/B NO.2

Part #	Description	Period	Qty	Price
Common parts
82717-37020
90179-06158
90179-06171
90179-10015
91651-B0820
91651-B0825
94130-00802
Linked diagrams
8202
8405

ILLUST NO. 5 OF10(9907- )XZU300,320,330,340

Click highlighted areas on diagram

INSTRUMENT PANEL & COWL

Part #	Description	Period	Qty	Price
Common parts
91621-J0814
91651-B0820
94120-41000
Linked diagrams
8202

ILLUST NO. 6 OF10(9907- )XZU300,320,330,340

Click highlighted areas on diagram

INSTRIMENT PANEL SWITCH

Part #	Description	Period	Qty	Price
Linked diagrams
5551
8413

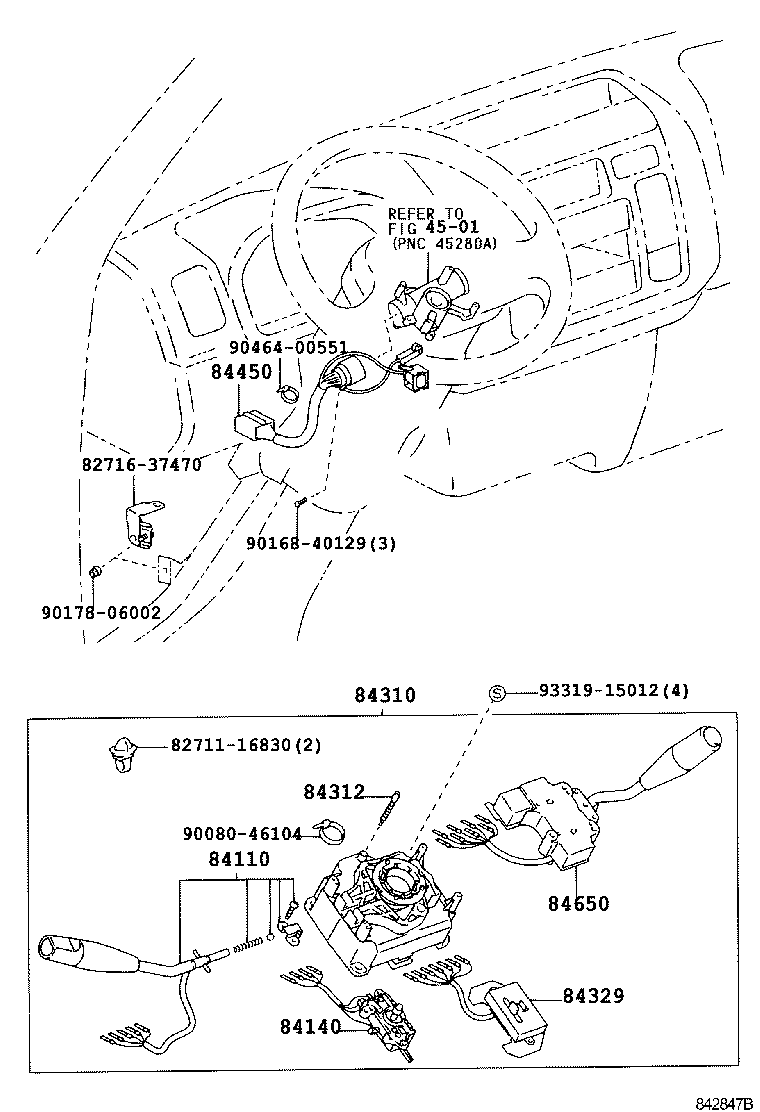

ILLUST NO. 7 OF10(9907- )XZU300,320,330,340

Click highlighted areas on diagram

IGNISION SW. & CONBINATION SW.

Part #	Description	Period	Qty	Price
Common parts
82711-16830
82716-37470
90080-46104
90168-40129
90178-06002
90464-00551
93319-15012
Linked diagrams
4501

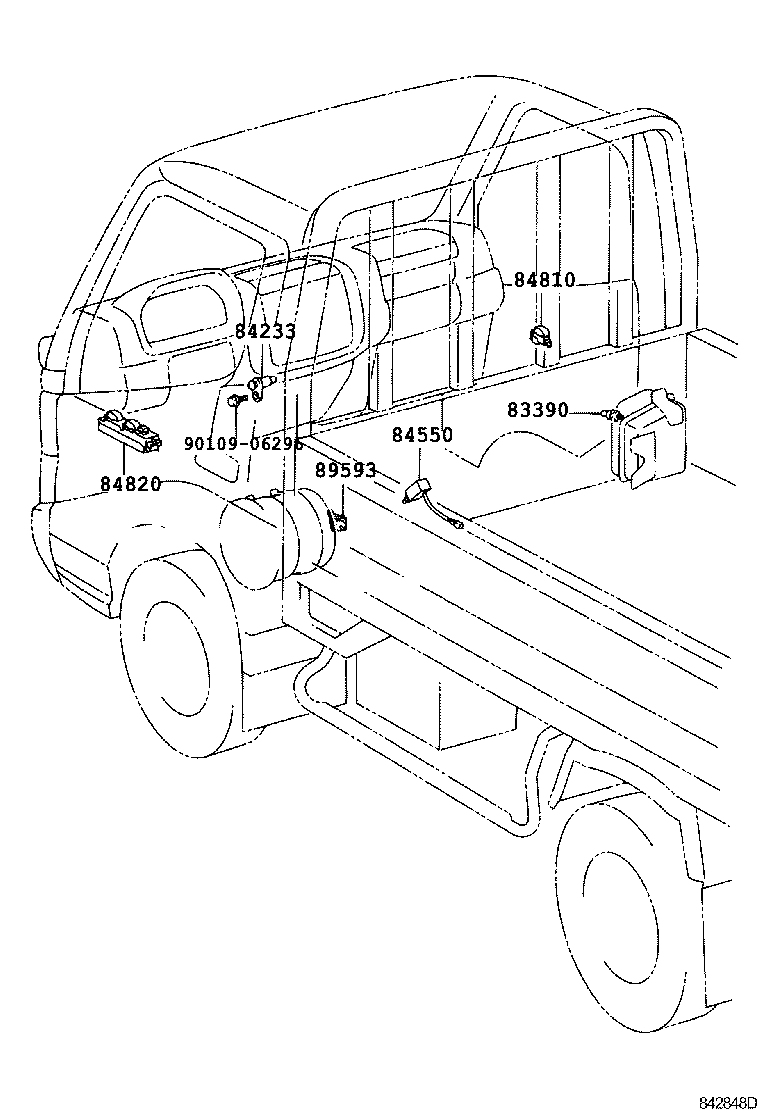

ILLUST NO. 8 OF10(9907- )XZU300,320,330,340

Click highlighted areas on diagram

DOOR,ROOF & FLOOR

Part #	Description	Period	Qty	Price
Common parts
90109-06296

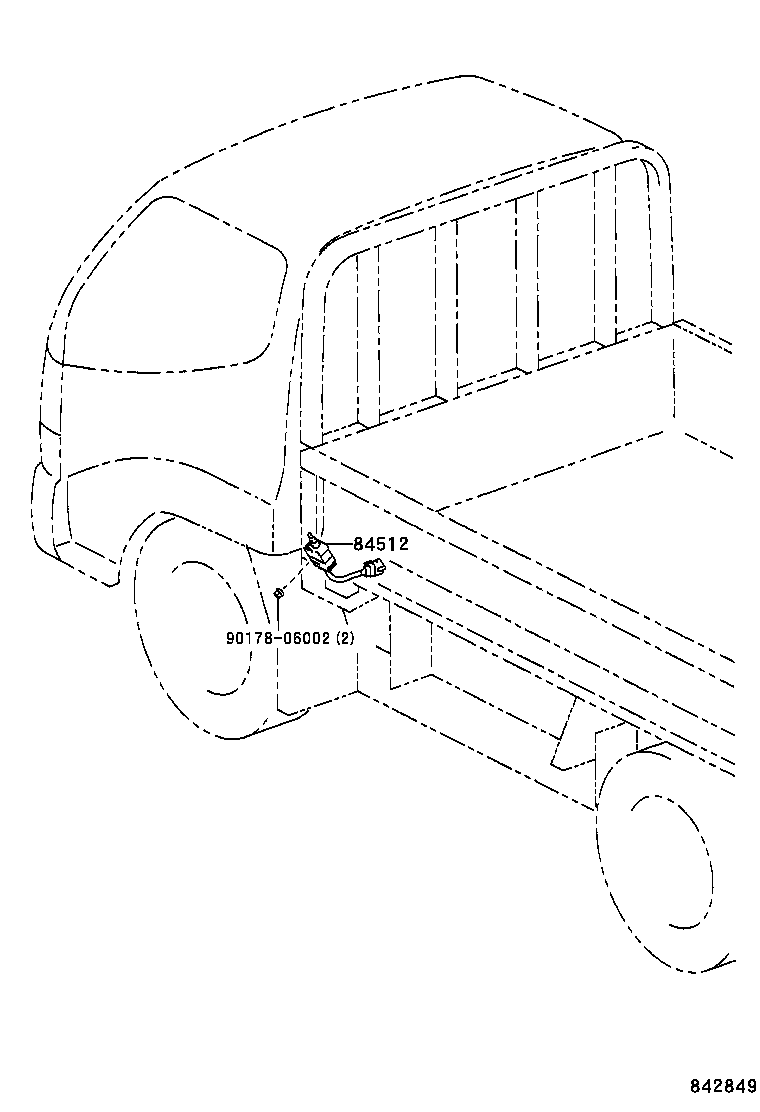

ILLUST NO. 9 OF10(9907- )

Click highlighted areas on diagram

TILT SWITCH

Part #	Description	Period	Qty	Price
Common parts
90178-06002

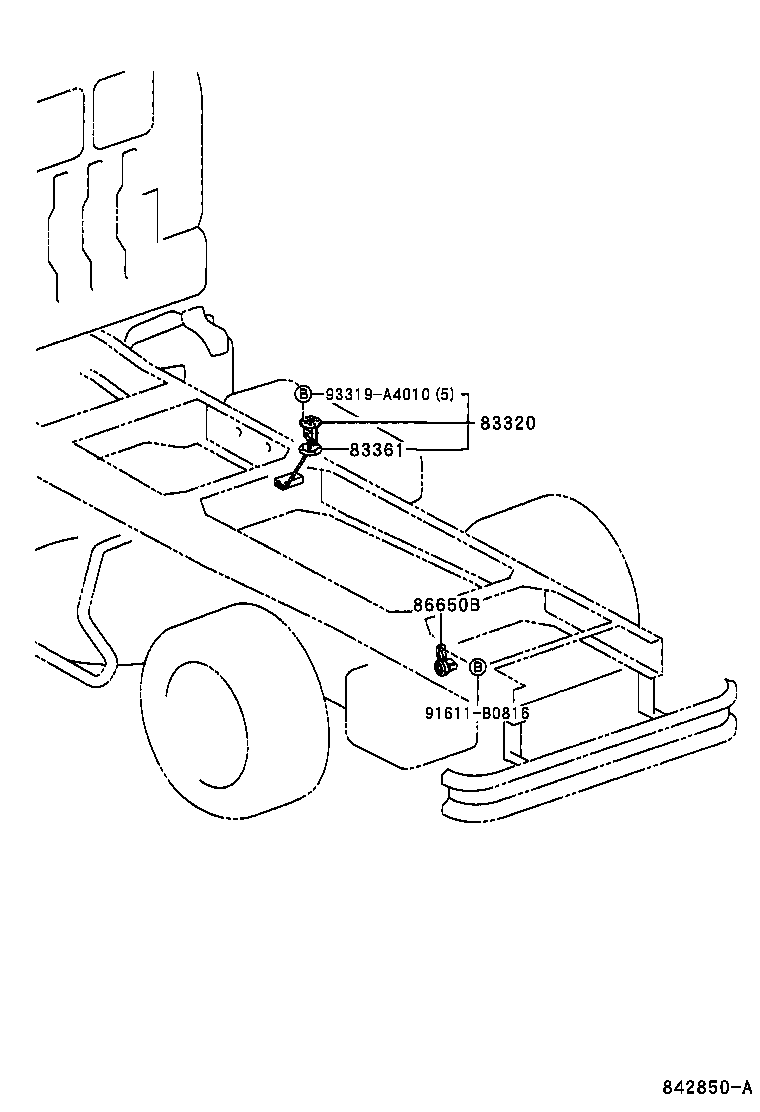

ILLUST NO.10 OF10(9907- )XZU300,320,330,340

Click highlighted areas on diagram

REAR BODY

Part #	Description	Period	Qty	Price
Common parts
91611-B0816
93319-A4010

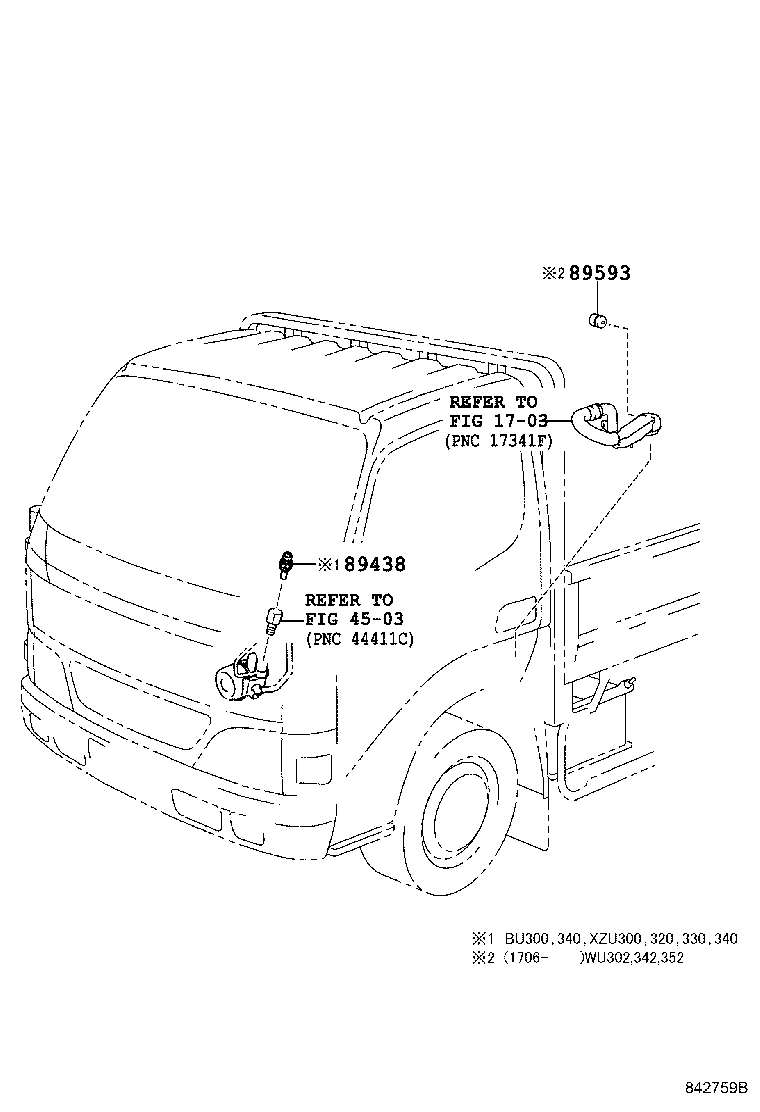

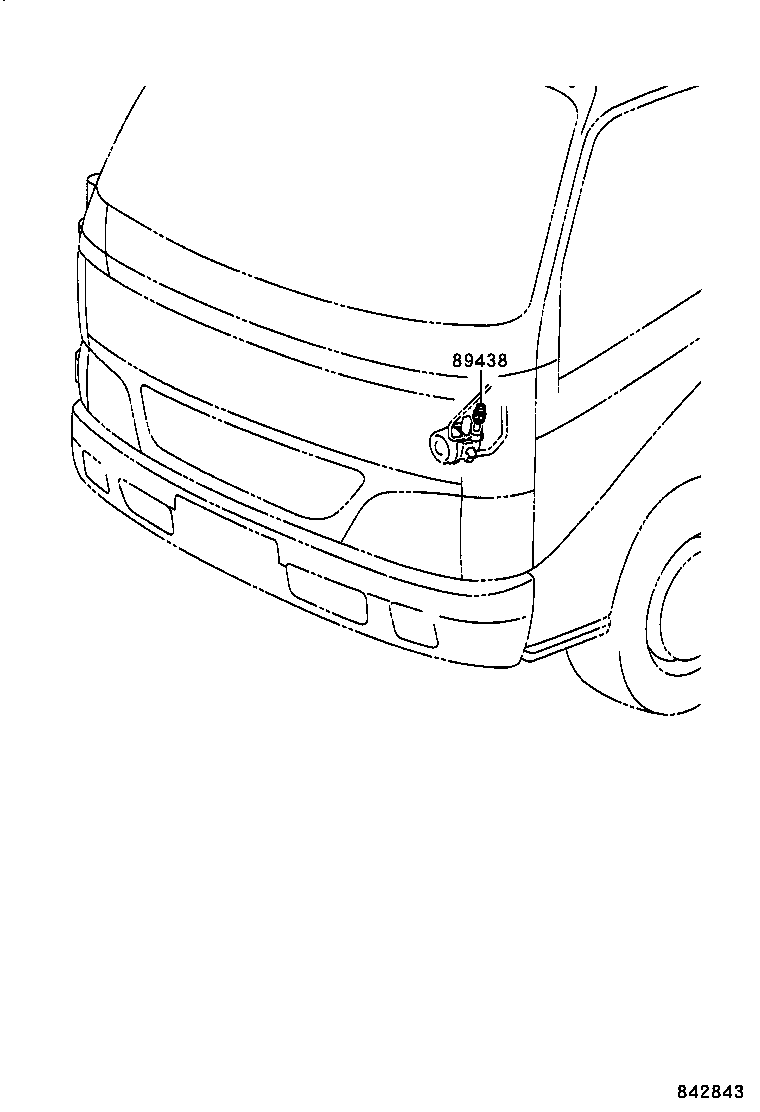

ILLUST NO. 4 OF10(0212-0610)BU300,340,XZU300,320,330,340 ; (1706-)

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
89438 - SWITCH, POWER STEERING OIL PRESSURE
89438-33010	XZU300,320,330,340	12/2002 - 10/2006	1
Linked diagrams
1703
4503

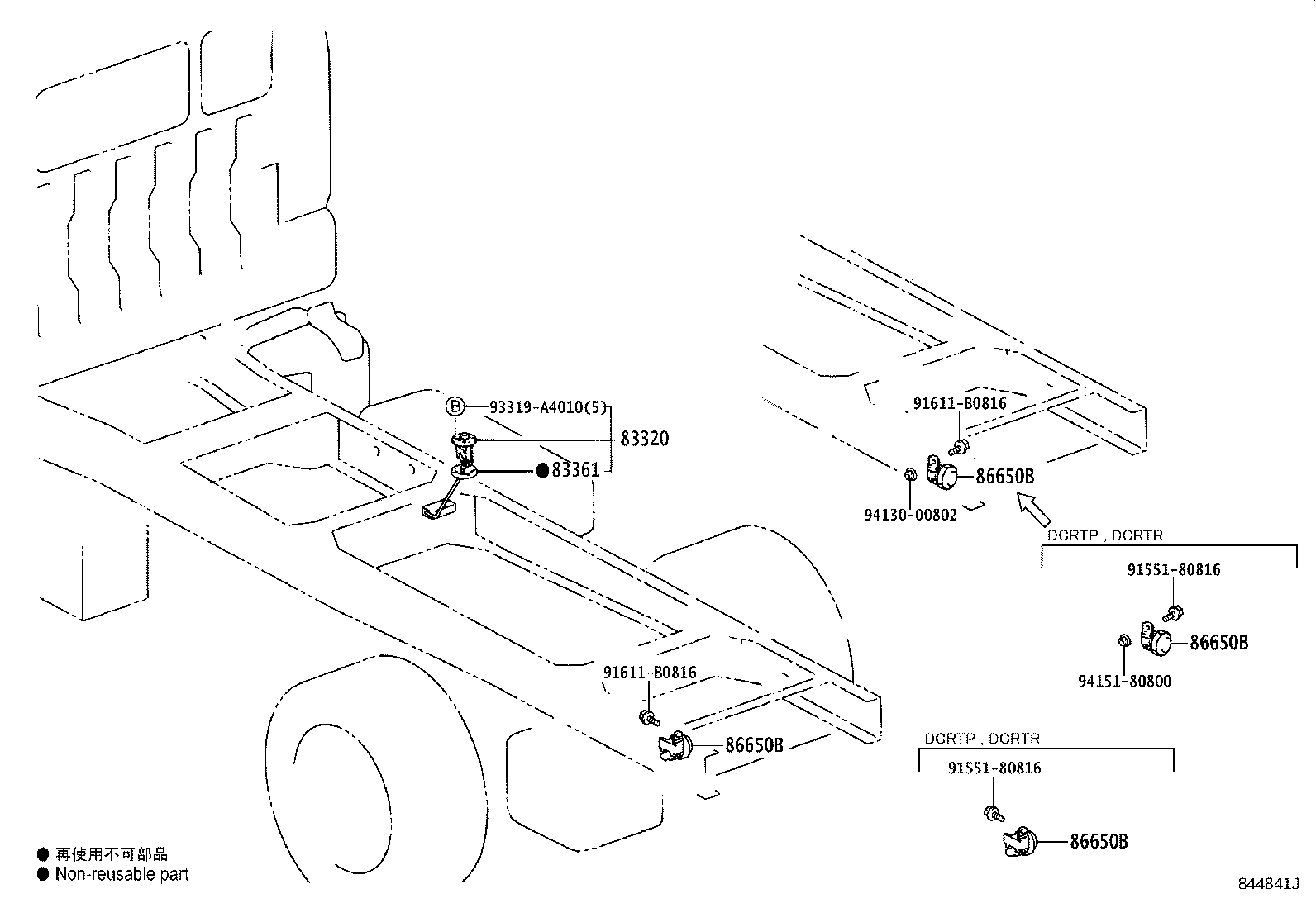

ILLUST NO.10 OF10(0209- )

Click highlighted areas on diagram

FRAME

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-80374	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	09/2002 - 10/2006	1
83361 - GASKET, FUEL SENDER GAGE
83361-20030	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
86650B - BUZZER ASSY, REVERSE WARNING
86650-37050	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
86650B - BUZZER ASSY, REVERSE WARNING
86650-37050	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
86650B - BUZZER ASSY, REVERSE WARNING
86650-37050	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
86650B - BUZZER ASSY, REVERSE WARNING
86650-37050	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
Common parts
91551-80816
91611-B0816
93319-A4010
94130-00802
94151-80800

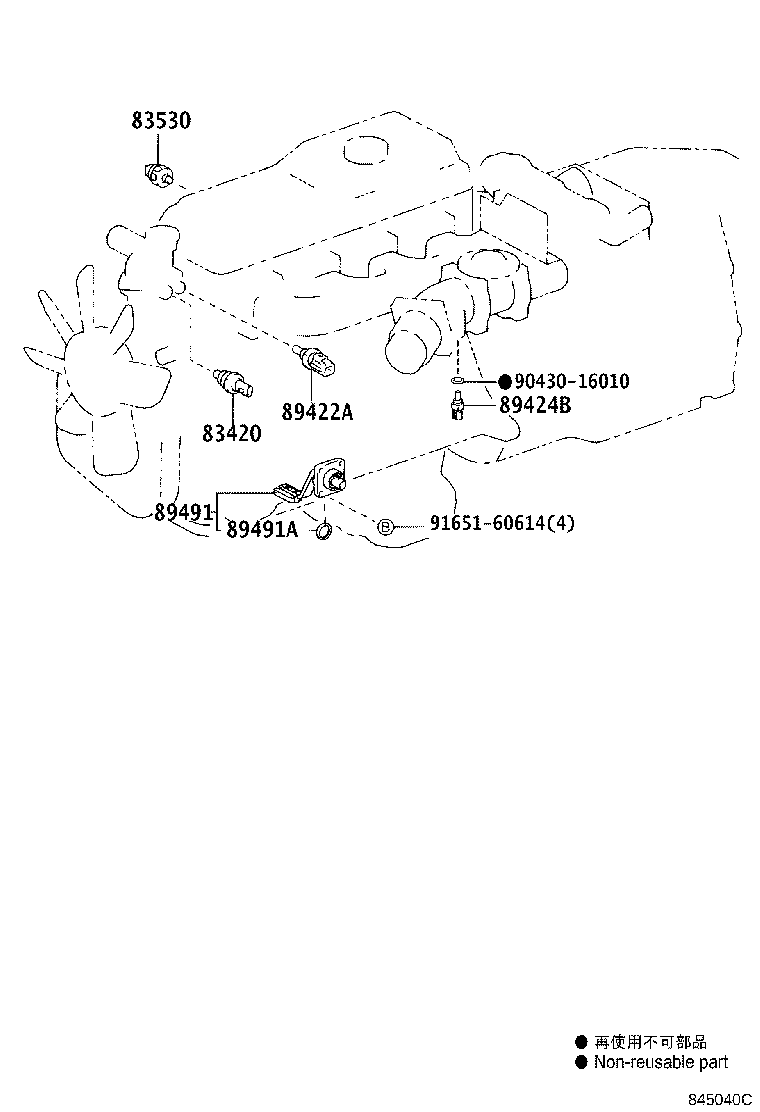

ILLUST NO. 1 OF10(0209-0612)BU30#,34#,XZU300,320,330,340

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16040	XZU300,320,330,340	12/2002 - 10/2006	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28010	XZU300,320,330,340 DENSO	12/2002 - 10/2006	1
83530-60010	XZU300,320,330,340 YAZAKI	12/2002 - 10/2006	1
89422A - SENSOR, WATER TEMPERATURE
89422-36010	BU303,343,XZU300,320,330,340..GEN,TAIW	12/2002 - 10/2004	1
89422-37030	BU303,343,XZU300,320,330,340..GEN,TAIW	11/2004 - 10/2006	1
89424B - SWITCH, INLET AIR TEMPERATURE
89424-28020	XZU300,320,330,340	12/2003 - 10/2006	1
89491 - SENSOR, ENGINE OIL LEVEL
89491-37030	XZU300,320,330,340	12/2002 - 10/2006	1
89491A - GASKET, ENGINE OIL LEVEL SENSOR
90430-27001	BU303,343,XZU300,320,330,340..GEN,TAIW	12/2002 - 10/2006	1
Common parts
90430-16010
91651-60614

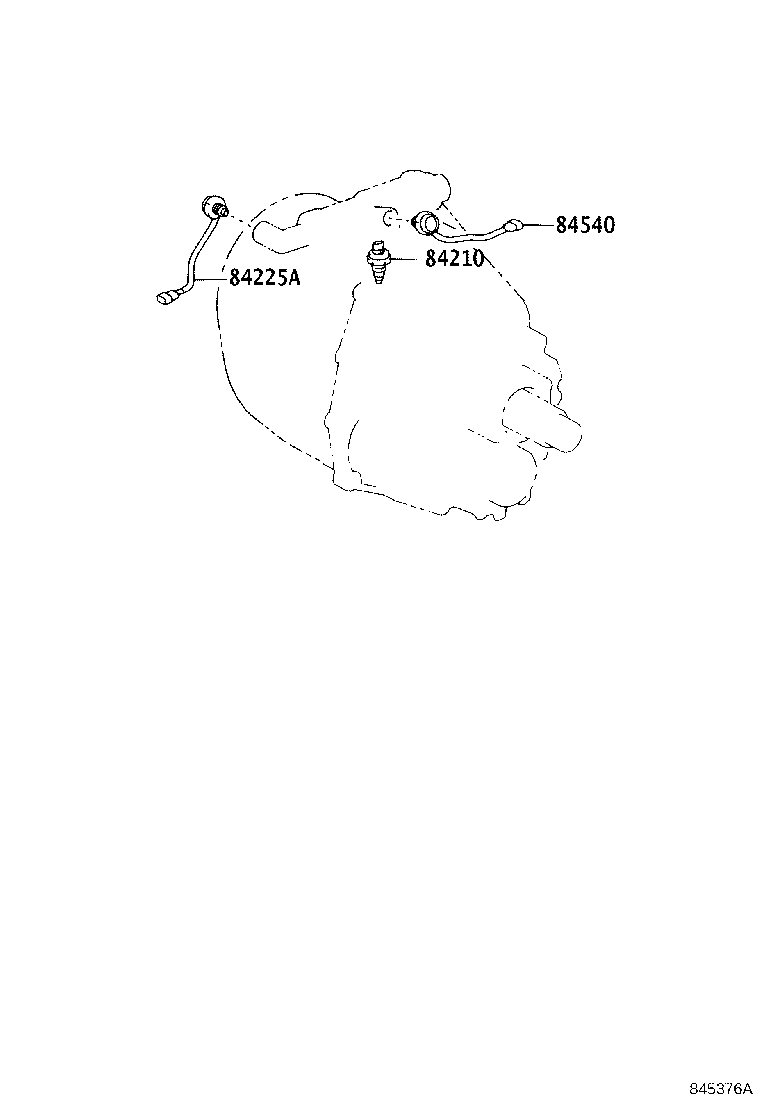

ILLUST NO. 2 OF10(0212-0610)BU300,340,XZU300,320,330,340

Click highlighted areas on diagram

TRANSMISSION

Part #	Description	Period	Qty
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	12/2002 - 10/2006	1
84225A - SWITCH, SHIFT POSITION
84225-37020	XZU300,320,330,340	12/2002 - 10/2006	1
84540 - SWITCH ASSY, NEUTRAL START
84540-37020	XZU300,320,330,340	12/2002 - 10/2006	1

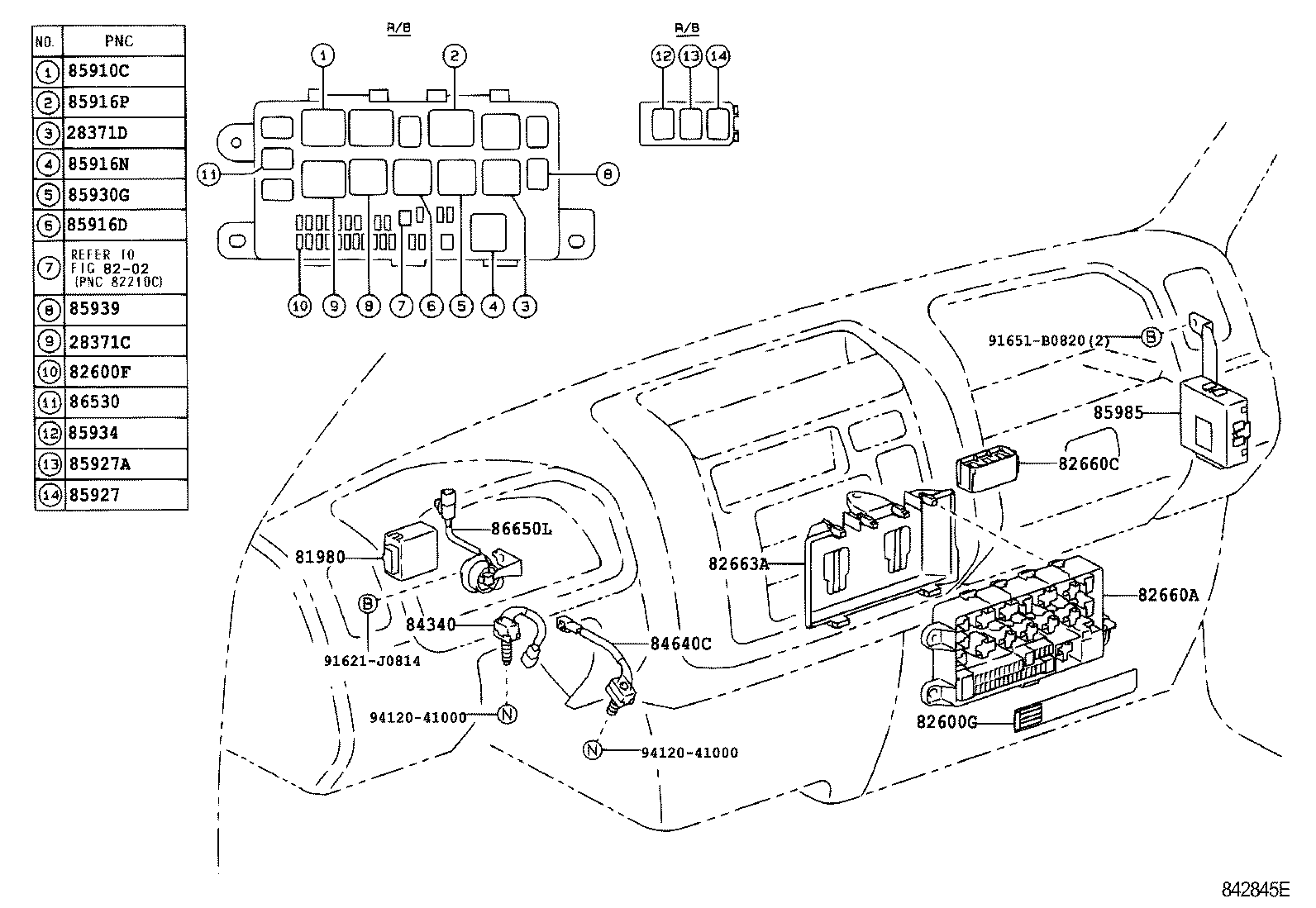

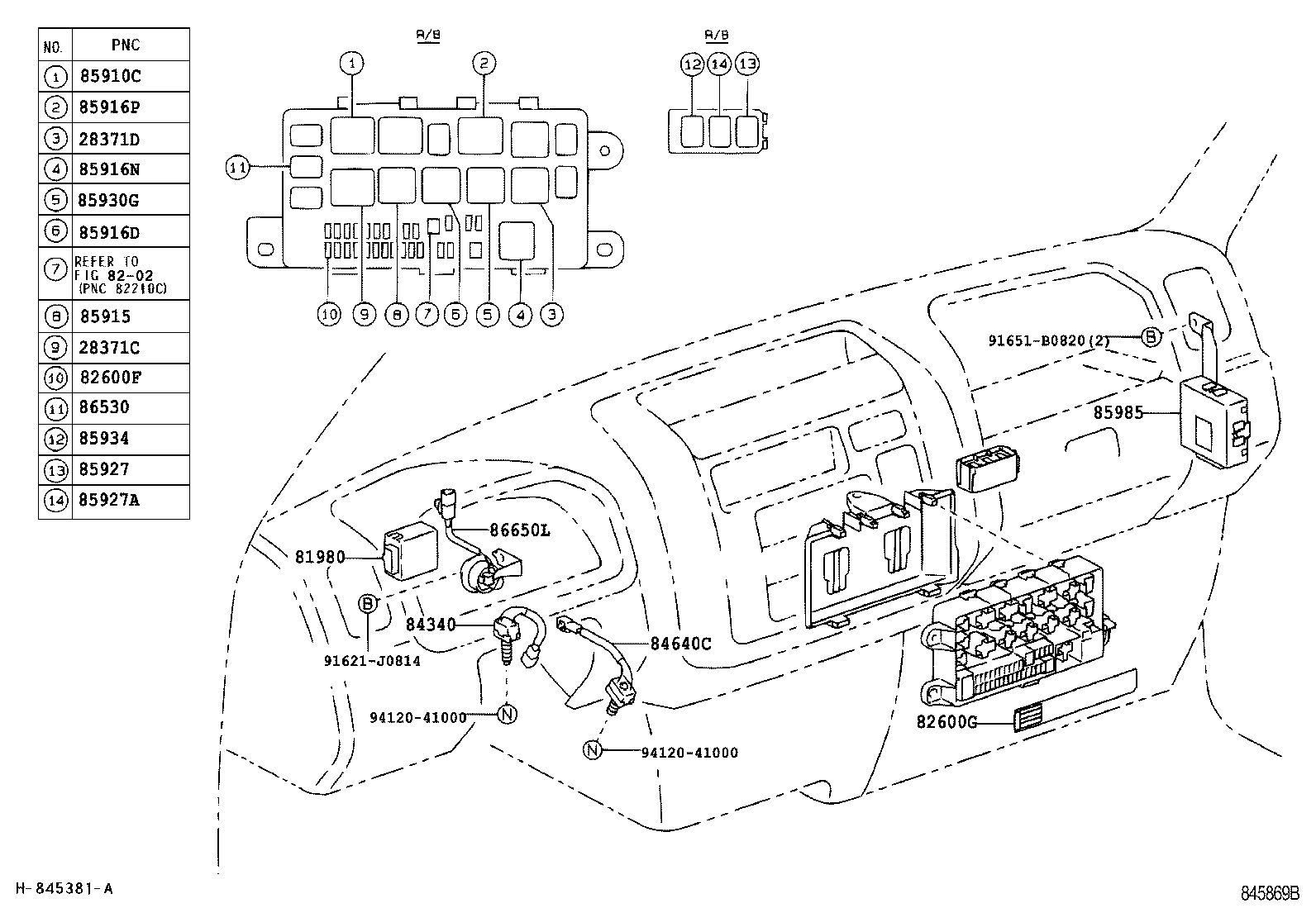

ILLUST NO. 5 OF10(0212-0610)LHD

Click highlighted areas on diagram

COWL

Part #	Description	Period	Qty
28371C - RELAY, IGNITION, NO.2
90987-02019	N04C,15BFTE..XZU30#,320,330,340,345	12/2002 - 10/2006	1
28371D - RELAY, IGNITION, NO.3
90987-02018	N04C,15BFTE..XZU30#,320,330,340,345	12/2002 - 10/2006	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-37080	XZU300,330,340	12/2002 - 10/2006	1
82600F - FUSE, FUSE BLOCK
90982-09010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 15A,MINI FUSE,BLUE	12/2002 - 10/2006	1
90982-09009	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 10A,MINI FUSE,RED	12/2002 - 10/2006	1
90982-09011	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 20A,MINI FUSE,YELLOW	12/2002 - 10/2006	1
90982-09008	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 7.5A,MINI FUSE,BRN	12/2002 - 10/2006	1
82600G - PLATE, CAUTION(FOR FUSE)
82683-37290	XZU300,320,330,340	12/2002 - 10/2006	1
84340 - SWITCH ASSY, STOP LAMP
84340-37020	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	09/2002 - 10/2006	1
84640C - SWITCH ASSY, EXHAUST RETARDER
84640-37050	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04007	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
85915 - RELAY, MAIN
90987-02018	XZU30#,320,330,340,345	12/2002 - 10/2006	1
85916D - RELAY, FOG LAMP
90987-02018	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	12/2002 - 10/2006	1
85916N - RELAY, TAIL LAMP
90987-02018	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
85916P - RELAY, HEADLAMP
90987-02019	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
85927 - RELAY, COOLING FAN
90987-02017	XZU30#,320,330,340,345	12/2002 - 10/2006	1
85927A - RELAY, COOLING FAN, NO.2
90987-02017	XZU300,320,330,340	12/2002 - 10/2006	1
85930G - RELAY, ACC
90987-02018	XZU30#,320,330,340,345	12/2002 - 10/2006	1
85934 - RELAY, MAGNET-CLUTCH
90987-02017	XZU30#,320,330,340,345	12/2002 - 10/2006	1
85985 - RELAY, KEY REMINDER
80590-37100	XZU300,320,330,340	12/2002 - 10/2006	1
86530 - RELAY ASSY, HORN
90987-02017	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
86650L - BUZZER ASSY, VACUUM WARNING
86650-37060	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
Common parts
91621-J0814
91651-B0820
94120-41000
Linked diagrams
8202

ILLUST NO. 6 OF10(0212-0610)XZU300,320,330,340

Click highlighted areas on diagram

R/B NO.2

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-58040	14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW	12/2002 - 10/2006	1
28371 - RELAY, IGNITION, NO.1
90987-02018	N04C,15BFTE..XZU30#,320,330,340,345	12/2002 - 10/2006	1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-58240	15BFTE..XZU300,320,330,340	12/2002 - 10/2006	1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-58240	15BFTE..XZU300,320,330,340	12/2002 - 10/2006	1
82600F - FUSE, FUSE BLOCK
90982-09010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 15A,MINI FUSE,BLUE	12/2002 - 10/2006	1
90982-09009	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 10A,MINI FUSE,RED	12/2002 - 10/2006	1
90982-09011	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 20A,MINI FUSE,YELLOW	12/2002 - 10/2006	1
90982-09008	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 7.5A,MINI FUSE,BRN	12/2002 - 10/2006	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37200	XZU300,320,330,340	12/2002 - 05/2004	1
82662-37201	XZU300,320,330,340	05/2004 - 10/2006	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37200	XZU300,320,330,340	12/2002 - 05/2004	1
82662-37201	XZU300,320,330,340	05/2004 - 10/2006	1
82760 - BRACKET ASSY, RELAY BLOCK
82760-37070	BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW	12/2002 - 10/2006	1
82760 - BRACKET ASSY, RELAY BLOCK
82760-37070	BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW	12/2002 - 10/2006	1
Common parts
82717-37020
90179-06158
90179-06171
90179-06274
90179-10015
91615-60825
94130-00802

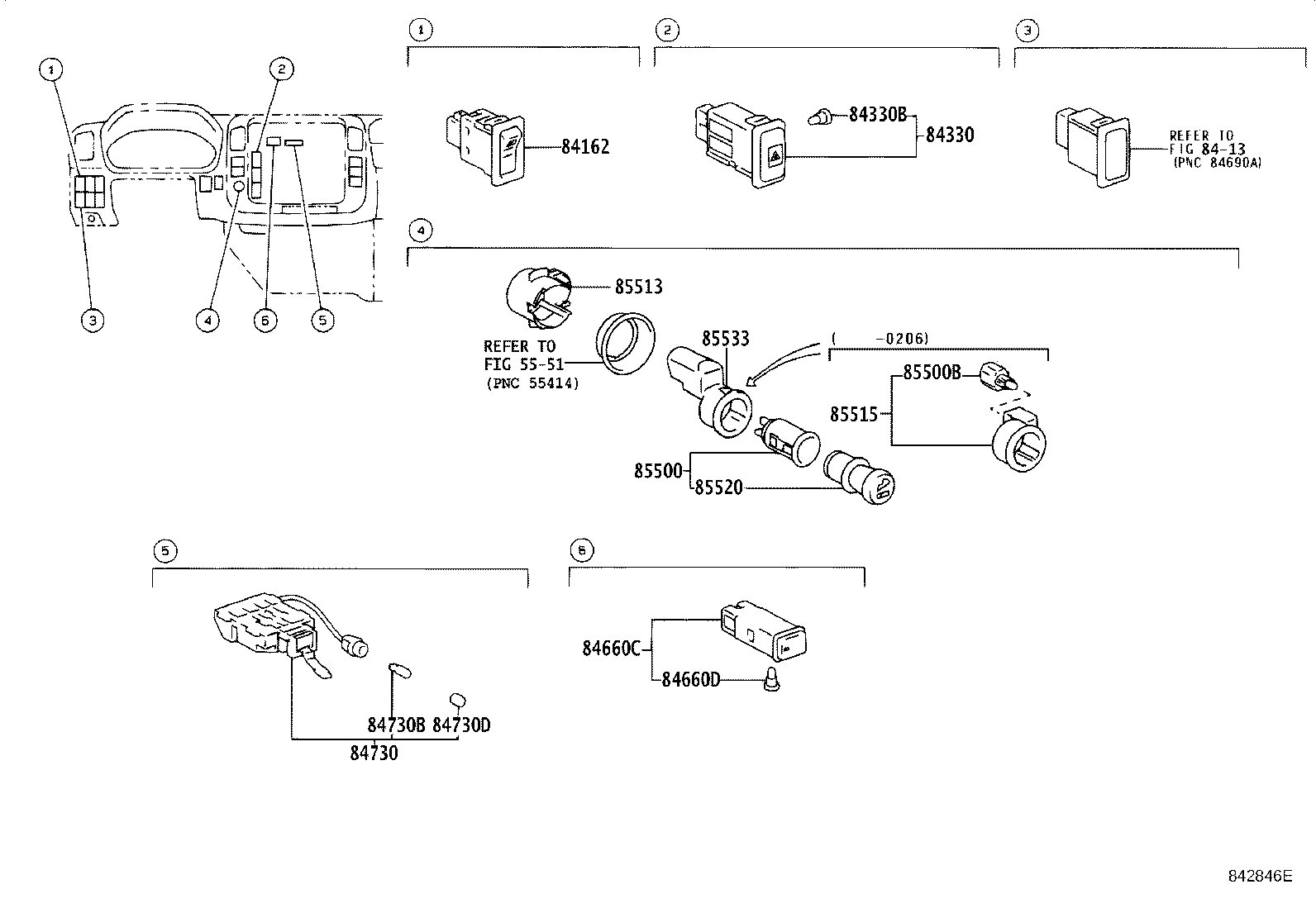

ILLUST NO. 7 OF10(0212-0610)XZU300,320,330,340

Click highlighted areas on diagram

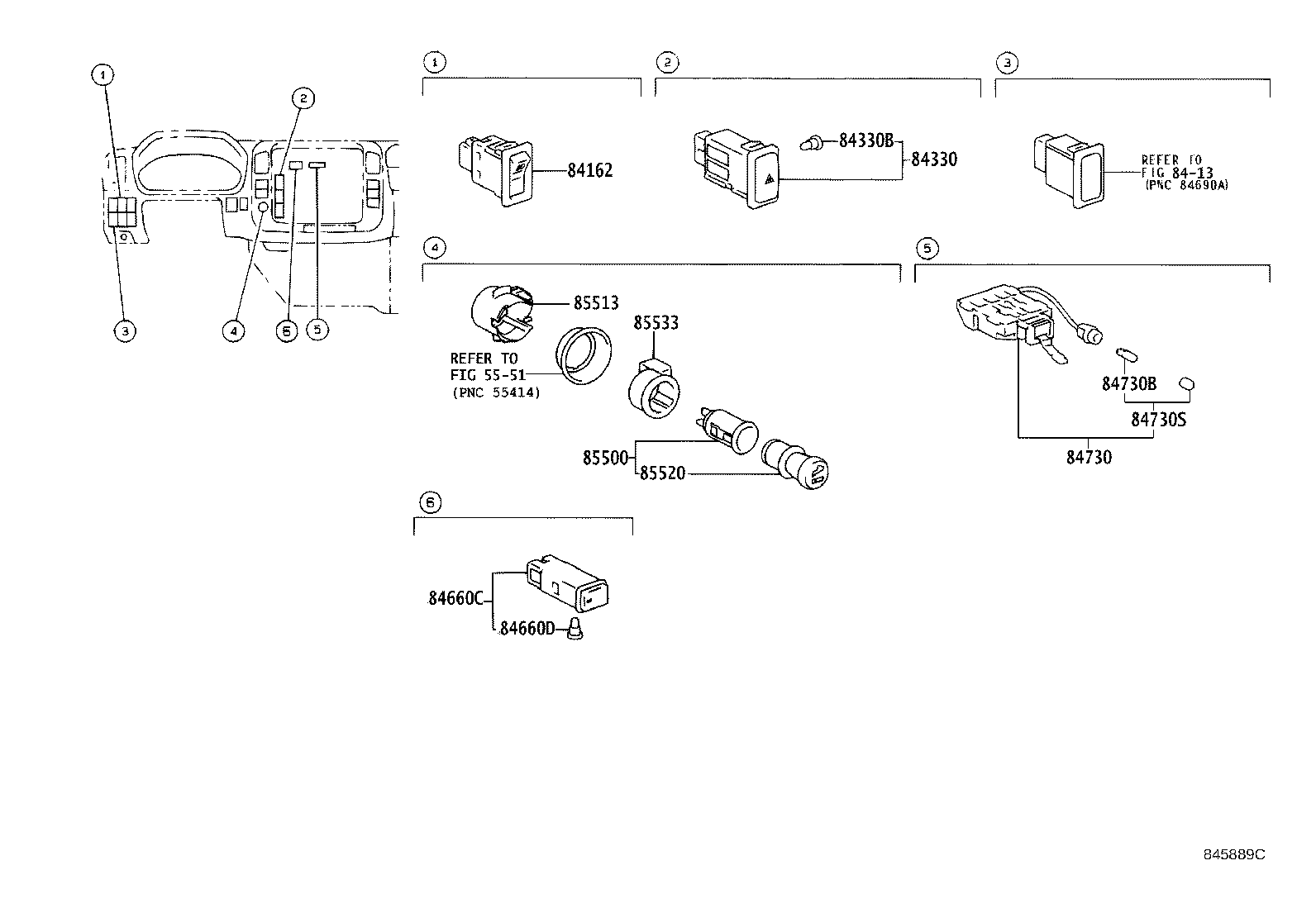

INSTRUMENT PANEL SWITCH

Part #	Description	Period	Qty
84162 - SWITCH, FRONT FOG LAMP
84160-37030	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-37090	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10570	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 28V 0.024A	09/2002 - 10/2006	1
84660C - SWITCH, COOLER
84660-37010	XZU30#,320,330,340,345	12/2002 - 10/2006	1
84660D - BULB(FOR COOLER SWITCH)
88607-37010	XZU30#,320,330,340,345 28V 0.87W	12/2002 - 10/2006	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-37050	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
84730B - BULB, HEATER BLOWER SWITCH
90981-16020	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 24V 1.8W	12/2002 - 10/2006	1
84730S - BULB, HEATER BLOWER SWITCH
90010-01153	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 24V 1.8W,W(CAP)	12/2002 - 10/2006	1
85500 - LIGHTER ASSY, CIGARETTE
85500-36020	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
85513 - COVER, CIGARETTE LIGHTER
85513-12020	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-95400	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-26010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
Linked diagrams
5551
8413

(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90109-11002
90109-11008
90164-50048
90170-11206
90201-09351
90461-07028
90468-08007
93315-14012
93319-15012
93540-16014
93566-14512
Linked diagrams
5551

(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90179-06011
90179-06015
90179-06070
90179-06078
91511-40612
91551-40616
91611-40612
91611-40616
91651-40612
91651-40616
91651-40816
93319-15008
93319-15014
94115-40500
94120-40800
Linked diagrams
1903
8406
8501

(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06142
90179-06007
90179-06158
90464-00190
90560-08268
91611-40812
91611-40816
91611-41025
91651-40612
91651-40820
91656-40818
93319-14010
94110-40800
94120-41000
Linked diagrams
4711

(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-36020
90202-10012

XZU330L-TKMSWR3 (2002)

ILLUST NO. 1 OF 1(9907- )XZU300,320,330,340

ILLUST NO. 2 OF10(9907- )

ILLUST NO. 3 OF10(9907- )XZU300,320,330,340

ILLUST NO. 4 OF10(9907- )XZU300,320,330,340

ILLUST NO. 5 OF10(9907- )XZU300,320,330,340

ILLUST NO. 6 OF10(9907- )XZU300,320,330,340

ILLUST NO. 7 OF10(9907- )XZU300,320,330,340

ILLUST NO. 8 OF10(9907- )XZU300,320,330,340

ILLUST NO. 9 OF10(9907- )

ILLUST NO.10 OF10(9907- )XZU300,320,330,340

ILLUST NO. 4 OF10(0212-0610)BU300,340,XZU300,320,330,340 ; (1706-)

ILLUST NO.10 OF10(0209- )

ILLUST NO. 1 OF10(0209-0612)BU30#,34#,XZU300,320,330,340

ILLUST NO. 2 OF10(0212-0610)BU300,340,XZU300,320,330,340

ILLUST NO. 5 OF10(0212-0610)LHD

ILLUST NO. 6 OF10(0212-0610)XZU300,320,330,340

ILLUST NO. 7 OF10(0212-0610)XZU300,320,330,340

(7708- )

(7708- )

(7708- )

(7708- )

Part Price Details
