XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )

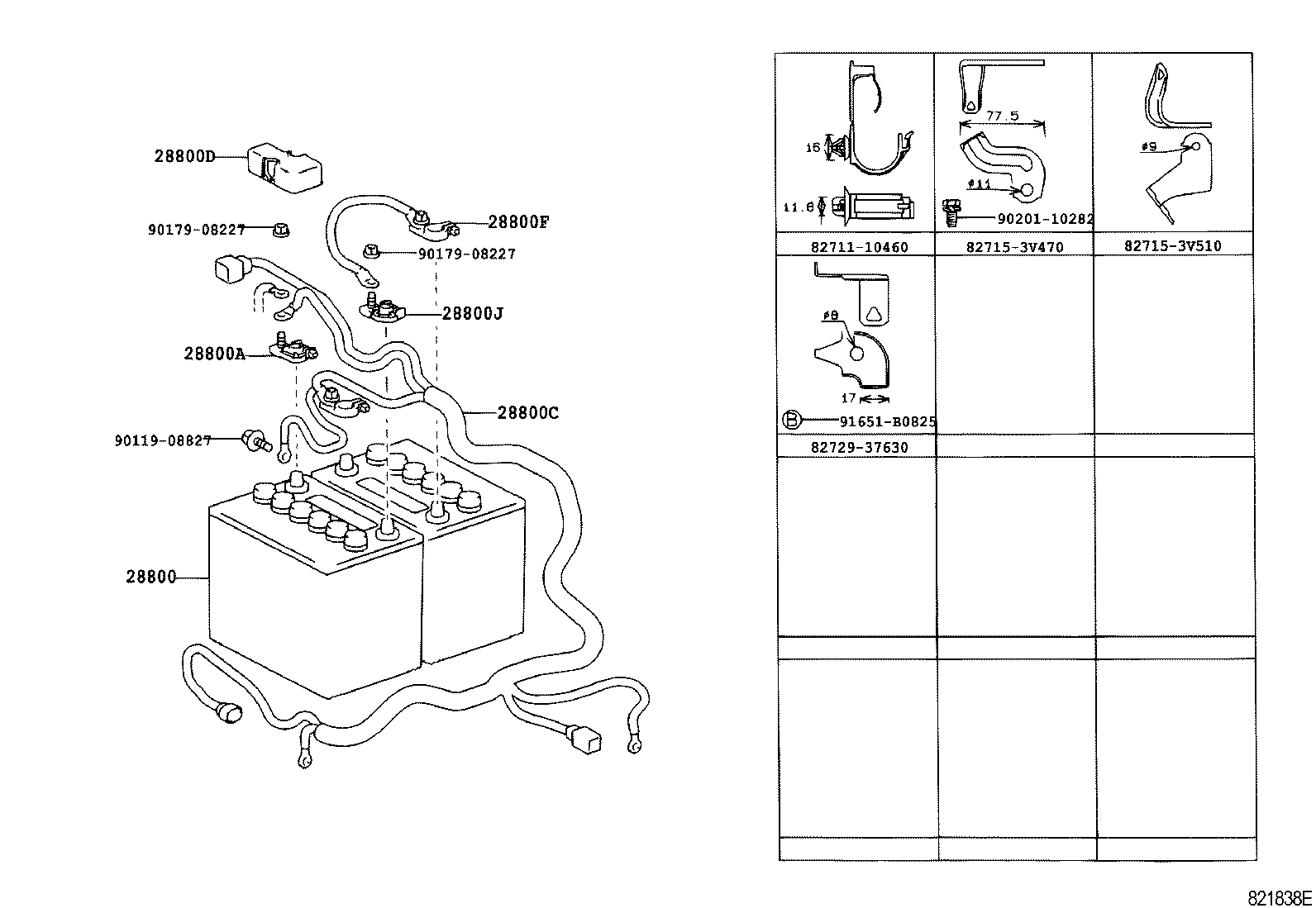

Click highlighted areas on diagram

diagram 28800 28800A 28800C 28800D 28800F 28800J 8271110460 827153V470 827153V510 8272937630 9011908827 9017908227 9017908227 9020110282 91651B0825
Part # Description Qty Price
Common parts
82711-10460
82715-3V470
82715-3V510
82729-37630
90119-08827
90179-08227
90201-10282
91651-B0825

(0212-0610)ARL,GCC,GEN,TAIW ; (0304-0712)SA

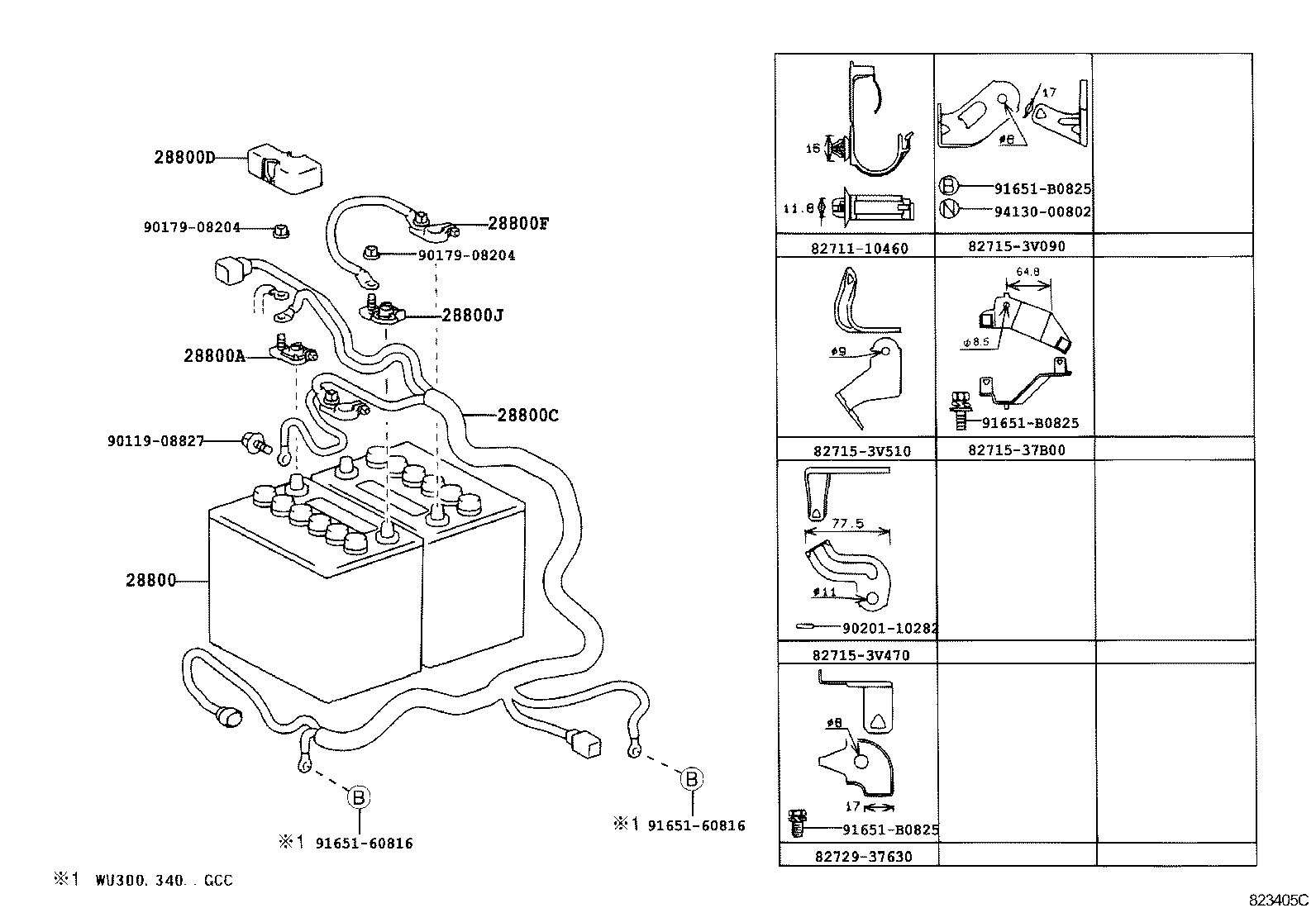

Click highlighted areas on diagram

diagram 28800 28800A 28800C 28800D 28800F 28800J 8271110460 8271537B00 827153V090 827153V470 827153V510 8272937630 9011908827 9017908204 9017908204 9020110282 9165160816 9165160816 91651B0825 91651B0825 91651B0825 9413000802
Part # Description Qty Price
28800 - BATTERY
28800-64182

15BFTE..XZU300..65T;14B,15BFTE..BU30#,34#,XZU320,330,340..ARL,GEN,TAIW

95D31L

 2
28800-64181

15BFTE..XZU300..65T;14B,15BFTE..BU303,343,XZU320,330,340..GEN,TAIW

95D31L

 2
28800A - TERMINAL, BATTERY POSITIVE
90982-05042

N04C,W04D,14B,15BFTE..BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-37140

14B,15BFTE..BU303,343,XZU300,330,340..GEN,TAIW

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-37071

N04C,W04D,14B,15BFTE..BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
28800F - CABLE, BATTERY TO BATTERY
82123-37040

N04C,W04D,14B,15BFTE..BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06028

N04C,W04D,14B,15BFTE..BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
Common parts
82711-10460
82715-37B00
82715-3V090
82715-3V470
82715-3V510
82729-37630
90119-08827
90179-08204
90201-10282
91651-60816
91651-B0825
94130-00802

(7708- )

Click highlighted areas on diagram

diagram 28800 28800 28800 28800B 28800B 28800C 28800C 28800C 28800F 8202 8202 8202 8202 8202 8202 9046108109 9046108282 9046108746 9046110294 9046110295 9046308124 9046308375 9046315298 9161140816 9161140820 9411040800 9411040800
Part # Description Qty Price
Common parts
90461-08109
90461-08282
90461-08746
90461-10294
90461-10295
90463-08124
90463-08375
90463-15298
91611-40816
91611-40820
94110-40800
Linked diagrams
8202
