XZU330L-TKMSWR3 (2002)
Toyota Dyna
Production
Dec 2002
-
Oct 2006
Engine
15BFTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9907- )

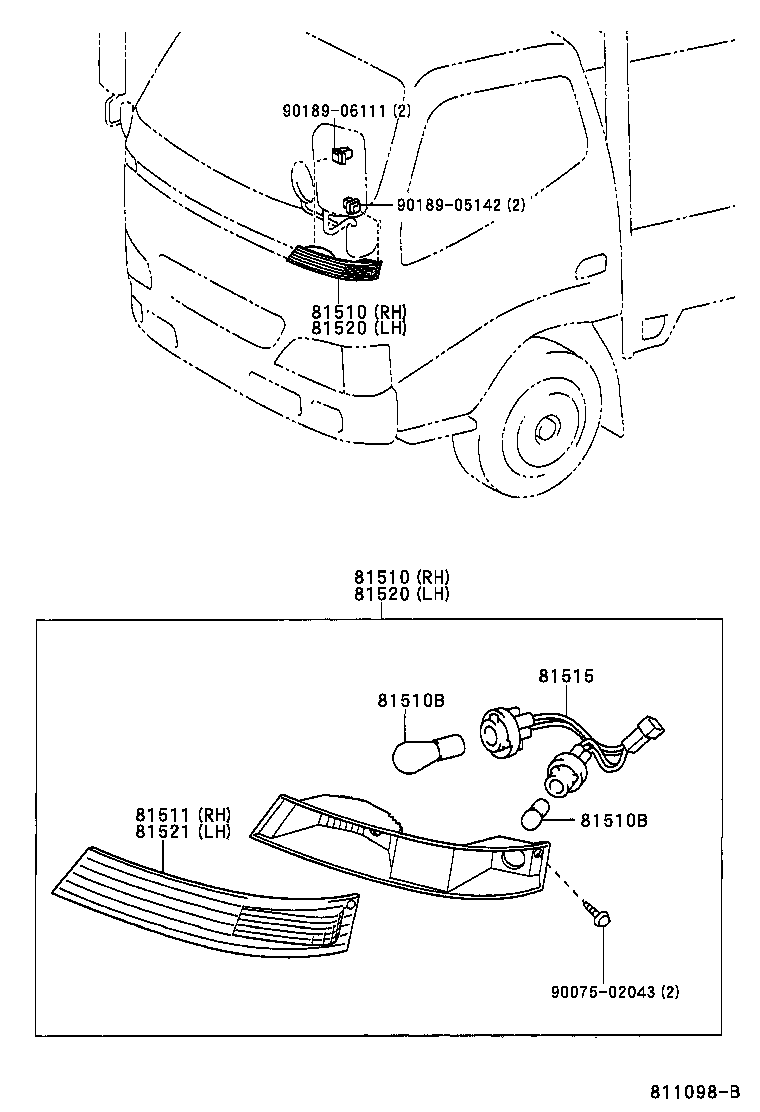

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90075-02043 | ||||
| 90189-05142 | ||||
| 90189-06111 | ||||
(0212- )XZU300,320,330,340

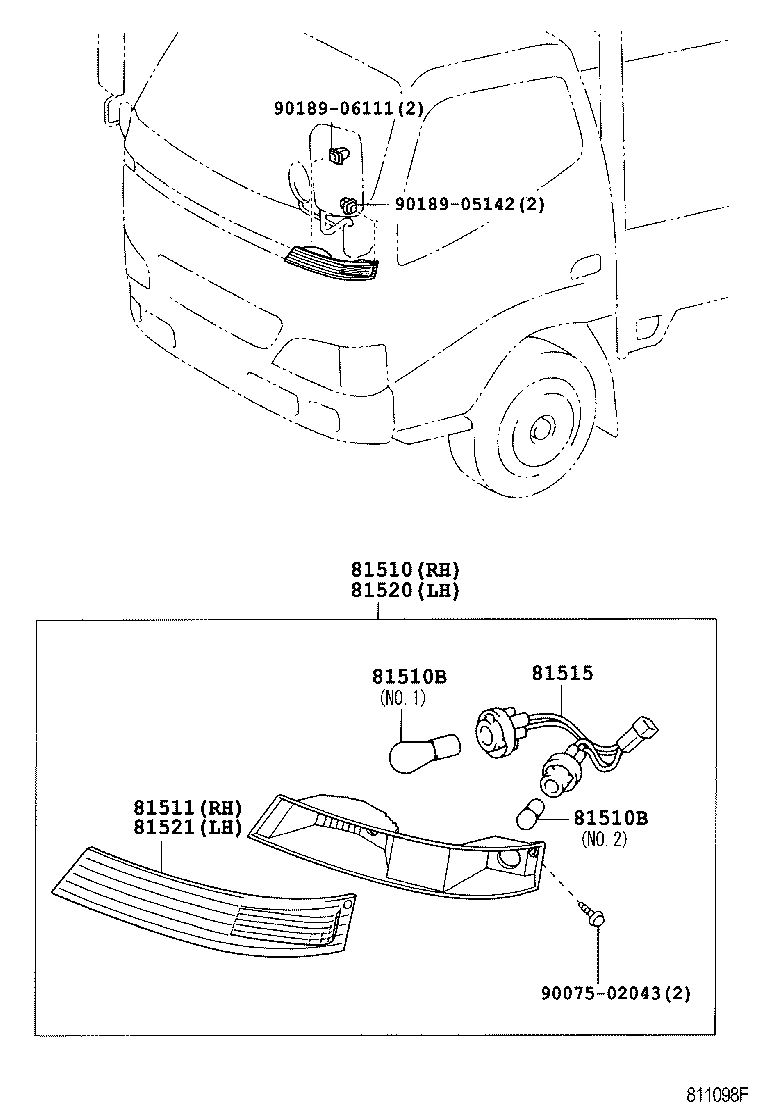

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-37101 |
XZU300,320,330,340 |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-16014 |
XZU300,320,330,340 24V 21W,NO.1 |
2 | ||
| 90981-16017 |
XZU300,320,330,340 24V 10W,NO.2 |
2 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-16014 |
XZU300,320,330,340 24V 21W,NO.1 |
2 | ||
| 90981-16017 |
XZU300,320,330,340 24V 10W,NO.2 |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-37100 |
XZU300,320,330,340 |
1 | ||
| 81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY | ||||
| 81515-37100 |
XZU300,320,330,340 |
2 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-37101 |
XZU300,320,330,340 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-37100 |
XZU300,320,330,340 |
1 | ||
| Common parts | ||||
| 90075-02043 | ||||
| 90189-05142 | ||||
| 90189-06111 | ||||
(7708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 81518-95400 | ||||
| 81519-95400 | ||||
| 90189-05007 | ||||
