XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )XZU300,320,330,340

Click highlighted areas on diagram

diagram 78010A 78010A 78100 78110A 78111 78116 78117 78119 78130 78130 78150C 78183B 78189 78199B 78199B 8271237200 9011906899 9017010054 9095001865 91651B0616 9356055016 9415080600
Part # Description Qty Price
Common parts
82712-37200
90119-06899
90170-10054
90950-01865
91651-B0616
93560-55016
94150-80600

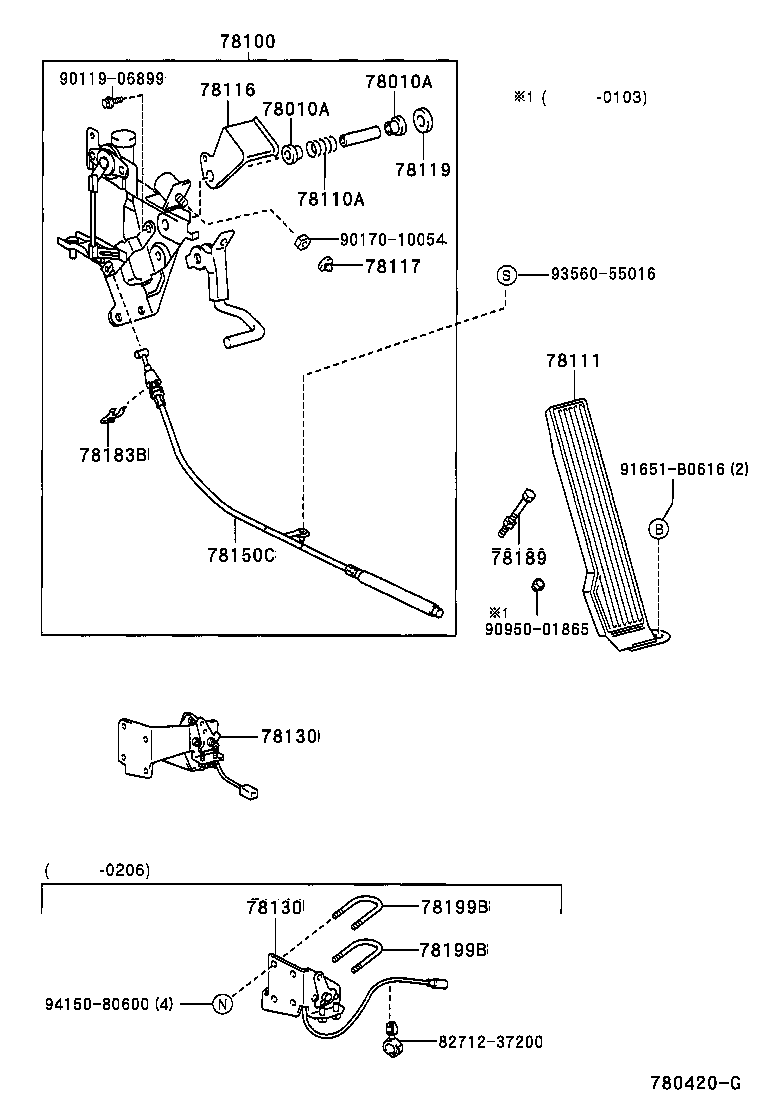

(0212-0610)XZU300,320,330,340

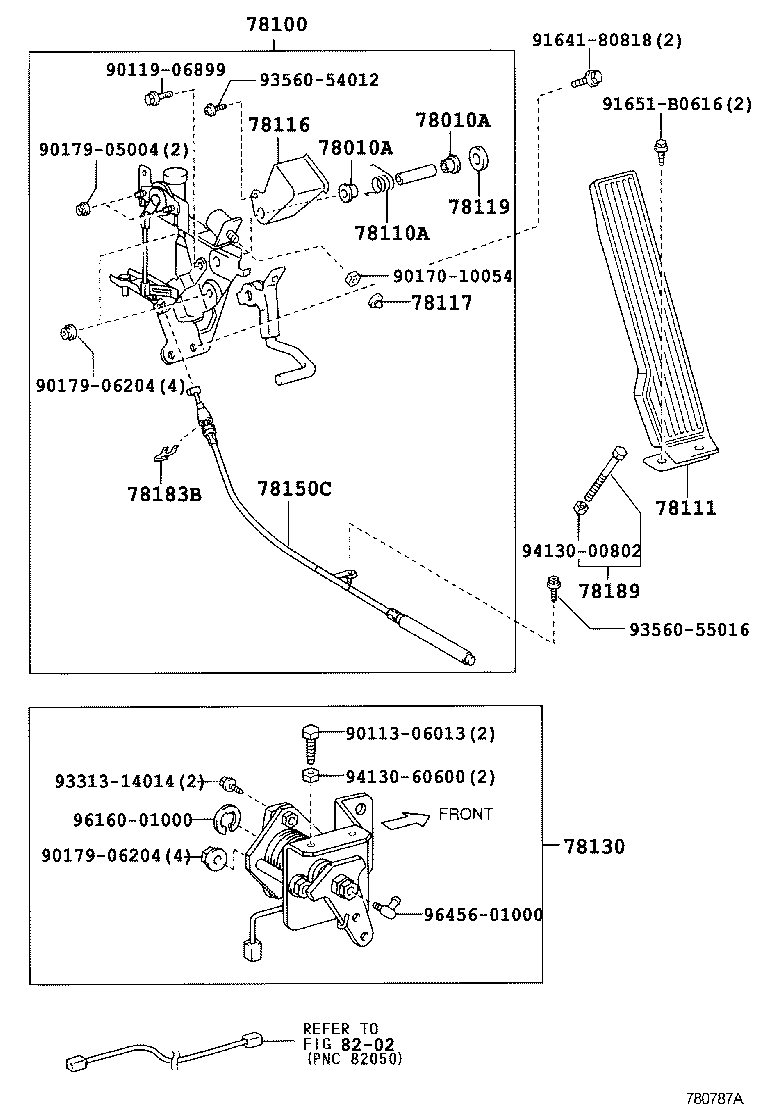

Click highlighted areas on diagram

diagram 78010A 78010A 78100 78110A 78111 78116 78117 78119 78130 78150C 78183B 78189 8202 9011306013 9011906899 9017010054 9017905004 9017906204 9017906204 9164180818 91651B0616 9331314014 9356054012 9356055016 9413000802 9413060600 9616001000 9645601000
Part # Description Qty Price
78010A - BUSH (FOR ACCELERATOR LINK)
90386-08065

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 2
78010A - BUSH (FOR ACCELERATOR LINK)
90386-08065

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 2
78100 - LINK ASSY, ACCELERATOR
78100-37620

XZU300,320,330,340

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03243

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
78111 - PEDAL, ACCELERATOR
78010-37010

BU303,343,WU300,340,XZU300,320,330,340..LHD

 1
78116 - COVER, ACCELERATOR PEDAL ROD
78116-37010

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06038

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-95J00

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78130-37021

XZU300,320,330,340

 1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-37490

XZU300,320,330,340

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-26170

XZU300,320,330,340

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-37090

XZU300,320,330,340

 1
Common parts
90113-06013
90119-06899
90170-10054
90179-05004
90179-06204
91641-80818
91651-B0616
93313-14014
93560-54012
93560-55016
94130-00802
94130-60600
96160-01000
96456-01000
Linked diagrams
8202

(7708- )

Click highlighted areas on diagram

diagram 78166A 7816995404 9004464004 9046108008 9046108109 9046108240 9046108269 9046108271 9046108279 9046108280 9046108523 9046110317 9046110383 9046110866 9046110866 9046304202 9046306097 9046306161 9046310336 9046310336 9046310337 9046312009 9046312010 9046315298 9046315439 9046400020 9046400034 9046400166 9046400166 9046808001 9046816012 9048001053 9095901024 9095901026 9161140816 9161140816 9161540816 9165140614 9165140614 9165140614 9165140614 9165140614 9165140820 9338516016 9338516016 9338516016 9338615014 9338615014 9411040800
Part # Description Qty Price
Common parts
78169-95404
90044-64004
90461-08008
90461-08109
90461-08240
90461-08269
90461-08271
90461-08279
90461-08280
90461-08523
90461-10317
90461-10383
90461-10866
90463-04202
90463-06097
90463-06161
90463-10336
90463-10337
90463-12009
90463-12010
90463-15298
90463-15439
90464-00020
90464-00034
90464-00166
90468-08001
90468-16012
90480-01053
90959-01024
90959-01026
91611-40816
91615-40816
91651-40614
91651-40820
93385-16016
93386-15014
94110-40800
