XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )

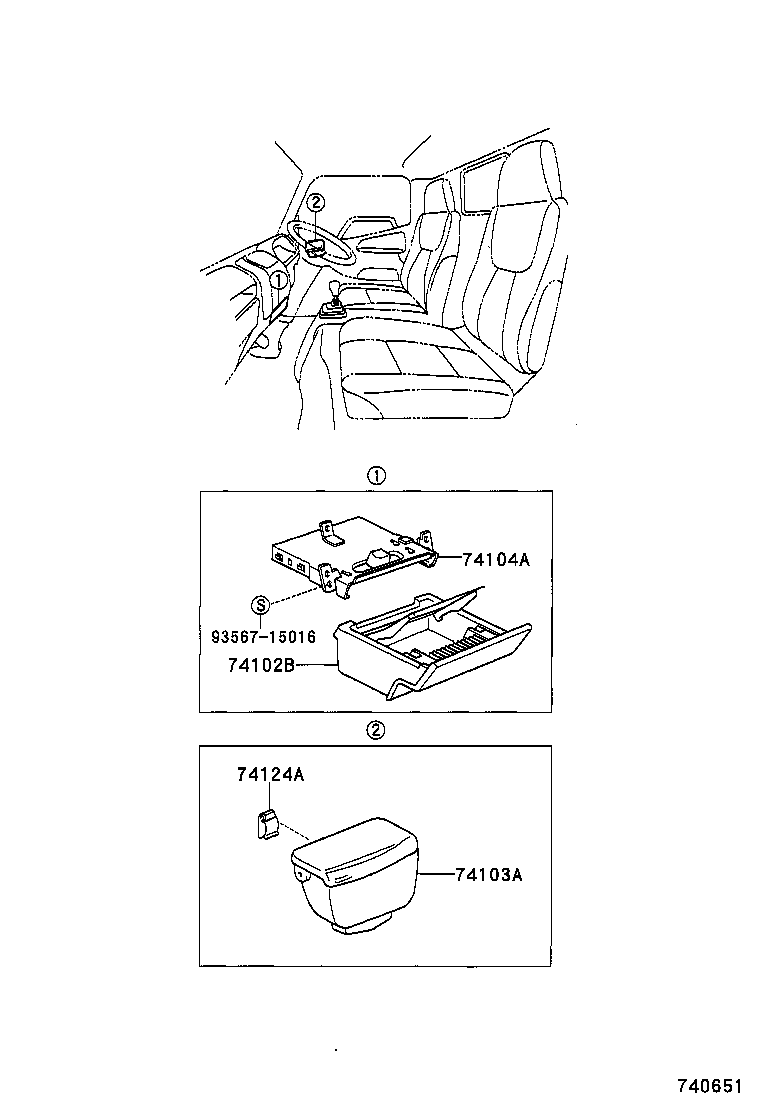

Click highlighted areas on diagram

diagram 74102B 74103A 74104A 74124A 9356715016
Part # Description Qty Price
Common parts
93567-15016

(0209- )

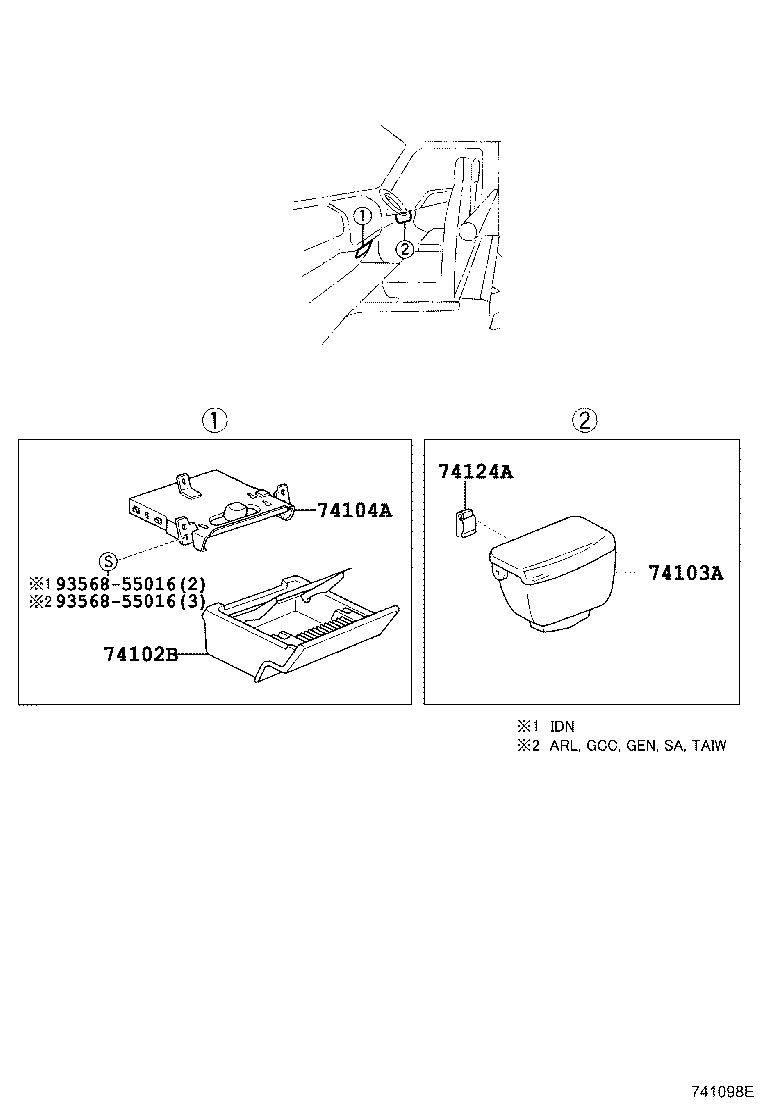

Click highlighted areas on diagram

diagram 74102B 74103A 74104A 74124A 9356855016 9356855016
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-37010B0

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

MD.CHARCOAL,TRIM1#

 1
74103A - DOOR SUB-ASSY, FRONT ASH RECEPTACLE
74103-37010B0

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

MD.CHARCOAL,TRIM1#

 2
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-37030

BU303,343,WU300,340,XZU300,320,330,340..LHD

 1
74124A - SPRING, ASH RECEPTACLE
74124-37010

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
Common parts
93568-55016

(7708- )

Click highlighted areas on diagram

diagram 74102A 74103 74103 74104 74105 74106 74140 74141 74141 74179 9331215012 9331914010 9331914010 9331914010 9354046014
Part # Description Qty Price
Common parts
93312-15012
93319-14010
93540-46014
