XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )

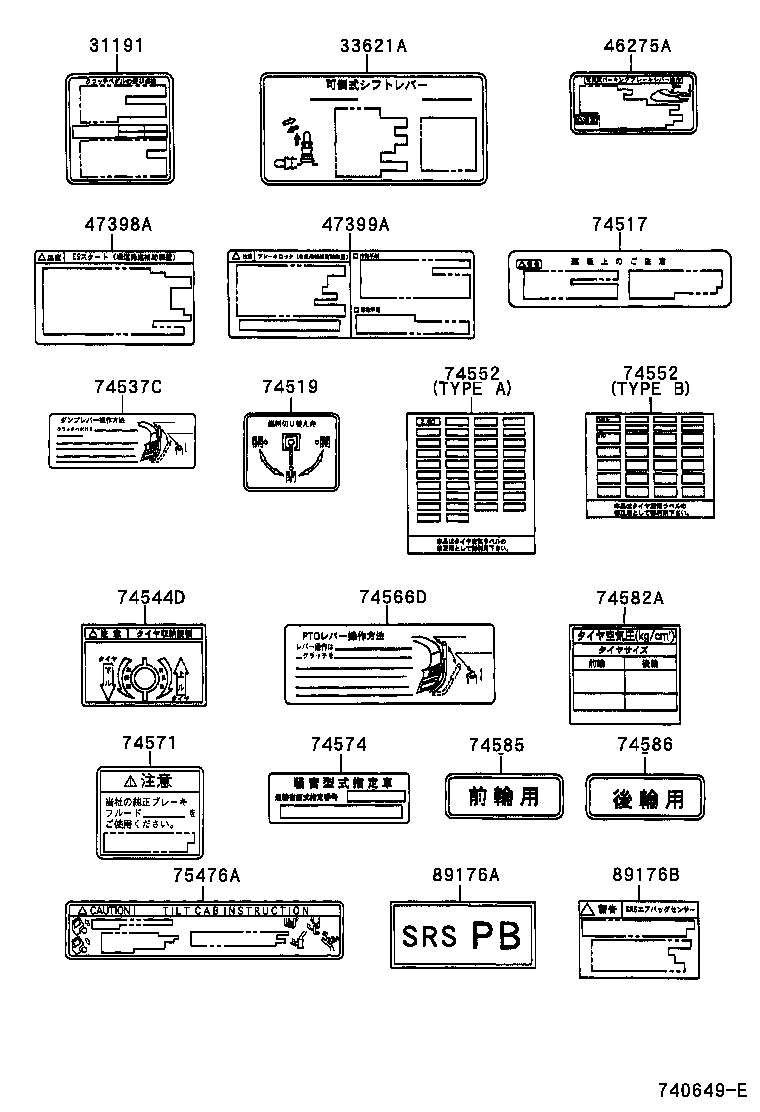

Click highlighted areas on diagram

diagram 31191 33621A 46275A 47398A 47399A 74517 74519 74537C 74544D 74552 74552 74566D 74571 74574 74582A 74585 74586 75476A 89176A 89176B
Part # Description Qty Price

(0209- )

Click highlighted areas on diagram

diagram 28897A 47398A 74511F 74537F 74538B 74544D 74552A 74566D 74567A 74751 75476A
Part # Description Qty Price
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-37060

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

*111

 1
75476A - PLATE, TILT OPERATIONAL CAUTION
75476-37061

BU303,343,XZU30#,320,330,340,345..ARL,GEN,TAIW

ENGLISH

 1

(7708- )

Click highlighted areas on diagram

diagram 74534 74534 74540 74556 74565 74571 74571 74582 75476 75476A
Part # Description Qty Price
