XZU330L-TKMSWR3 (2002)
Toyota Dyna
Production
Dec 2002
-
Oct 2006
Engine
15BFTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0212- )LHD

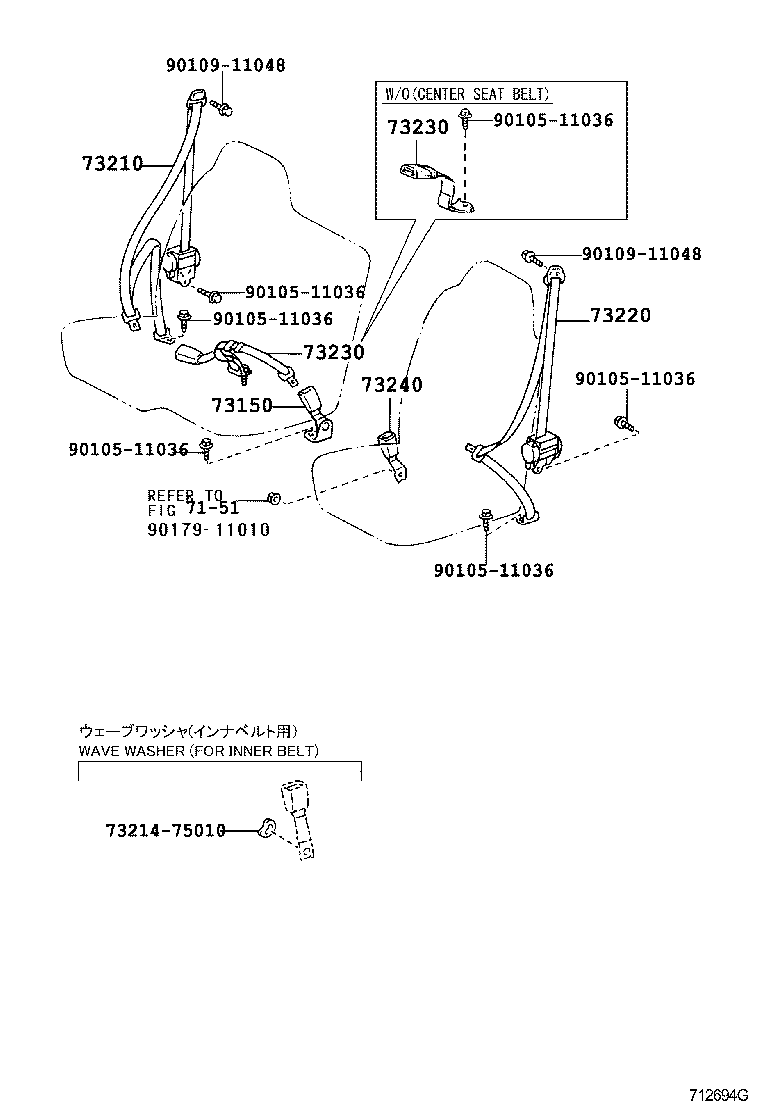

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER | ||||
| 73150-37050B0 |
BU303,343,WU300,340,XZU300,320,330,340..LHD DK.CHARCOAL,TRIM1# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-37170B0 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW GRAY,TRIM1# |
1 | ||
| 73210-37250B0 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW GRAY,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73210-37250B0 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW GRAY,TRIM1# |
1 | ||
| 73210-37170B0 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-25030B2 |
BU303,343,WU300,340,XZU300,320,330,340..LHD GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-25030B2 |
BU303,343,WU300,340,XZU300,320,330,340..LHD GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-37110B0 |
BU303,343,XZU300,320,330,340..LHD DK.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-11036 | ||||
| 90109-11048 | ||||
| Linked diagrams | ||||
| 7151 | ||||
(7708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90950-01126 | ||||
(7708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
