XZU330L-TKMSWR3 (2002)
Toyota Dyna
Production
Dec 2002
-
Oct 2006
Engine
15BFTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9907- )

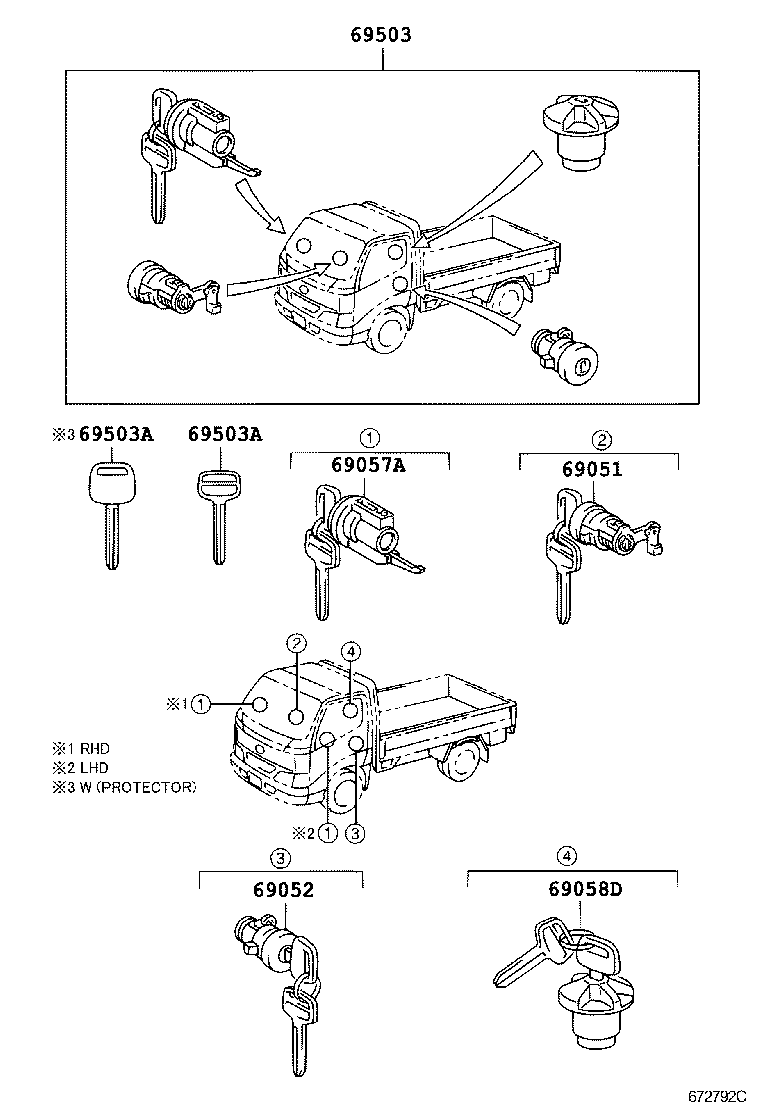

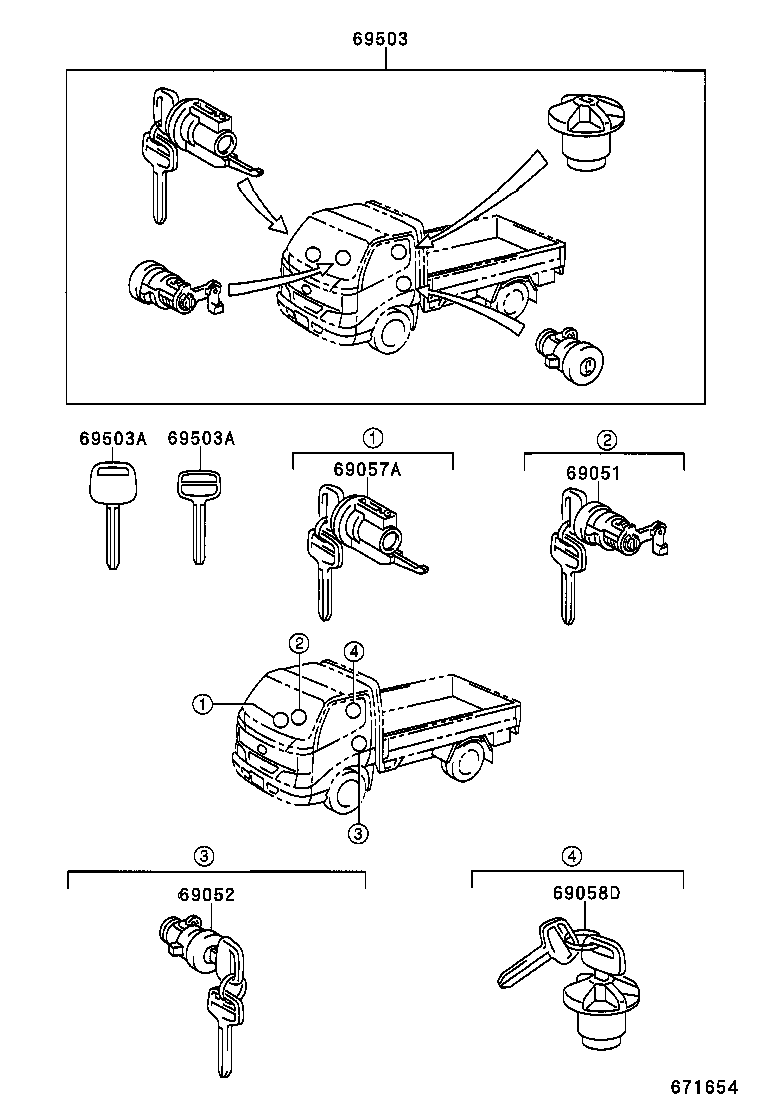

Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
(0209- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-37070 |
XZU300,320,330,340 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-37110 |
XZU300,320,330,340 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-37080 |
XZU300,320,330,340 |
1 | ||
| 69058D - CYLINDER & KEY SET, FUEL TANK FILLER | ||||
| 69058-37010 |
XZU300,320,330,340 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-37060 |
XZU300,320,330,340 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00185 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW MASTER KEY,W(*68) |
1 | ||
| 90999-00186 |
XZU300,320,330,340 MASTER KEY |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00185 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW MASTER KEY,W(*68) |
1 | ||
| 90999-00186 |
XZU300,320,330,340 MASTER KEY |
1 | ||
