XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )

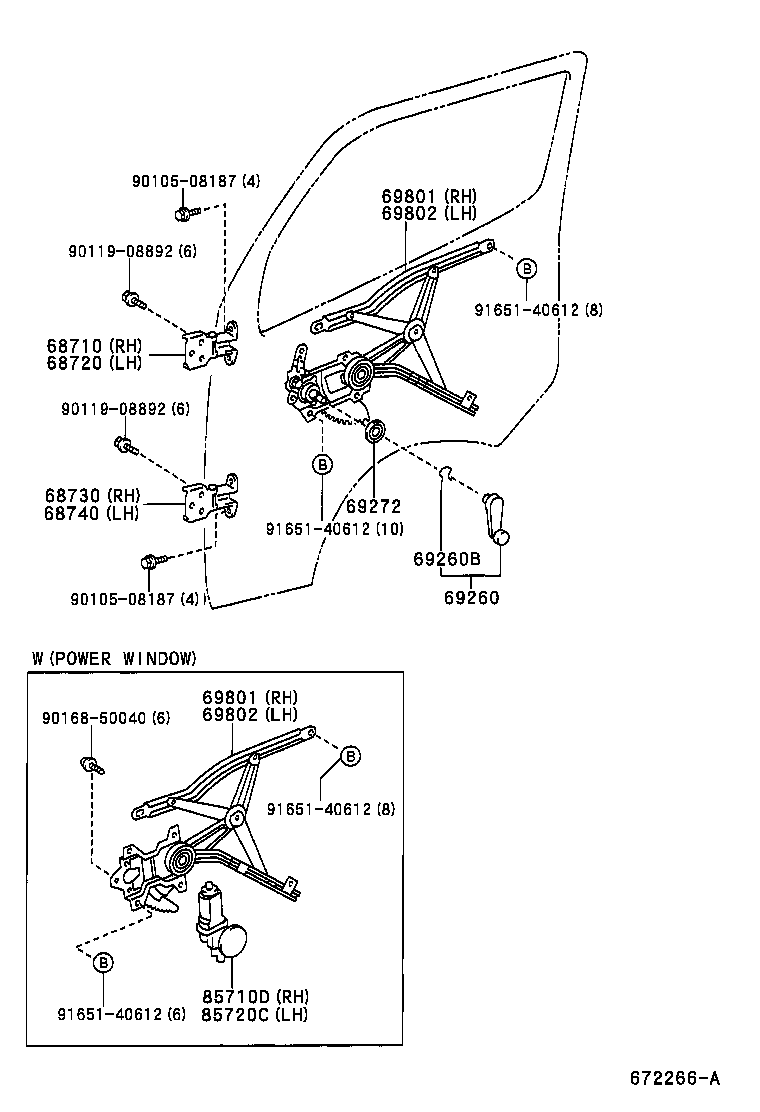

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 85710D 85720C 9010508187 9010508187 9011908892 9011908892 9016850040 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
Common parts
90105-08187
90119-08892
90168-50040
91651-40612

(0209- )

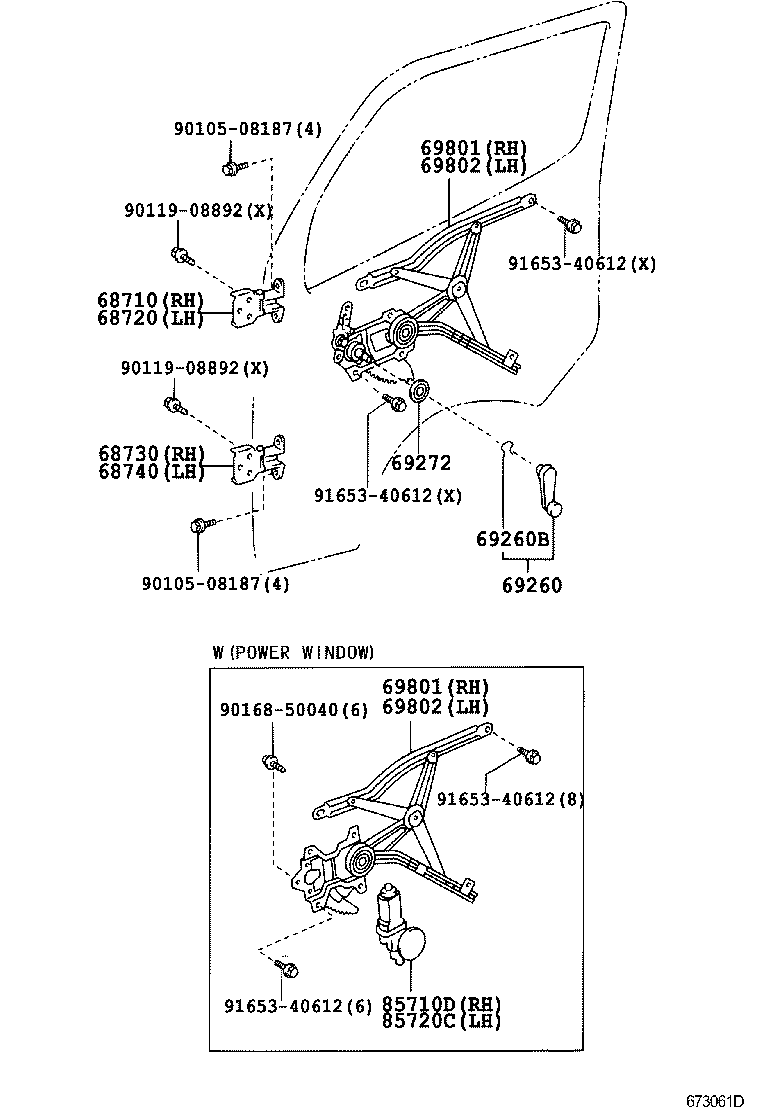

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 85710D 85720C 9010508187 9010508187 9011908892 9011908892 9016850040 9165340612 9165340612 9165340612 9165340612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-37020

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68730-37010

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-37010

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-37020

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-37030

XZU30#,320,330,340,345

W(POWER WINDOW)

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-37030

XZU30#,320,330,340,345

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-37030

XZU30#,320,330,340,345

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-37030

XZU30#,320,330,340,345

W(POWER WINDOW)

 1
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-37040

XZU30#,320,330,340,345

 1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-37050

XZU30#,320,330,340,345

 1
Common parts
90105-08187
90119-08892
90168-50040
91653-40612

(7708- )

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69260B 69266A 69801 69802 69901 69902 9011908118 9011908118 9011908246 9011908246 9152140610 9152140610
Part # Description Qty Price
Common parts
90119-08118
90119-08246
91521-40610
