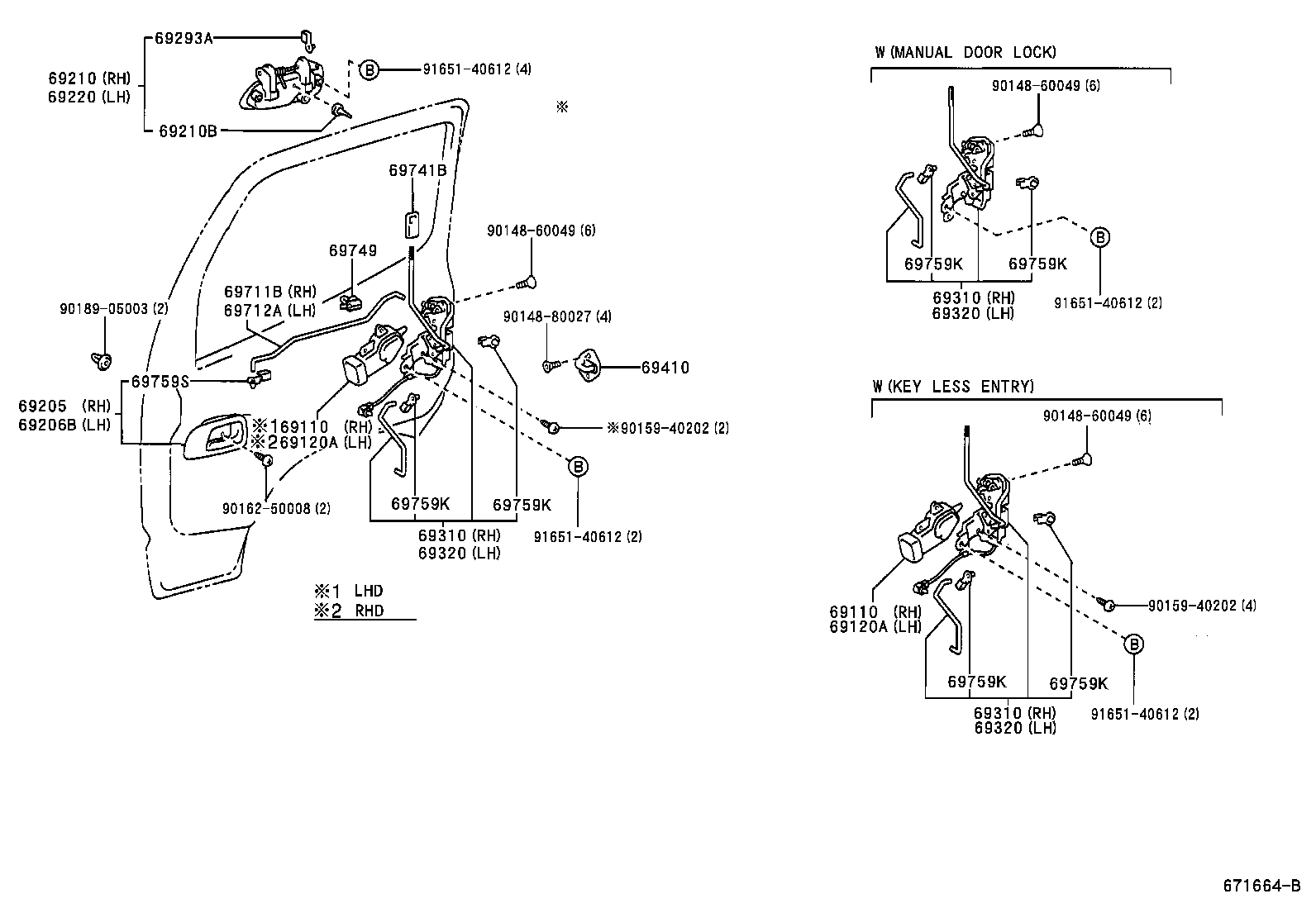

XZU330L-TKMSWR3 (2002)
Toyota Dyna
(9907- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90148-60049 | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90162-50008 | ||||
| 90189-05003 | ||||
| 91651-40612 | ||||

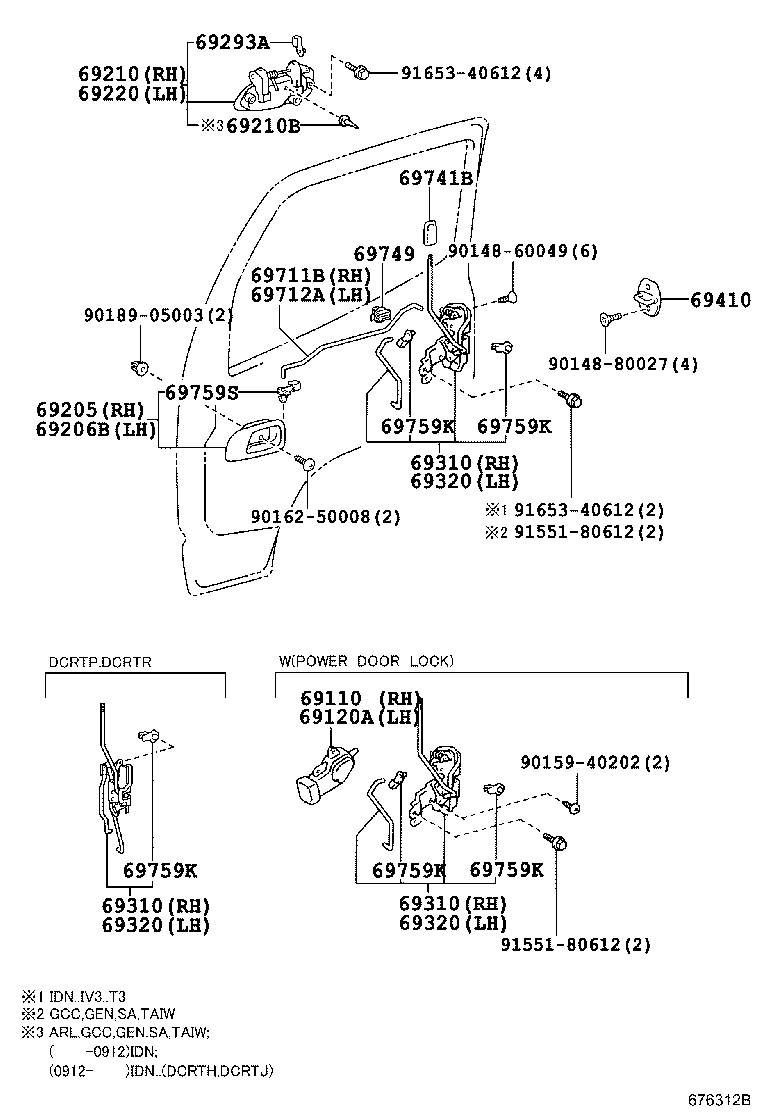

(0209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH | ||||
| 69110-37060 |
BU303,WU300,XZU300,320,330,340..LHD..WT..IV3 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-37010B0 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW MD.CHARCOAL,TRIM1# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-37010B0 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW MD.CHARCOAL,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW NO PAINT REQ. |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04015 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW NO PAINT REQ. |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12050 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW RH |
1 | ||
| 69293-12060 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW LH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-37070 |
XZU300,320,330,340 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-37070 |
XZU300,320,330,340 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-37070 |
XZU300,320,330,340 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-37080 |
XZU300,320,330,340 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-37080 |
XZU300,320,330,340 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-37080 |
XZU300,320,330,340 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-20110 |
XZU300,320,330,340 |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-12040B3 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW MD.CHARCOAL,TRIM1# |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-12070 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-24010 |
XZU300,320,330,340 NATURAL |
1 | ||
| 69759-24020 |
XZU300,320,330,340 BLUE |
1 | ||
| 69759-20040 |
XZU300,320,330,340 YELLOW |
1 | ||
| 69759-20050 |
XZU300,320,330,340 BROWN |
1 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-24010 |
XZU300,320,330,340 NATURAL |
1 | ||
| 69759-24020 |
XZU300,320,330,340 BLUE |
1 | ||
| 69759-20040 |
XZU300,320,330,340 YELLOW |
1 | ||
| 69759-20050 |
XZU300,320,330,340 BROWN |
1 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-24010 |
XZU300,320,330,340 NATURAL |
1 | ||
| 69759-24020 |
XZU300,320,330,340 BLUE |
1 | ||
| 69759-20040 |
XZU300,320,330,340 YELLOW |
1 | ||
| 69759-20050 |
XZU300,320,330,340 BROWN |
1 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-24010 |
XZU300,320,330,340 NATURAL |
1 | ||
| 69759-24020 |
XZU300,320,330,340 BLUE |
1 | ||
| 69759-20040 |
XZU300,320,330,340 YELLOW |
1 | ||
| 69759-20050 |
XZU300,320,330,340 BROWN |
1 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-24010 |
XZU300,320,330,340 NATURAL |
1 | ||
| 69759-24020 |
XZU300,320,330,340 BLUE |
1 | ||
| 69759-20040 |
XZU300,320,330,340 YELLOW |
1 | ||
| 69759-20050 |
XZU300,320,330,340 BROWN |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-22040 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW LH |
1 | ||
| 69759-22050 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW RH |
1 | ||
| Common parts | ||||
| 90148-60049 | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90162-50008 | ||||
| 90189-05003 | ||||
| 91551-80612 | ||||
| 91653-40612 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-80001 | ||||
| 90179-06070 | ||||
| 90189-06018 | ||||
| 93330-16016 | ||||
| 93530-54010 | ||||
| 93590-16014 | ||||
