XZU330L-TKMSWR3 (2002)
Toyota Dyna
ILLUST NO. 2 OF 3(9907- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67499-37010 | ||||
| 67771-12050 | ||||
| 90333-25001 | ||||
| 90333-35004 | ||||
| 90467-06084 | ||||
| 91631-G0618 | ||||
| 91651-40612 | ||||

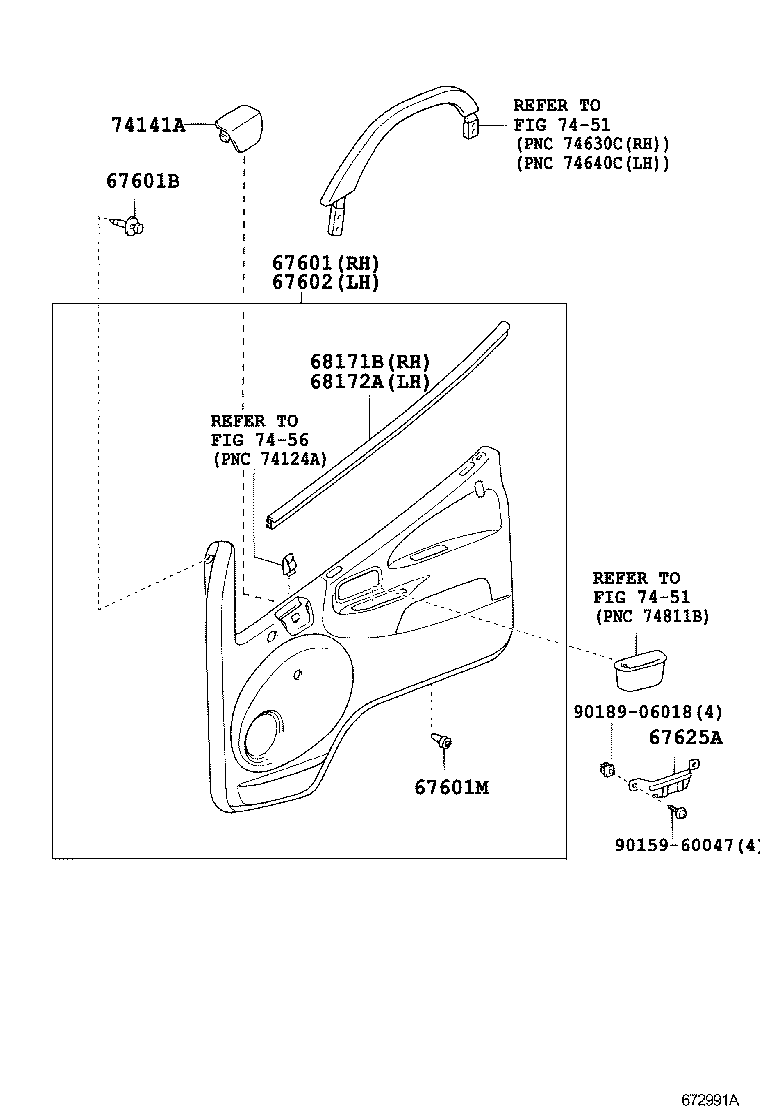

ILLUST NO. 2 OF 3(0212- )ARL,GCC,GEN,SA,TAIW
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-37090B0 |
XZU300,320,330,340 W(POWER WINDOW),MD.CHARCOAL,TRIM1# |
1 | ||
| 67610-37130B0 |
XZU30#,320,330,340,345 W(POWER WINDOW) & W/O(ASH RECEPTACLE),MD.CHARCOAL,TRIM1# |
1 | ||
| 67610-37090B4 |
BU303,WU300,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)..IV3 W(POWER WINDOW),MD.CHARCOAL,TRIM1# |
1 | ||
| 67610-37090B5 |
BU303,WU300,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)..IV3 W(POWER WINDOW),MD.CHARCOAL,TRIM11 |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07071B6 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW MD.CHARCOAL,TRIM1# |
2 | ||
| 67601M - RETAINER, DOOR TRIM, NO.2 | ||||
| 90467-10188 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
16 | ||
| 67771-12050 |
BU30#,34#,WU300,340,XZU300,320,330,340..ARL,GCC,GEN,SA,TAIW |
16 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-37140B0 |
XZU300,320,330,340 W(POWER WINDOW),MD.CHARCOAL,TRIM1# |
1 | ||
| 67620-37180B0 |
XZU30#,320,330,340,345 MD. CHARCOAL,TRIM1# |
1 | ||
| 67620-37140B4 |
BU303,WU300,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)..IV3 MD.CHARCOAL,TRIM11 |
1 | ||
| 67620-37140B5 |
BU303,WU300,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)..IV3 W(POWER WINDOW),MD.CHARCOAL,TRIM11 |
1 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-26010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-37011 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 68171-37010 |
BU30#,34#,WU300,340,XZU300,320,330,340..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-37011 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 68172-37010 |
BU30#,34#,WU300,340,XZU300,320,330,340..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 74141A - GARNISH, FRONT ASH RECEPTACLE, NO.1 | ||||
| 74141-25010B0 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW MD.CHARCOAL,TRIM1# |
2 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||

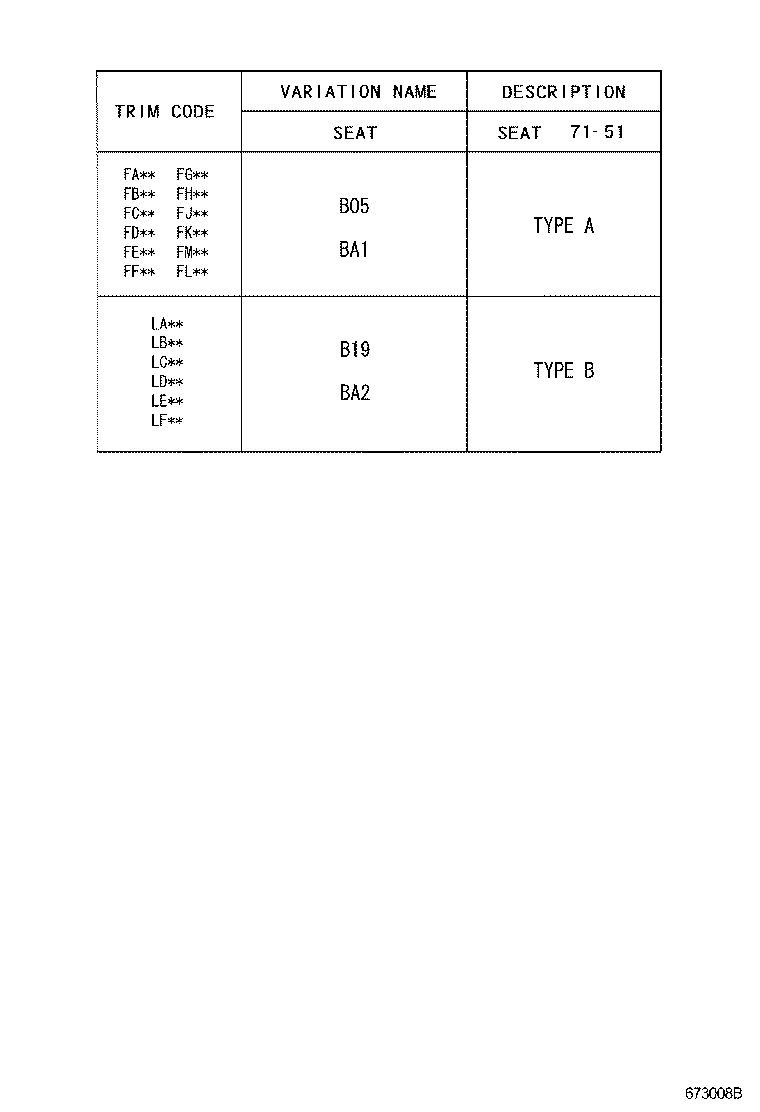

ILLUST NO. 3 OF 3(0212- )ARL,GCC,GEN,SA,TAIW
TRIM CODE TABLE
| Part # | Description | Qty | Price |
|---|

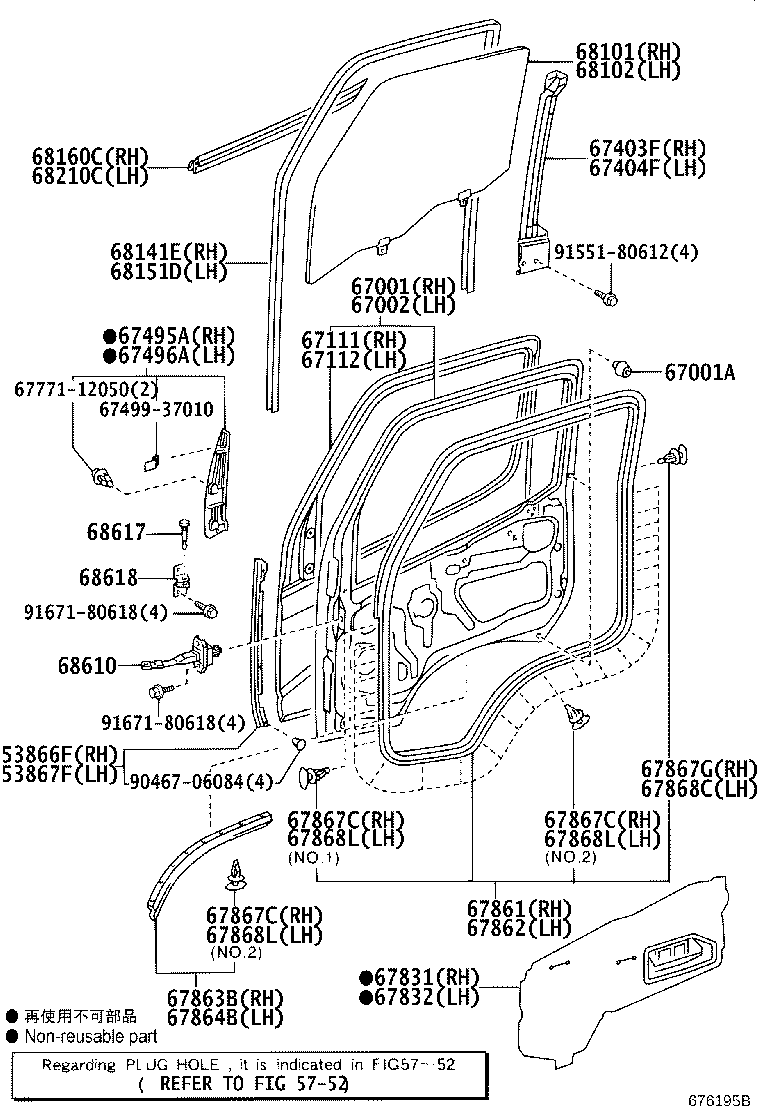

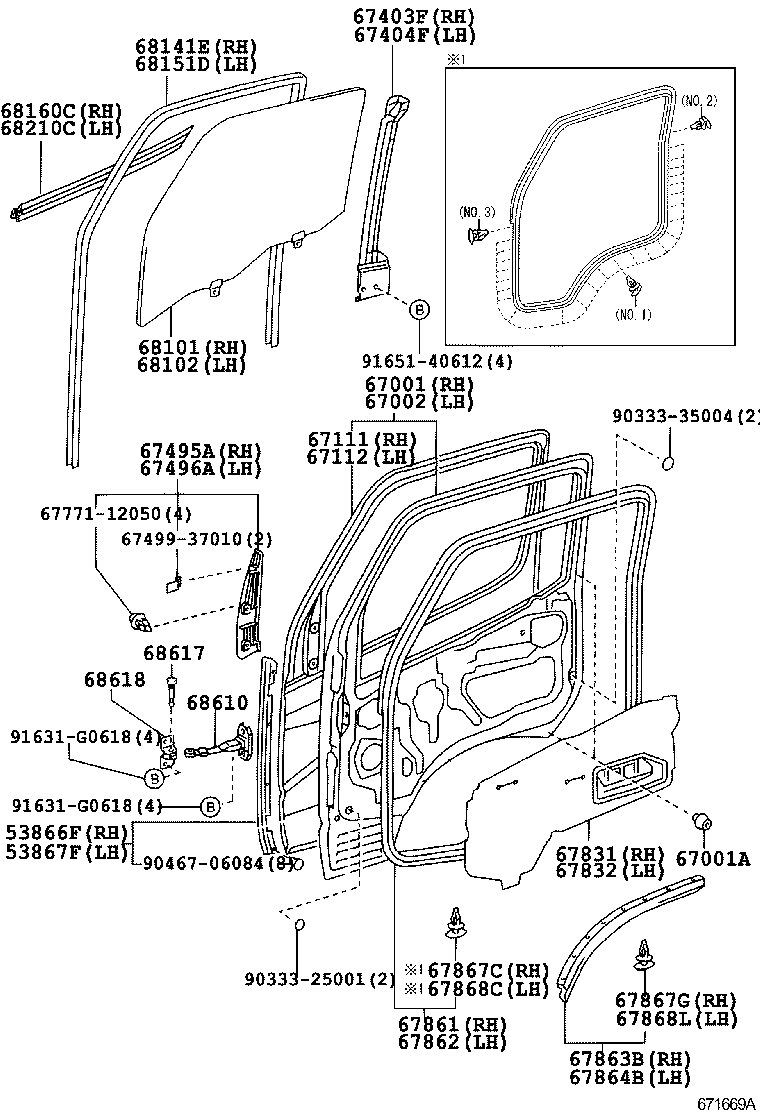

ILLUST NO. 1 OF 3(0212- )ARL,GCC,GEN,SA,TAIW
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53866F - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-37040 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 53867F - SEAL, FR FENDER TO COWL SIDE, LH | ||||
| 53867-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-37091 |
XZU330,340..80T |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09031 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-37101 |
XZU330,340..80T |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-37081 |
XZU330,340..80T |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-37091 |
XZU330,340..80T |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-37020 |
XZU300,320,330,340 |
1 | ||
| 67831-37040 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 67831-37010 |
XZU300,320,330,340 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-37020 |
XZU300,320,330,340 |
1 | ||
| 67832-37010 |
XZU300,320,330,340 |
1 | ||
| 67832-37050 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-37021 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 67861-37020 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-37020 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW |
1 | ||
| 67862-37021 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-89103 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW NO.1 |
1 | ||
| 67867-12150 |
XZU330,340..80T NO.2 |
26 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-89103 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW NO.1 |
1 | ||
| 67867-12150 |
XZU330,340..80T NO.2 |
26 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-89103 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW NO.1 |
1 | ||
| 67867-12150 |
XZU330,340..80T NO.2 |
26 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
XZU330,340..80T NO.2 |
26 | ||
| 67867-89103 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW NO.1 |
1 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
XZU330,340..80T NO.2 |
26 | ||
| 67867-89103 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW NO.1 |
1 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
XZU330,340..80T NO.2 |
26 | ||
| 67867-89103 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW NO.1 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-37130 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW *TT,T=3.5,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-37140 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW *TT,T=3.5,GREEN |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-37011 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 68161-37010 |
BU30#,34#,WU300,340,XZU300,320,330,340..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-37010 |
BU30#,34#,WU300,340,XZU300,320,330,340..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 68162-37011 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-90K00 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 68618 - BRACKET, FRONT DOOR CHECK ARM, RH | ||||
| 68618-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| Common parts | ||||
| 67499-37010 | ||||
| 67771-12050 | ||||
| 90467-06084 | ||||
| 91551-80612 | ||||
| 91671-80618 | ||||
| Linked diagrams | ||||
| 5752 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67771-20022 | ||||
| 67772-22010 | ||||
| 90119-06060 | ||||
| 90168-40025 | ||||
| 90950-06001 | ||||
| 91521-40610 | ||||
| 91661-40614 | ||||
| 93510-16020 | ||||
