XZU330L-TKMSWR3 (2002)
Toyota Dyna
Production
Dec 2002
-
Oct 2006
Engine
15BFTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0212- )ARL,GCC,GEN,SA,TAIW

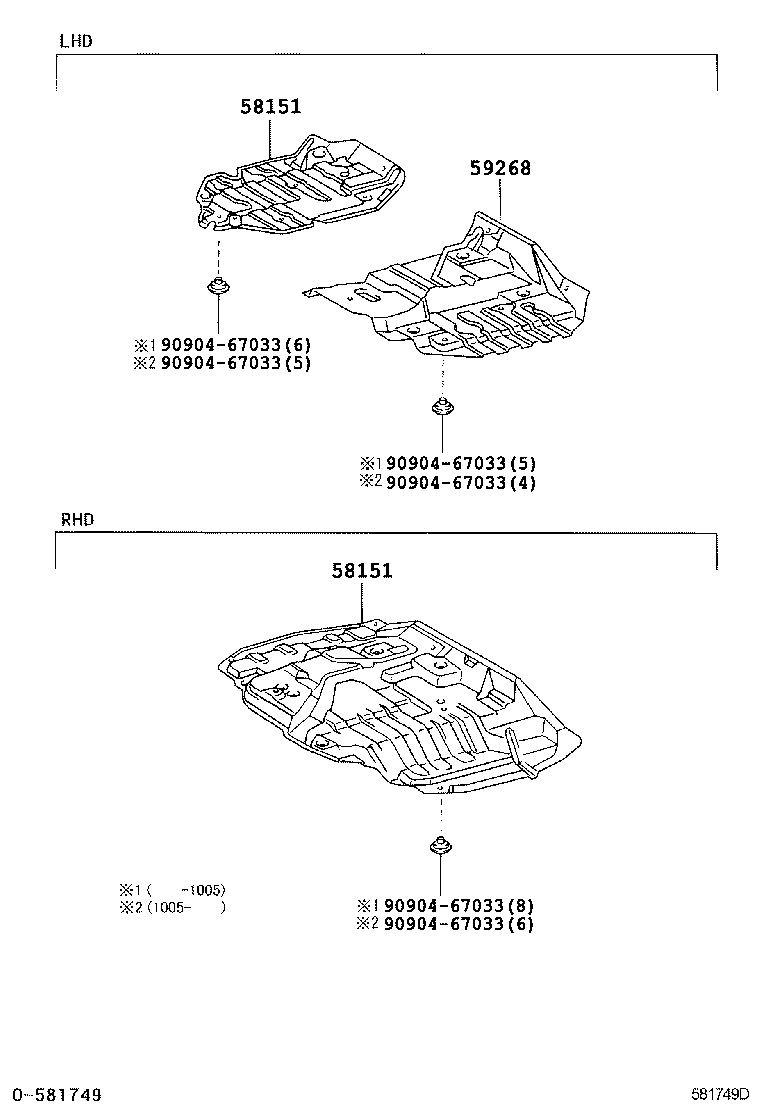

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-37021 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58151-37022 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-37021 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58151-37022 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 59268 - INSULATOR, ENGINE SUB COVER | ||||
| 59268-37052 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 59268-37051 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| Common parts | ||||
| 90904-67033 | ||||
(7708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
